- Network Type
-
-
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
-
- Wi-Fi Class
-
-
AC1200
-
- Wi-Fi (2.4 GHz)
-
-
300 Mbps
-
- Wi-Fi ( 5 GHz)
-
-
867 Mbps
-
- Wireless Standards (Invaild)
-
-
IEEE 802.11ac/a/b/g/n
-
- Frequency
-
-
5 GHz, 2.4 GHz
-
- Reception Sensitivity
-
-
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
-
- Transmission Power
-
-
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
-
- Wireless Security
-
-
WPA-PSK / WPA2-PSK / WPA3-SAE
-
- Wireless Functions
-
-
smart connect
WPS
Wireless Schedule
- Others
- Package Contents
-
-
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB235-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
-
- Environment
-
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
- Software
- Operation Mode
-
-
3G/4G Router
Wireless Router
-
- Cellular Mode
-
-
4G Mode
3G Mode
-
- Cellular APN
-
-
Data Roaming
Band Search
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management
-
- WAN Mode
-
-
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
-
- NAT Forwarding
-
-
ALG
Virtual Server
Port Triggering
UPnP
DMZ
-
- Protocols
-
-
IPv4, IPv6
-
- Data Settings
-
-
Data Statistics
Data Limit
-
- Parental Controls
-
-
Time Control
Website Filtering
-
- Guest Network
-
-
2.4 GHz Guest Network
5 GHz Guest Network
-
- DHCP
-
-
Server
DHCP Client List
Address Reservation
-
- DDNS
-
-
MERCUSYS DDNS
DynDns
NO-IP
-
- SMS
-
-
Inbox
New Message
Outbox
Drafts
-
- QoS
-
-
√
-
- Security
-
-
IPv4 SPI Firewall
Access Control
IP & MAC Binding
IPv6 Firewall
-
- System Settings
-
-
Time & Language
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings
-
- Device Management
-
-
MERCUSYS APP
Web GUI
-
- System Language
-
-
English
Deutsch
Espanol
Français
Italiano
Polski
???????
-
- TR-069
-
-
√
- Hardware
- Dimensions
-
-
209 × 171.9 × 41.7 mm
(8.2 × 6.8 × 1.6 in)
-

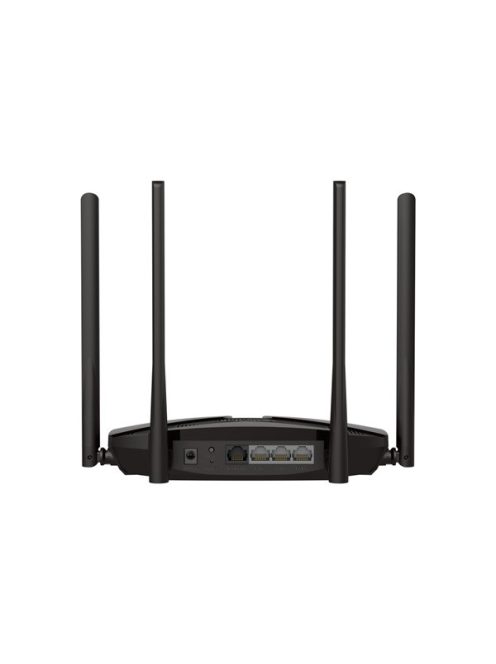

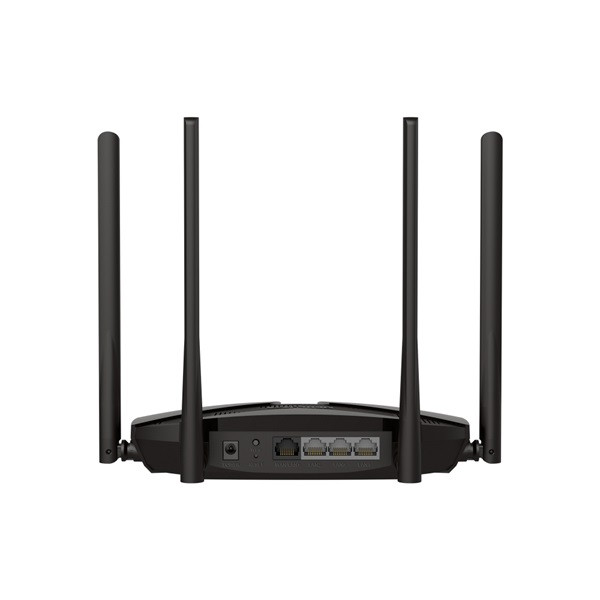

- Interfaces
-
-
1× Gigabit LAN/WAN Port
3× Gigabit LAN Ports
1× Nano SIM Card Slot
-
- Antenna
-
-
2× External Detachable 4G LTE Antennas,
2× External Wi-Fi Antennas
-
- Button
-
-
WPS, Reset Button
-
- External Power Supply
-
-
12V/1A
-
- LED
-
-
1× Power
1× Internet
1× LAN
3× Signal
-
- LTE Standard
-
-
Cat 6
300/50Mbps DL/UL
- Wireless
