Model
RT-BE50
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE3600 ultimate BE performance : 688+2882 Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
Processor
Quad-core processor
Memory
128 MB Flash
256 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4GHz / 5GHz
2.4 GHz
5 GHz
Operating Mode
Wireless router mode
Access point mode
Media bridge mode
Wireless Router Mode
AiMesh Node Mode
Range Extender Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

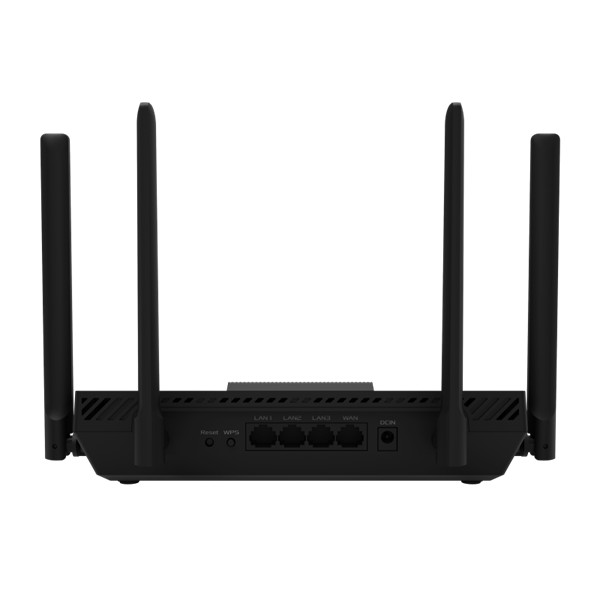

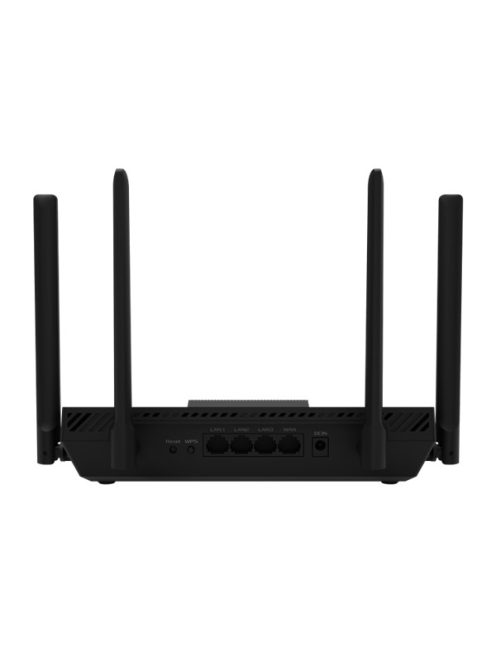

I/O Ports
1x 2.5G for WAN,
3x 1G for LAN,
Buttons
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 1.5 A current
Package Content
RT-BE50
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
450g
Product Dimensions
261 x 156 x 50 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Security
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
