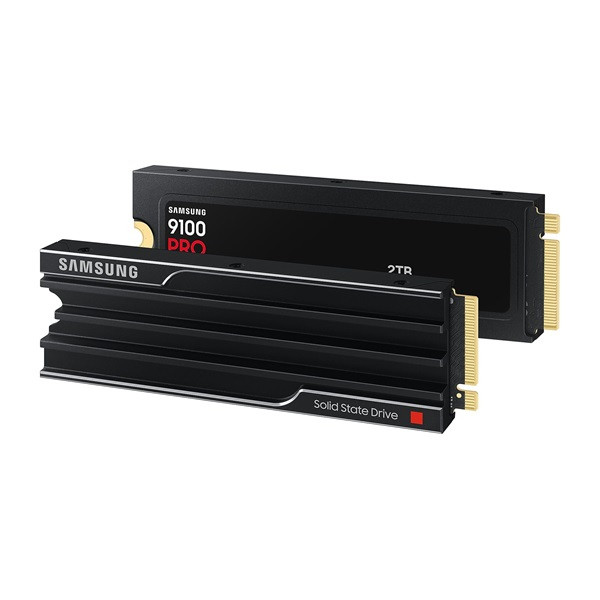

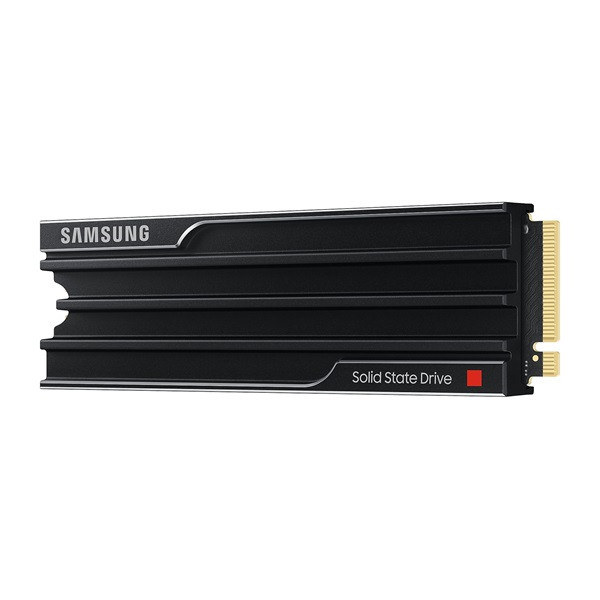

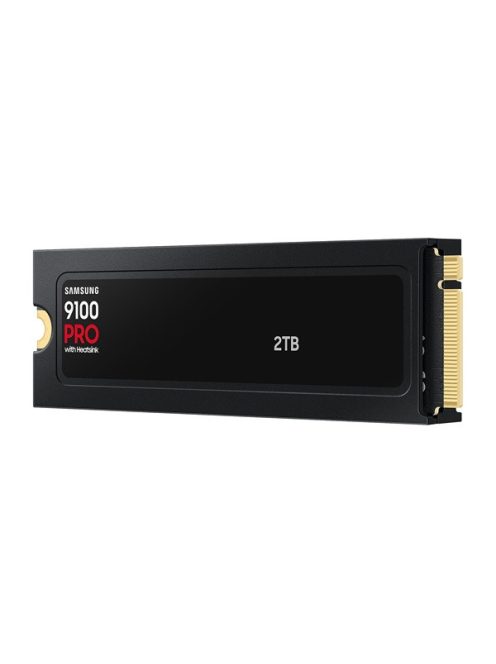

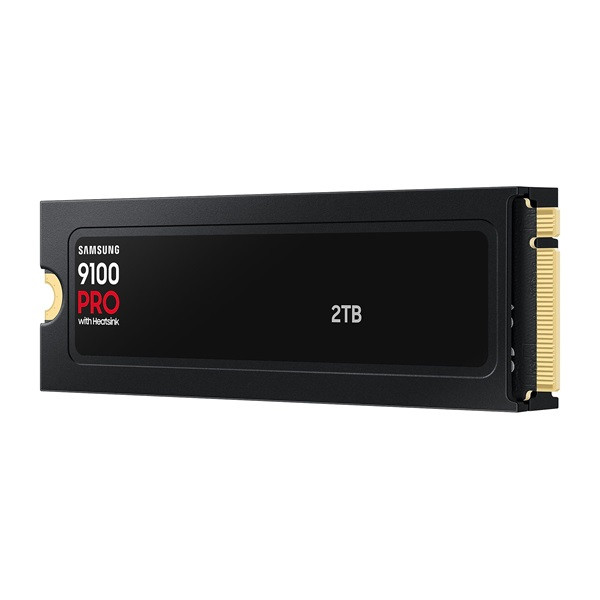

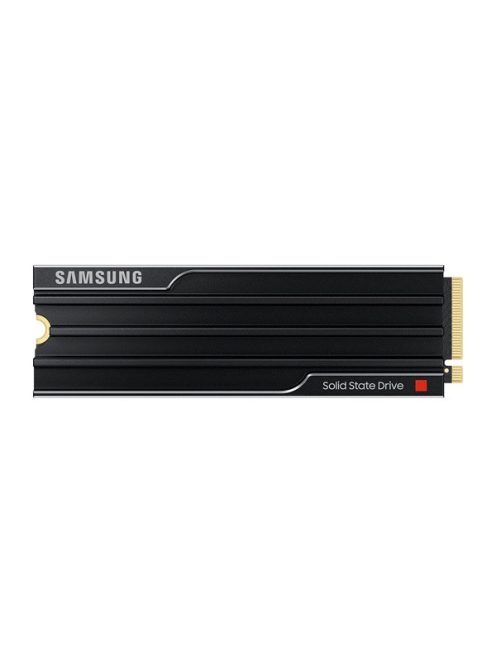

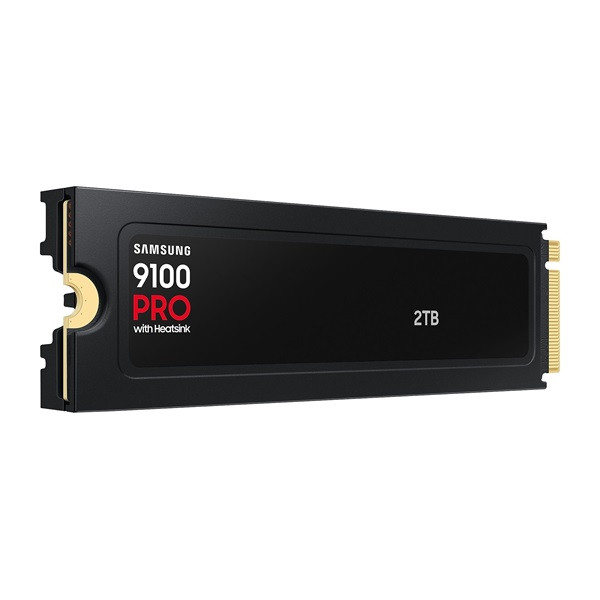

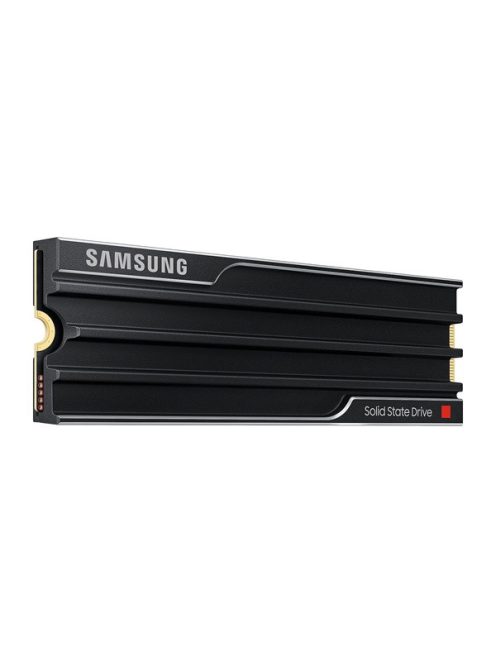

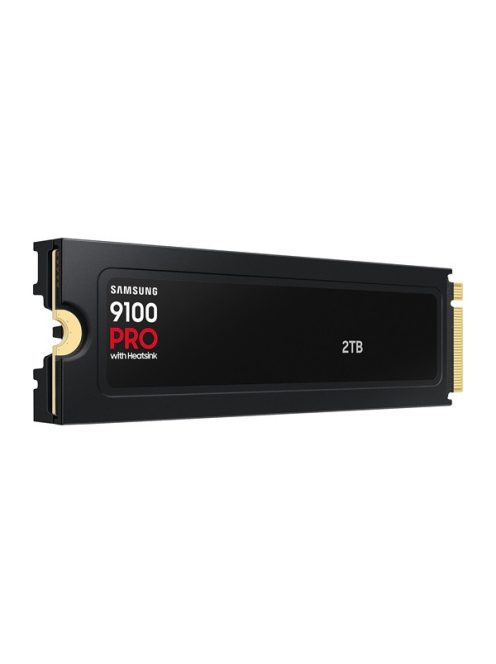

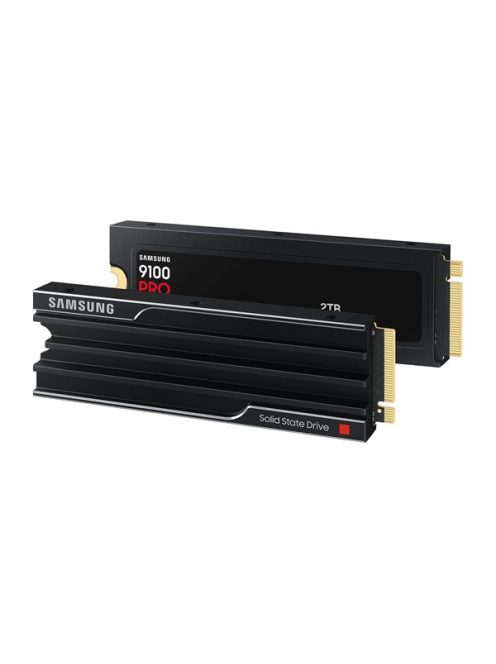

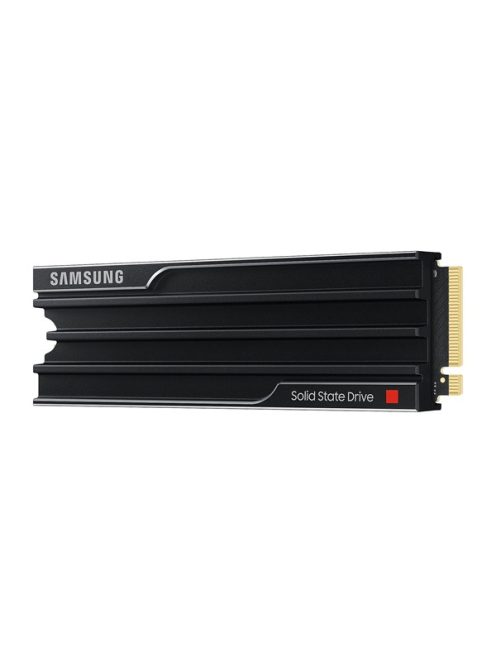

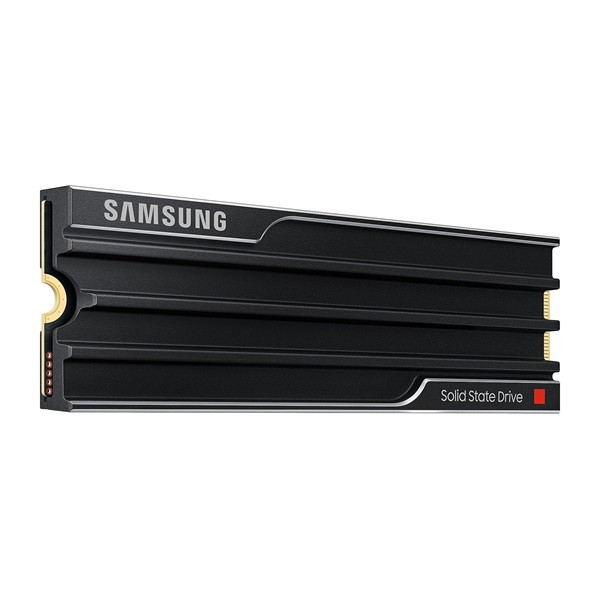

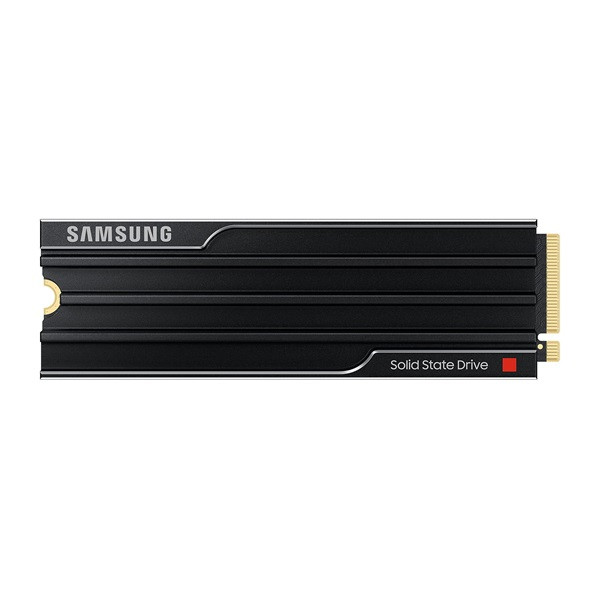

| 9100 PRO with Heatsink, PCIe 5.0, NVMe M.2 SSD |
| MZ-VAP2T0CW |
| |
| |
| Specifications |
| |
| General Feature |
| |
- Application: Client PCs, Game Consoles
-
Capacity: 2,000GB (1GB=1 Billion byte by IDEMA)
* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor: M.2 (2280)
-
Interface: PCIe® 5.0 x4, NVMe™ 2.0
-
Dimension (WxHxD): Max 80.15 x Max 25 x Max 8.88mm (with Heatsink)
-
Weight: Max 30.0g Weight
-
Storage Memory: Samsung V-NAND TLC
-
Controller: Samsung in-house Controller
-
Cache Memory: Samsung 2GB Low Power DDR4X SDRAM
|
| |
| |
| Special Feature |
| |
- TRIM Support: Supported
-
S.M.A.R.T Support: Supported
-
GC (Garbage Collection): Auto Garbage Collection Algorithm
-
Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
-
WWN Support: Not supported
-
Device Sleep Mode Support: Yes
. |
| |
| |
| Performance |
| |
- Sequential Read: Up to 14,700 MB/s
* Performance may vary based on system hardware & configuration
-
Sequential Write: Up to 13,400 MB/s
* Performance may vary based on system hardware & configuration
-
Random Read (4 KB, QD32): Up to 1,850,000 IOPS
* Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32): Up to 2,600,000 IOPS
* Performance may vary based on system hardware & configuration
|
| |
| |
| Environment |
| |
- Average Power Consumption (system level): Average: Read 8.1 W / Write 7.9 W*
* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle): Typical 4.8 mW
* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Device Sleep): Typical 4 mW
* Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage: 3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
-
Operating Temperature: 0 - 70 °C Operating Temperature
-
Shock: 1,500 G & 0.5 ms (Half sine)
. |
| |
| |
| Accessories |
| |
- Installation Kit: Not Available
. |
| |
| |
| Software |
| |
- Management SW: Magician Software for SSD management
. |
| |
| |
| Warranty |
| |
- 5-Year Limited Warranty or 1.200 TBW Limited Warranty
. |
| |
