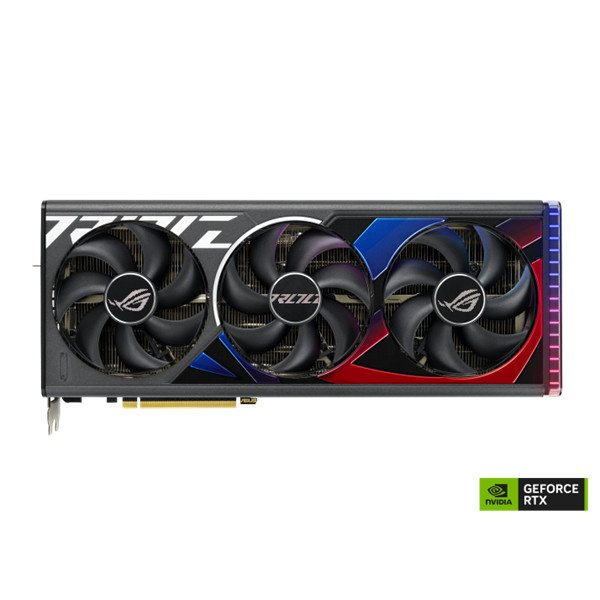

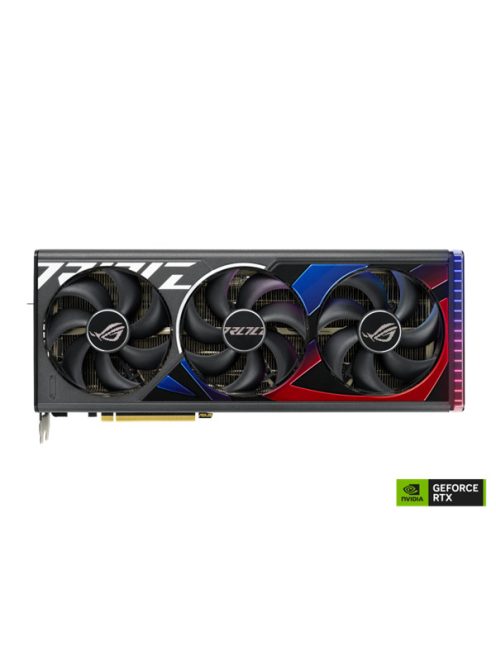

ROG Strix GeForce RTX™ 4090 OC Edition 24GB GDDR6X
Graphic Engine
NVIDIA® GeForce RTX™ 4090
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
24GB GDDR6X
Engine Clock
OC mode: 2640 MHz Default mode: 2610 MHz (Boost Clock)
CUDA Core
16384
Memory Speed
21 Gbps
Memory Interface
384-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Collection Card? 1 x Speedsetup Manual? 1 x Adapter Cable? 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you Card
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
357.6 x 149.3 x 70.1mm
Recommended PSU
1000W
Power Connectors
1 x 16-pin
Slot
3.5 Slot
AURA SYNC
ARGB
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
