- Wireless Standards
-
-
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
-
- WiFi Speeds
-
-
1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
-
- Reception Sensitivity
-
-
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm
-
- Transmission Power
-
-
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
-
- Wireless Security
-
-
WPA-PSK / WPA2-PSK/ WPA3 wireless encryption
-
- Wireless Functions
-
-
Enable/Disable Wireless Radio, WMM
- WAN Type
-
-
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
-
- Management
-
-
Access Control
Local Management
Remote Management
-
- DHCP
-
-
Server, DHCP Client List
-
- NAT Forwarding
-
-
Port Forwarding, Port Triggering, UPnP, DMZ
-
- Firewall Security
-
-
SPI Firewall, IP and MAC Address Binding
-
- Guest Network
-
-
2.4 GHz Guest Network, 5 GHz Guest Network
-
- VPN Passthrough
-
-
OpenVPN, PPTP supported
- Dimensions
-
-
8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm)
-

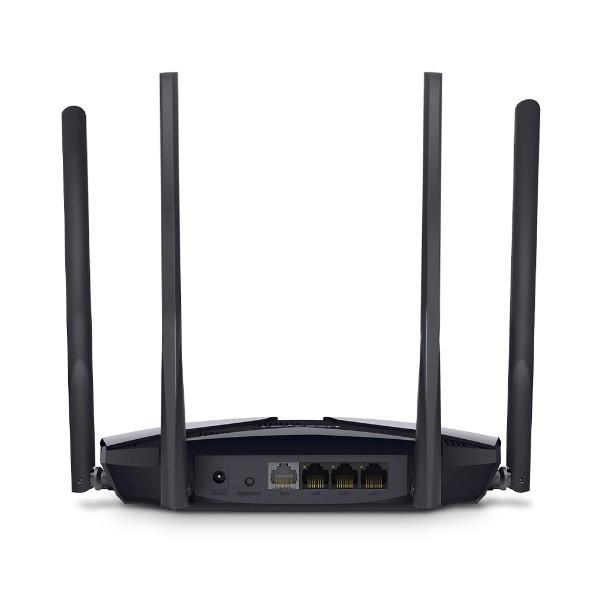

- Interfaces
-
-
1× Gigabit WAN Port + 3× Gigabit LAN Ports
-
- Button
-
-
Reset/WPS Button
-
- Antenna Type
-
-
4× 5 dBi Fixed Omni-Directional Antennas
- Package Contents
-
-
• AX1800 Wi-Fi 6 Router MR70X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
-
- Environment
-
-
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
