| Standards and Protocols |
IEEE 802.3, IEEE 802.3i, IEEE802.3u |
| Basic Function |
Auto-negotiation of half-duplex / full-duplex transfer mode
Full-duplex flow control (IEEE 802.3x)
Half-duplex flow control (Backpressure)
Extends fiber distance up to 20km (12.4 miles) |

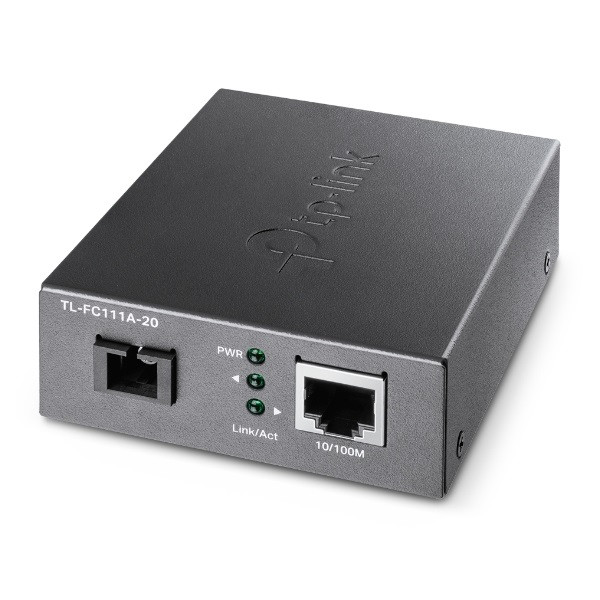

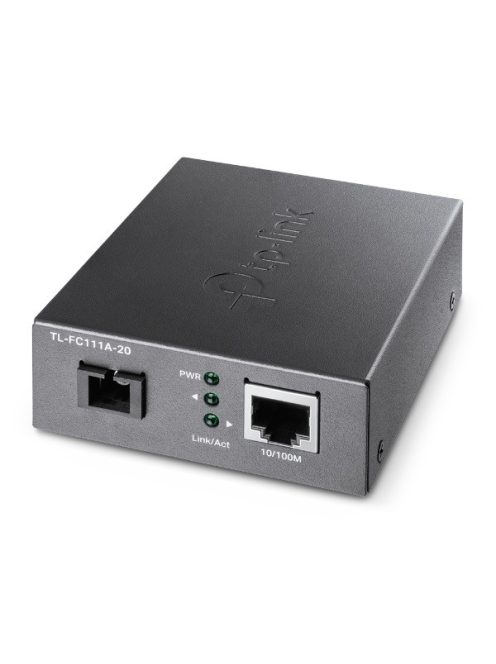

| Ports |
1x 100M single SC/UPC port
1x 10/100M RJ45 port (Auto MDI/MDIX) |
| WDM TX |
1550 nm |
| WDM RX |
1310 nm |
| Network Media 10BASE-T |
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T |
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX |
Single-mode fiber |
| LED Indicators |
PWR, Link/Act |
| Dimensions (W*D*H) |
3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm) |
| Power Supply |
External Power Adapter: 5 V/0.6 A |
| Safety & Emission |
FCC, CE, RoHS |
| Fiber Type |
9/125 μm single-mode fber (≤20 km) |
| Environment |
Operating Temperature: 0?~50? (32?~122?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
