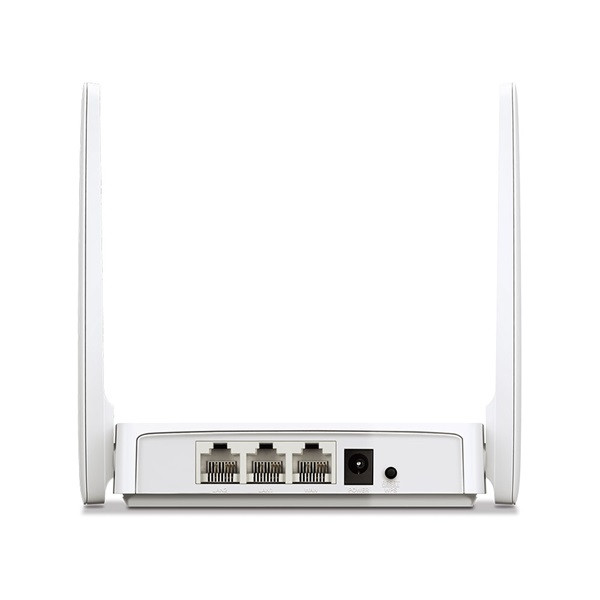

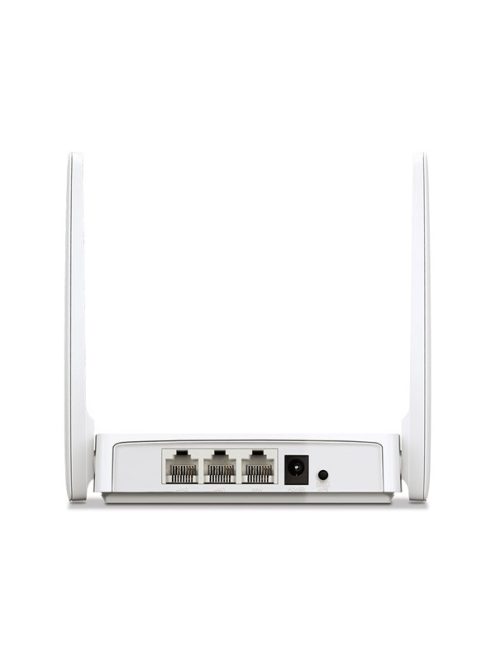

| Ethernet Ports |
1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports
|
| Button |
Reset/WPS Button
|
| External Power Supply |
9V/0.85A
|
| Dimensions (W X D X H) |
4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)
|
| Antenna Type |
4× 5 dBi Fixed Omni-Directional Antennas
|
| Wireless Standards |
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
|
| Frequency |
2.4 GHz, 5 GHz
|
| Signal Rate |
Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
|
| Transmission Power |
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
|
| Reception Sensitivity |
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
|
| Wireless Functions |
Enable/Disable Wireless Radio, WMM
|
| Wireless Security |
WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
|
