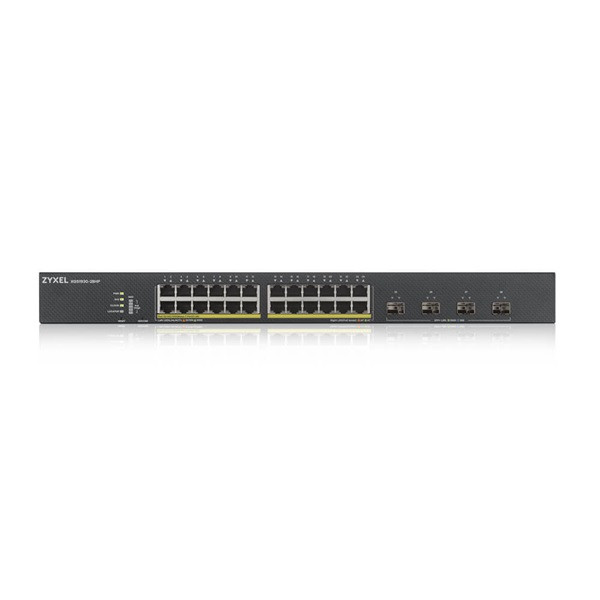

XGS1930-28HP
|
| Models |
|
| Product name |
24-port GbE Smart Managed PoE Switch with 4 SFP+ Uplink |
| Switch class |
Smart Managed |
| Port Density |
|
| Total port count |
28 |
| 100/1000 Mbps |
24 |
| Gigabit Combo (RJ-45/SFP) |
4 |
| PoE |
|
| PoE ports |
24 |
| Total PoE budget (Watts) |
375 |
| High power PoE 802.3at |
Yes |
| Performance |
|
| Switching capacity (Gbps) |
128 |
| Forwarding rate (Mpps) |
|
| Packet buffer (byte) |
1.5 M |
| MAC address table |
16 K |
| L3 forwarding table |
Max. 512 IPv4 entries; Max. 512 IPv6 entries |
| Routing table |
32 |
| IP interface (IPv4/IPv6) |
32/32 |
| Flash/RAM |
32 MB/512 MB |
| Power |
|
| Input |
100 to 240 V AC, 50/60 Hz |
| Max. power consumption (watt) |
471 |
| Physical Specifications |
|
| Item |
Dimensions (WxDxH)(mm/in.) |
| 441 x 330 x 44/17.36 x 12.99 x 1.73 |
| Weight (kg/lb.) |
| 4.6/10.14 |
| Included accessories |
Power cord |
| Rack mounting kit |
| Green Feature |
|
| Fanless |
- |
| Environmental Specifications |
|
| Operating |
Temperature 0°C to 50°C/32°F to 122°F |
| Humidity 10% to 90% (non-condensing) |
| Storage |
Temperature -40°C to 70°C/-40°F to 158°F |
| Humidity 10% to 90% (non-condensing) |
| MTBF (hr) |
1,369,432 |
| Heat dissipation (BTU/hr) |
1,606.11 |
| Acoustic noise @ 25°C (dBA) |
|
