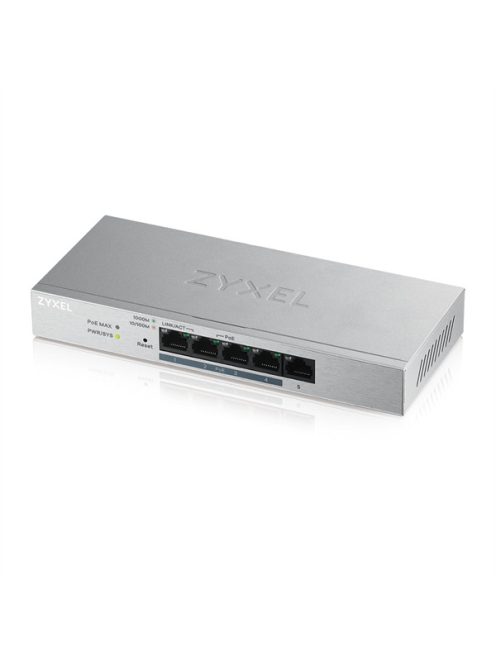

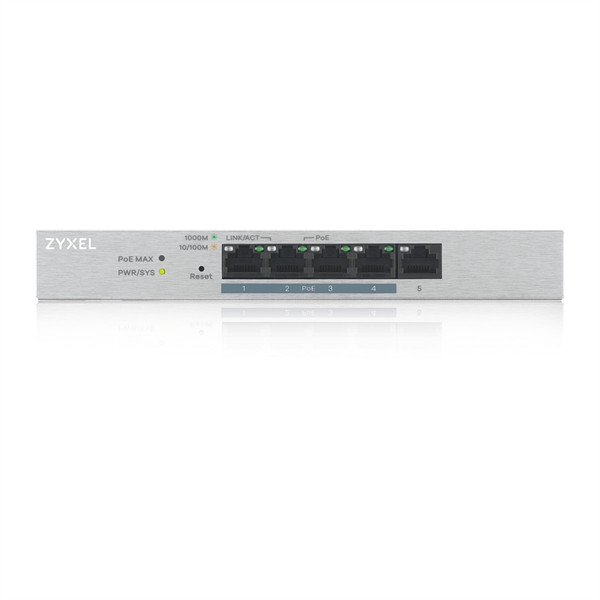

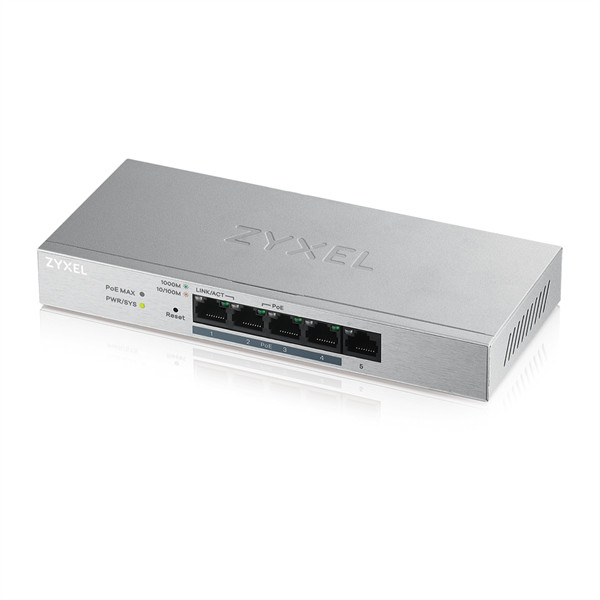

GS1200-5HP v2
|
| Description |
5-Port Web Managed PoE Gigabit Switch |
| Case |
Metal |
| Key Features |
|
| Auto MDI/MDI-X |
Yes |
| Store and Forward |
Yes |
| Full Duplex Capability |
Yes |
| Flow Control |
Yes |
| Hardware |
|
| 10/100 Mbps Ethernet Ports |
- |
| 10/100/1000 Mbps Ethernet Ports |
5 |
| 10/100/1000 Mbps Ethernet PoE+ Ports |
4 |
| Performance |
|
| Switching Capacity |
10 Gbps |
| MAC Address |
2K |
| Memory Buffer |
128 KB |
| Jumbo Frames |
Up to 9 KB |
| System Features |
|
| Web GUI |
Yes |
| 802.3x Flow Control |
Yes |
| DHCP Client |
Yes |
| 802.1Q VLAN |
Yes |
| WRR Priority QoS |
Yes |
| Port-based QoS |
Yes |
| 802.1p CoS |
Yes |
| Broadcast Storm Control |
Yes |
| Loop Detection /Prevention |
Yes |
| IGMP Snooping v1/v2/and v3 Compatitble |
Yes |
| Link Aggregation |
Yes |
| Port Mirroring |
Yes |
| Green Features |
|
| Fanless |
Yes |
| Power Saving by Detecting Link Status & Cable Length |
Yes |
| Power |
|
| Input voltage |

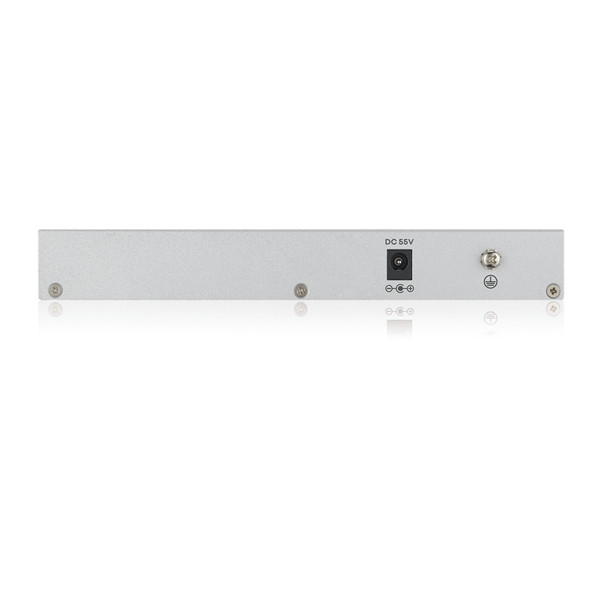

55 V/1.3 A |
| Power supply |
External |
| Maximum power consumption (watt) |
72 |
| PoE power budget (watt) |
60 |
| Physical Specifications |
|
| Item dimensions (WxDxH) |
193 x 84 x 26 mm |
| (7.6" x 3.3" x 1.0" ) |
| Item weight |
392g (0.86 lb.) |
| Packing dimensions (WxDxH) |
210 x 132 x 78 mm |
| (8.3" x 5.2" x 3.1") |
| Packing weight |
950g (2.10 lb.) |
| Environmental Specifications |
|
| Operating |
Temperature |
| 0°C to 40°C/32°F to 104°F |
| Humidity |
| 10% to 90% (non-condensing) |
| Storage |
Temperature |
| -40°C to 70°C/-40°F to 158°F |
| Humidity |
| 10% to 90% (non-condensing) |
