| Product name |

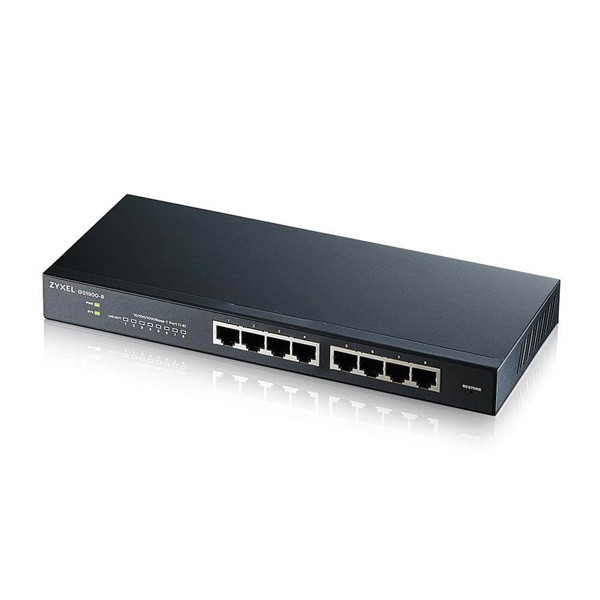

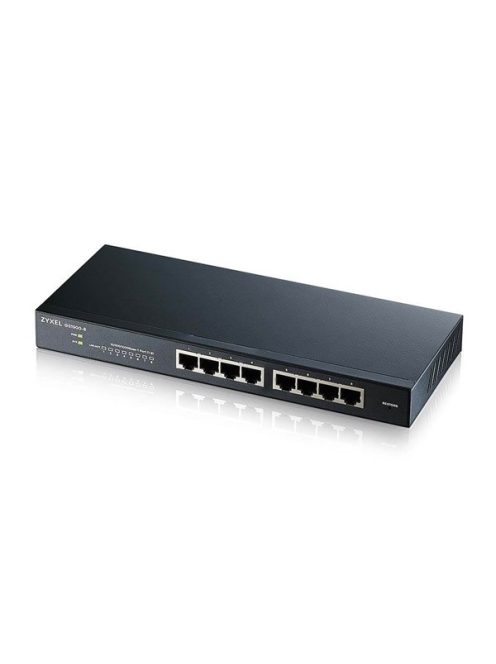

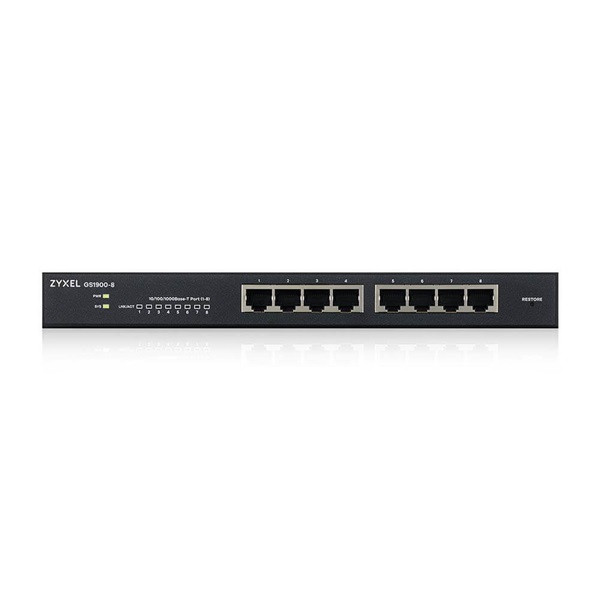

8-port GbE Smart Managed Switch |
8-port GbE Smart Managed PoE Switch |
8-port GbE Smart Managed PoE Switch with GbE Uplink |
16-port GbE Smart Managed Switch |
| Port Density |
| Total port count |
8 |
8 |
10 |
16 |
| 100/1000 Mbps |
8 |
8 |
8 |
16 |
| SFP 100/1000 Mbps |
- |
- |
2 |
- |
| PoE |
| 802.3at PoE ports |
- |
8 |
8 |
- |
| Total PoE budget (Watts) |
- |
77 |
77 |
- |
| Performance |
| Switching capacity (Gbps) |
16 |
16 |
20 |
32 |
| Forwarding rate (Mpps) |
11.9 |
11.9 |
14.88 |
23.8 |
| Packet buffer (byte) |
525 K |
525 K |
525 K |
525 K |
| MAC address table |
8 K |
8 K |
8 K |
8 K |
| Jumbo frame (byte) |
9 K |
9 K |
9 K |
9 K |
| Power |
| Input |
100 - 240 V AC, 50/60 Hz |
100 - 240 V AC, 50/60 Hz |
100 - 240 V AC, 50/60 Hz |
100 - 240 V AC, 50/60 Hz |
| Max. power consumption (watt) |
5.0 |
84.8 |
95.3 |
10.2 |
| Physical Specifications |
| Dimensions (WxDxH) (mm/in.) |
250 x 104 x 27/9.84 x 4.10 x 1.06 |
250 x 104 x 27/9.84 x 4.10 x 1.06 |
250 x 104 x 27/9.84 x 4.10 x 1.06 |
216 x 133 x 42/8.50 x 5.23 x 1.65 |
| Weight (kg/lb.) |
0.65/1.43 |
0.71/1.57 |
0.72/1.59 |
0.97/2.13 |
| Environmental Specifications |
| Acoustic noise (min/max, dBA) |
0 |
