| Model |
| Product name |

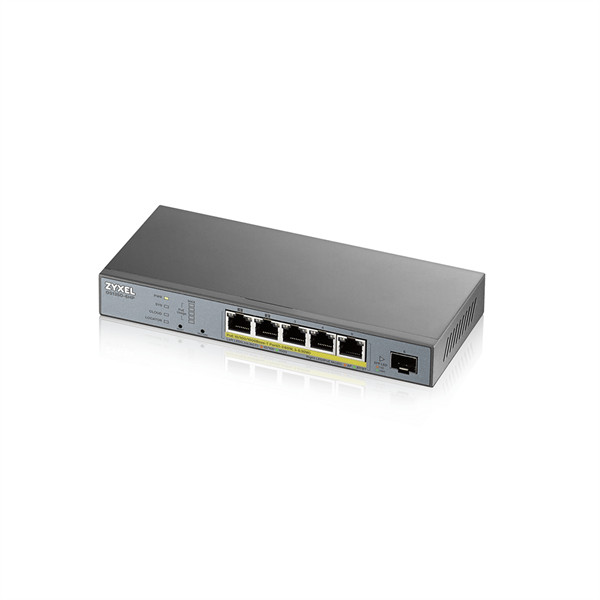

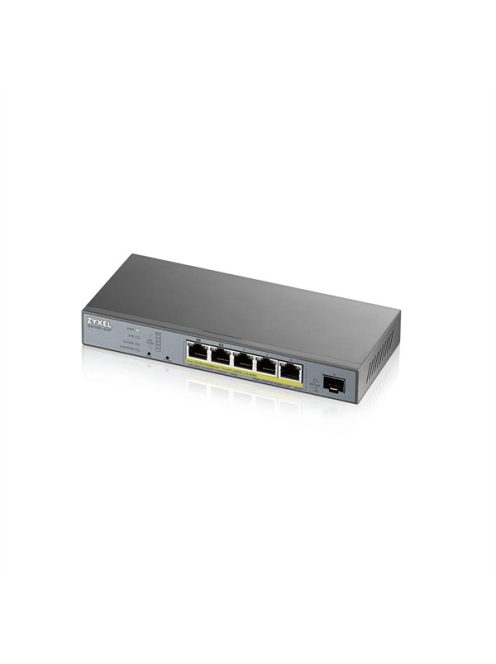

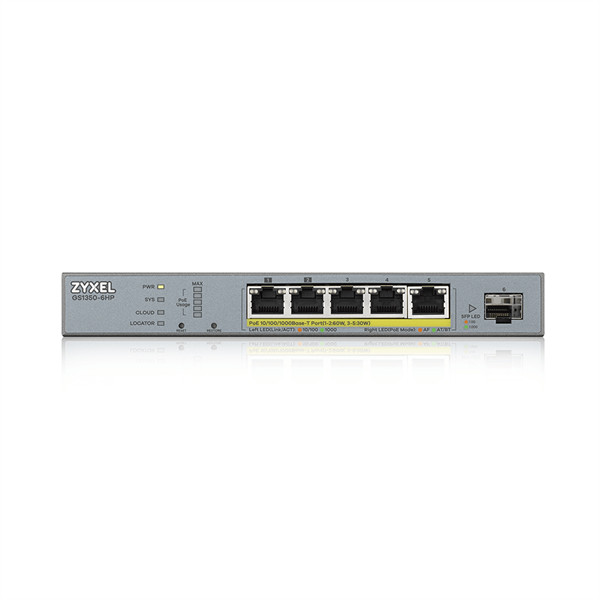

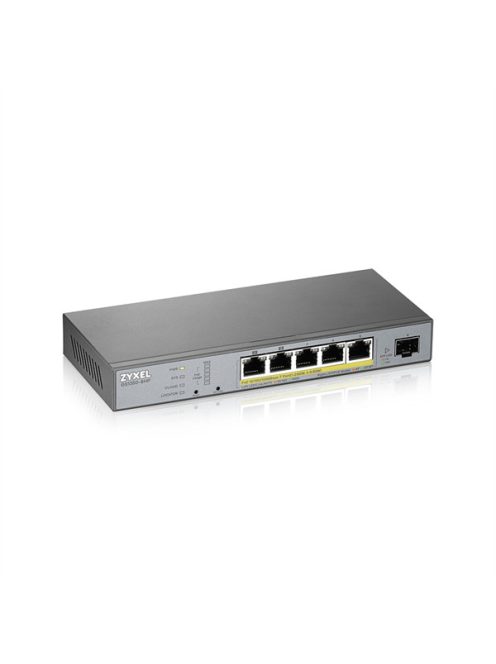

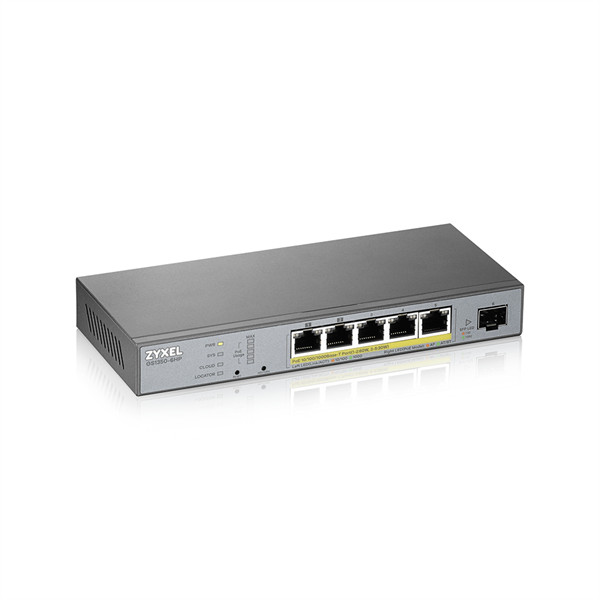

5-port GbE Smart Managed PoE Switch with GbE Uplink |
8-port GbE Smart Managed PoE Switch with GbE Uplink |
16-port GbE Smart Managed PoE Switch with GbE Uplink |
24-port GbE Smart Managed PoE Switch with GbE Uplink |
| Switch class |
Smart Managed |
Smart Managed |
Smart Managed |
Smart Managed |
| Port Density |
| Total port count |
6 |
12 |
18 |
26 |
| 100/1000 Mbps |
5 |
10 |
16 |
24 |
| Gigabit SFP |
1 |
2 |
- |
- |
| Gigabit combo (RJ-45/SFP) |
- |
- |
2 |
2 |
| Configurable extended range ports |
5 |
8 |
16 |
16 |
| PoE |
| PoE ports |
5 |
8 |
16 |
24 |
| Total PoE budget (watt) |
60 |
130 |
250 |
375 |
| PoE Standard |
802.3af/at
802.3bt (port 1-2) |
802.3af/at |
802.3af/at |
802.3af/at |
| Performance |
| Switching capacity (Gbps) |
12 |
24 |
36 |
52 |
| Forwarding rate (Mpps) |
8.9 |
17.8 |
26.7 |
38.7 |
| Packet buffer (byte) |
525 K |
525 K |
525 K |
525 K |
| MAC address table |
8 K |
8 K |
8 K |
8 K |
| Power |
| Input |
52 V - 57 V DC |
100 - 240 V AC, 50/60 Hz |
100 - 240 V AC, 50/60 Hz |
100 - 240 V AC, 50/60 Hz |
| Max. power consumption (watt) |
72 |
160.3 |
300.9 |
448.9 |
| Physical Specifications |
| Dimensions (WxDxH)(mm/in.) |
193 x 84 x 26 /
7.6 x 3.31 x1.02 |
267 x 162 x 44 /
10.51x 6.38 x1.73 |
330 x 230 x 44 /
12.99 x 9.06 x1.73 |
441 x 270 x 44 /
17.36 x10.63 x 1.73 |
| Weight (kg/lb.) |
0.41/0.9 |
1.63/3.59 |
2.42/5.34 |
3.58/7.89 |
| Included accessories |
- Power adapter
- Wall-mount kit
|
- Power cord
- Rack mounting kit
|
- Power cord
- Rack mounting kit
|
- Power cord
- Rack mounting kit
|
| ESD/Surge Protections |
| Ethernet port surge protection |
4 KV |
4 KV |
4 KV |
4 KV |
| Power supply surge protection: Line-GND |
4 KV |
4 KV |
4 KV |
4 KV |
| Power supply surge protection: Line-Line |
2 KV |
2 KV |
2 KV |
2 KV |
| Ethernet port ESD protection (air/contact) |
15 KV/8 KV |
15 KV/8 KV |
15 KV/8 KV |
15 KV/8 KV |
| Environmental Specifications |
| Operating |
Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) |
| Storage |
Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) |
| MTBF (hr) |
2,021,885.87 |
1,065,025.45 |
1,699,692.18 |
888,495 |
| Heat dissipation (BTU/hr) |
245.52 |
546.62 |
1,026.07 |
1,530.75 |
| Acoustic noise @ 25°C (dBA) |
0 (Fanless) |
27.3 |
39 |
40.1 |
