| Description |
| Product name |
8-port Multi-Gigabit Smart Managed Switch with 2 SFP+ Uplink |
8-port Multi-Gigabit Smart Managed PoE Switch with 2 10GbE and 2 SFP+ Uplink |

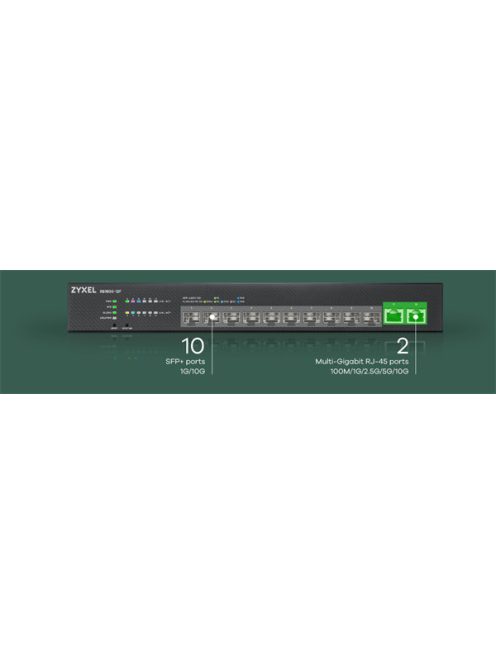

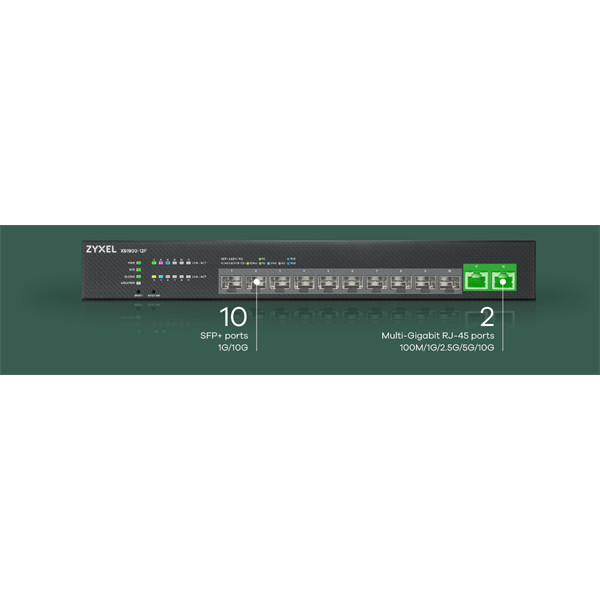

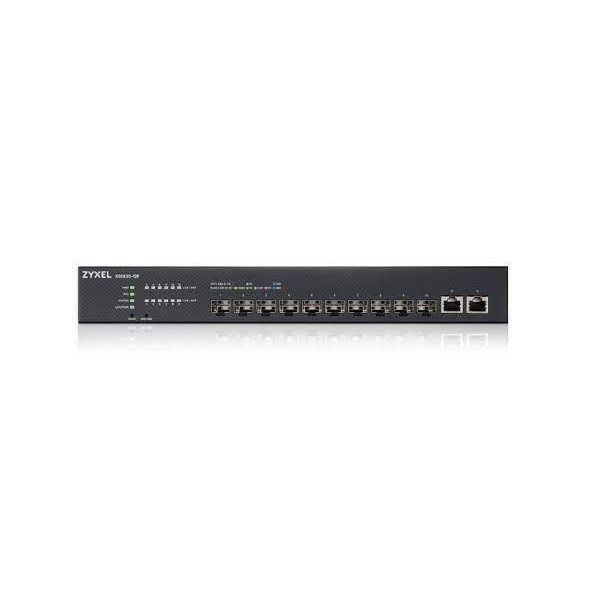

10-port 10G Smart Managed Fiber Switch with 2 Multi-Gigabit Ports |
| Switch class |
Smart Managed |
Smart Managed |
Smart Managed |
| Port Density |
| Total port count |
10 |
12 |
12 |
| 100M/1G/2.5G/5G/10G Ethernet (RJ-45) |
8 |
10 |
2 |
| 10-Gigabit SFP+ |
2 |
2 |
10 |
| PoE |
| PoE ports |
- |
8 |
- |
| Total PoE budget (watts) |
- |
375 |
- |
| IEEE 802.3bt (PoE++) |
- |
Yes |
- |
| Performance |
| Switching capacity (Gbps) |
200 |
240 |
240 |
| Forwarding rate (Mpps) |
148.8 |
178.5 |
178.5 |
| Packet buffer (byte) |
2 MB |
2 MB |
2 MB |
| MAC address table |
16 K |
16 K |
16 K |
| L3 forwarding tab |
Max. 512 IPv4 entries;
Max. 512 IPv6 entries |
Max. 512 IPv4 entries;
Max. 512 IPv6 entries |
Max. 512 IPv4 entries;
Max. 512 IPv6 entries |
| Routing table |
32 |
32 |
32 |
| IP interface |
32/32 |
32/32 |
32/32 |
| Flash/RAM |
32 MB/256 MB |
32 MB/256 MB |
32 MB/256 MB |
| Power |
| Input |
100 - 240 V AC, 50/60 Hz |
100 - 240 V AC, 50/60 Hz |
100 - 240 V AC, 50/60 Hz |
| Max. power consumption (watt) |
44.3 |
493 |
24.9 |
| Physical Specifications |
| Item |
Dimensions (WxDxH)(mm/in.):
330 x 230 x 44/12.99 x 9.06 x 1.73
Weight (kg/lb.): 2.4/5.29 |
Dimensions (WxDxH)(mm/in.):
330 x 230 x 44/12.99 x 9.06 x 1.73
Weight (kg/lb.): 2.8/6.17 |
Dimensions (WxDxH)(mm/in.):
330 x 230 x 44/12.99 x 9.06 x 1.73
Weight (kg/lb.): 2.2/4.85 |
| Packing |
Dimensions (WxDxH)(mm/in.):
484 x 337 x 79/19.06 x 13.27 x 3.11
Weight (kg/lb.): 3.5/7.72 |
Dimensions (WxDxH)(mm/in.):
484 x 337 x 79/19.06 x 13.27 x 3.11
Weight (kg/lb.): 4.0/8.82 |
Dimensions (WxDxH)(mm/in.):
484 x 337 x 79/19.06 x 13.27 x 3.11
Weight (kg/lb.): 3.63/8 |
| Included accessories |
- Power cord
- Rack mounting kit
|
| Environmental Specifications |
| Operating |
Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) |
| Storage |
Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) |
| MTBF (hr) |
778,690 |
582,873 |
1,254,657 |
| Heat dissipation (BTU/hr) |
151.06 |
1,681.13 |
84.91 |
| Acoustic noise (min/max, dBA) |
28/50 |
28/51 |
26/44 |
