Overview
Dimensions
98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
UniFi Application Suite
Network
Yes
Managed UniFi Devices
4
Simultaneous Users Connected
50+
Default WAN Ports
(1) GbE RJ45
LAN Ports
(1) GbE RJ45
Form Factor
Compact desktop
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Ad Blocking
Yes
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
VPN Server
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
OpenVPN
Yes
L2TP
Yes
VPN Client
OpenVPN
Yes
WireGuard
Yes
Networking
Dynamic Routing
OSPF
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
Policy-based WAN and VPN Routing
Yes
Customizable DHCP Server
Yes
IPv6 ISP Support
Yes
IGMP Proxy
Yes
Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax (WiFi 6)
Throughput
5 GHz
2.4 Gbps
2.4 GHz
573.5 Mbps
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain
5 GHz
5.15 dBi
2.4 GHz
4 dBi
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
3 per Radio (Gateway Mode) 4 per Radio (AP Mode)
Antennas
(2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Hardware
Max. Power Consumption
10W
Power Method
USB type C (5V DC/3A)
Power Supply
USB type C (5V DC/3A) (Adapter included)
Max. TX Power
5 GHz
25 dBm
2.4 GHz
22 dBm
Supported Voltage Range
100—240V AC
Processor
Dual-core ARM® Cortex®-A53 at 1 GHz
System Memory
1 GB
Weight
302 g (10.7 oz)
Enclosure Material
Polycarbonate

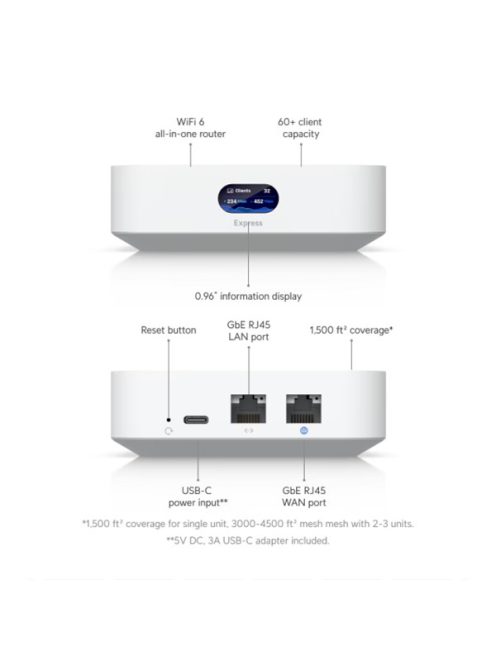

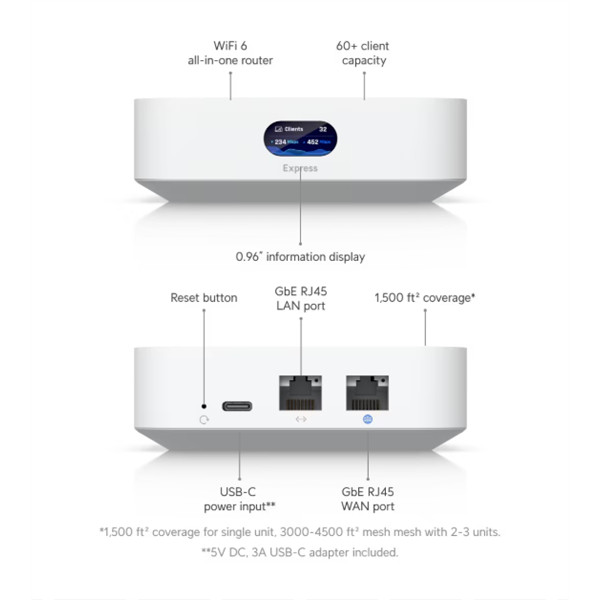

LCM Display
0.96" status display
Management
Ethernet Bluetooth
Ambient Operating Temperature
-10 to 45° C (14 to 113° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Button
(1) Factory-reset
Software
VLAN
802.1Q
Guest Traffic Isolation
Yes
Application Requirements
UniFi Network
Version 8.0.7 and later
