Overview
Dimensions
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")

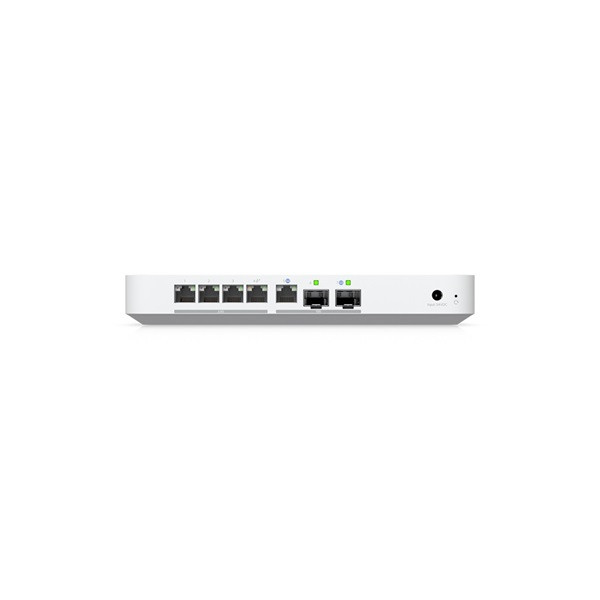

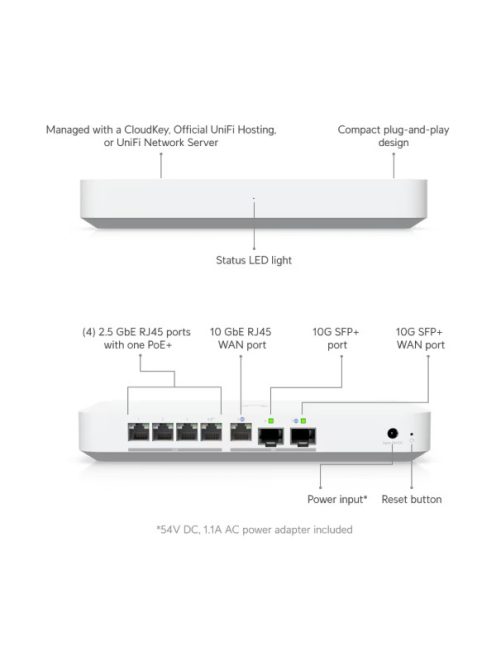

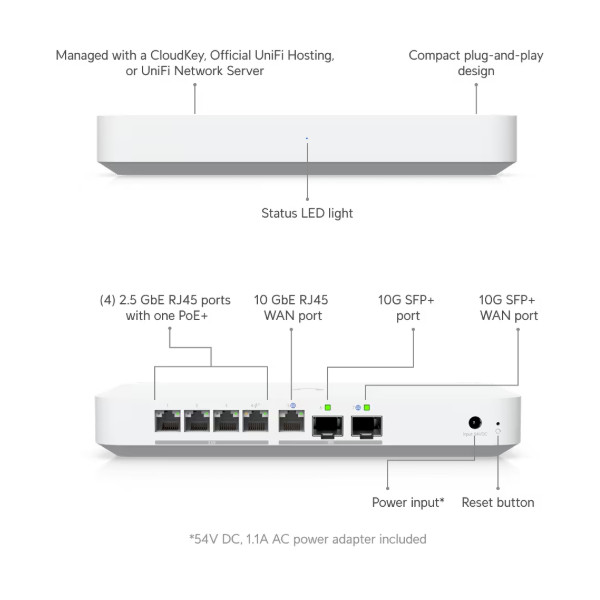

Default WAN Ports
(1) 10G SFP+ (1) 10 GbE RJ45
LAN Ports
(1) 10G SFP+ (4) 2.5 GbE RJ45
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
55,000+ With CyberSecure
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
VPN Server
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
OpenVPN
Yes
L2TP
Yes
VPN Client
OpenVPN
Yes
WireGuard
Yes
Networking
Multi-WAN Load Balancing
Yes
Dynamic Routing
OSPF
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
4,000
Hardware
PoE Budget
30W
Max. PoE Wattage per Port by PSE
PoE+
30W
Voltage Range PoE Mode
50—57V
Max. Power Consumption
25W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
2 GB
Weight
605 g (1.3 lb)
Enclosure Material
Polycarbonate
Management
Ethernet Bluetooth
LEDs
Ethernet
Yes
SFP+
Yes
System
Yes
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Button
(1) Factory-reset
