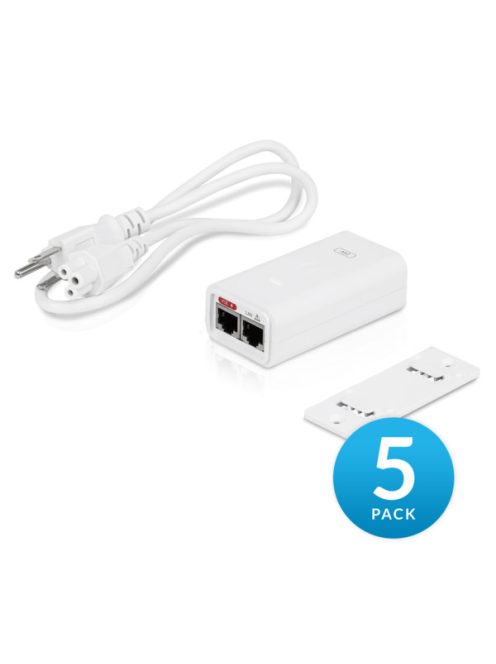

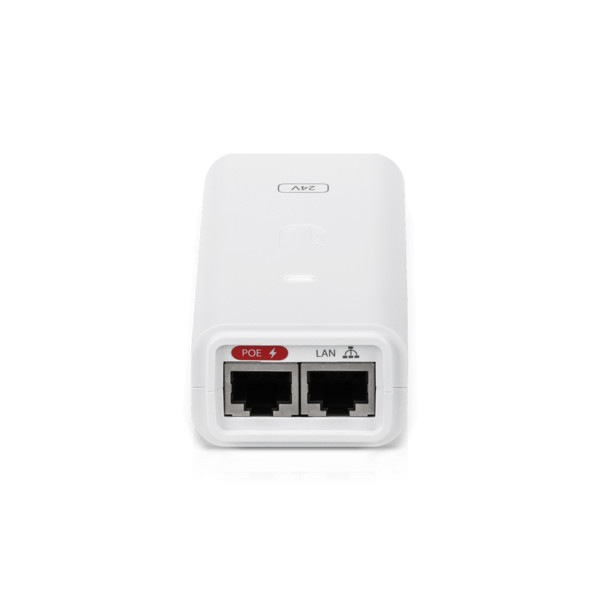

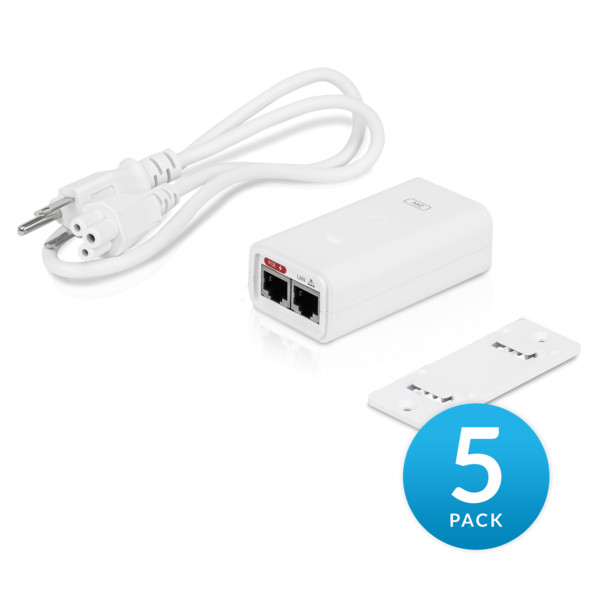

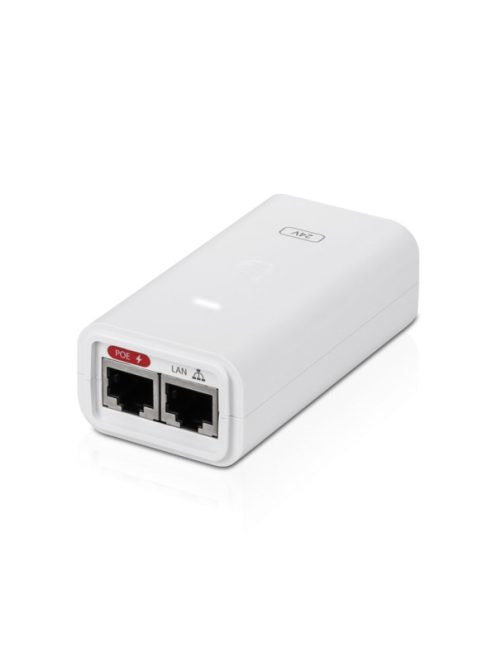

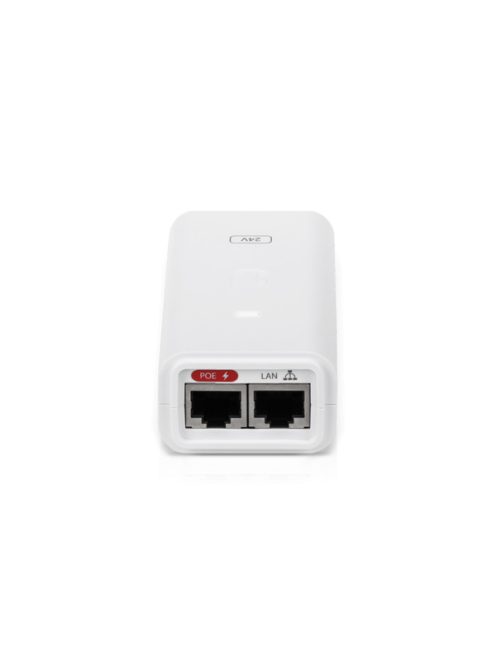

| POE-24-12W |
| Dimensions |
87 x 44 x 29 mm
(3.43 x 1.73 x 1.14") |
| Weight |
92 g
(3.25 g) |
| Output Voltage |
24VDC @ 0.5A |
| LAN Activity Indicator |
No |
| Gigabit LAN Port |
Yes |
| Remote Reset Capability |
Yes |
| Reset Button |
Yes |
| Rated Voltage |
100-240VAC @ 50/60Hz |
| Input Current |
0.3A @ 120VAC, 0.2A @ 240VAC |
| Inrush Current |
<30A Peak @ 120VAC, <60A Peak @ 230VAC |
| Efficiency |
75+% |
| Output Ripple |
1% Max. |
| Switching Frequency |
50 kHz |
| Line Regulation |
≤ 3% |
| Load Regulation |
≤ 5% |
| 2-Pair Powering |
Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering |
– |
| Operating Temperature |
0 to 40° C
(32 to 104° F) |
| Storage Temperature |
-30 to 70°C
(-22 to 158° F) |
| Operating Humidity |
35 to 95% Noncondensing |
| AC Connector |
IEC-320 C6 |
| Data IN / POE |
RJ45 Shielded Socket |
| Surge Protection |
Difference and Common Mode |
| Clamping Protection |
11V Data, 60V Power |
| Max. Surge Discharge |
1500A (8/20 μs) Power |
| Peak Pulse Current |
36A (10/1000 μs) Data |
| Shunt Capacitance |
<5 pF data |
| Response Time |
<1 ns |
| Certifications |
CE, FCC, IC, UL |
