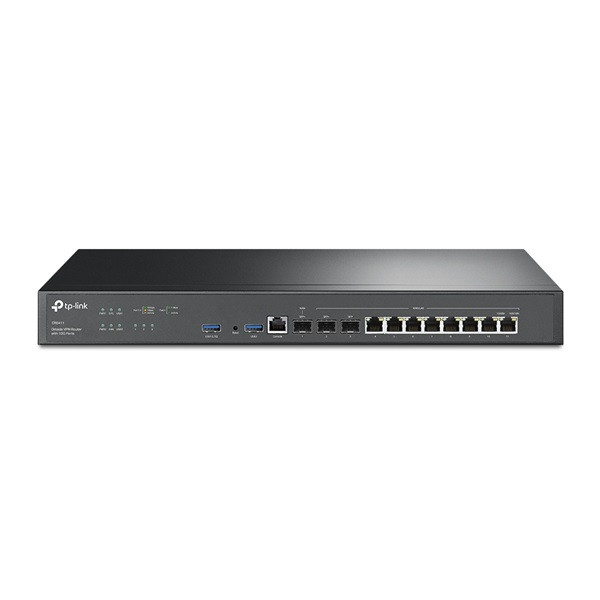

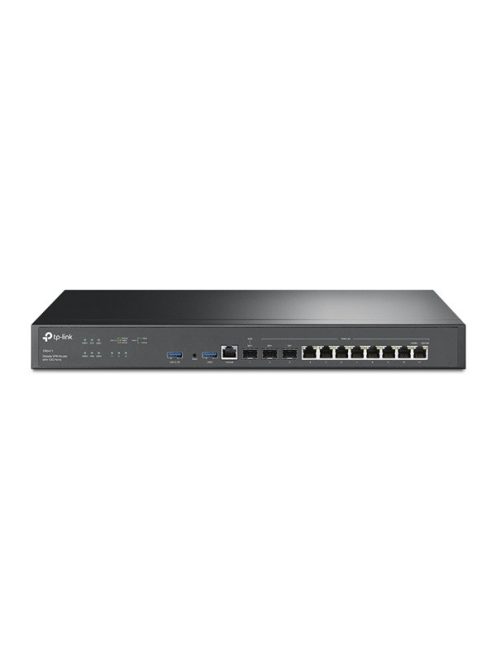

TP-LINK Vezetékes VPN Router 2xSFP+(10GE) + 1xWAN/LAN(1GE) + 8xWAN/LAN(1GE) + 1xkonzol port + 2xUSB, ER8411

TP-LINK Vezetékes VPN Router 2xSFP+(10GE) + 1xWAN/LAN(1GE) + 8xWAN/LAN(1GE) + 1xkonzol port + 2xUSB, ER8411

TP-LINK Vezetékes VPN Router 2xSFP+(10GE) + 1xWAN/LAN(1GE) + 8xWAN/LAN(1GE) + 1xkonzol port + 2xUSB, ER8411

TP-LINK Vezetékes VPN Router 2xSFP+(10GE) + 1xWAN/LAN(1GE) + 8xWAN/LAN(1GE) + 1xkonzol port + 2xUSB, ER8411

TP-LINK Vezetékes VPN Router 2xSFP+(10GE) + 1xWAN/LAN(1GE) + 8xWAN/LAN(1GE) + 1xkonzol port + 2xUSB, ER8411

TP-LINK Vezetékes VPN Router 2xSFP+(10GE) + 1xWAN/LAN(1GE) + 8xWAN/LAN(1GE) + 1xkonzol port + 2xUSB, ER8411

TP-LINK Vezetékes VPN Router 2xSFP+(10GE) + 1xWAN/LAN(1GE) + 8xWAN/LAN(1GE) + 1xkonzol port + 2xUSB, ER8411

Adatok

Gyártó

TP-LINK

Portok száma

14

szabvány

IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

Garancia

60 hónap

Gyártói cikkszám

ER8411

Gyártó

TP-LINK

EAN

4897098683309

Tömeg

200 g/db

Részletek

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface	• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Button	Reset Button

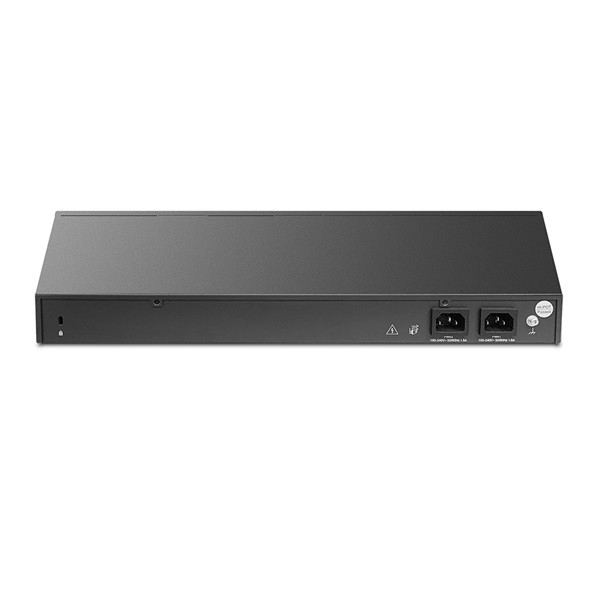

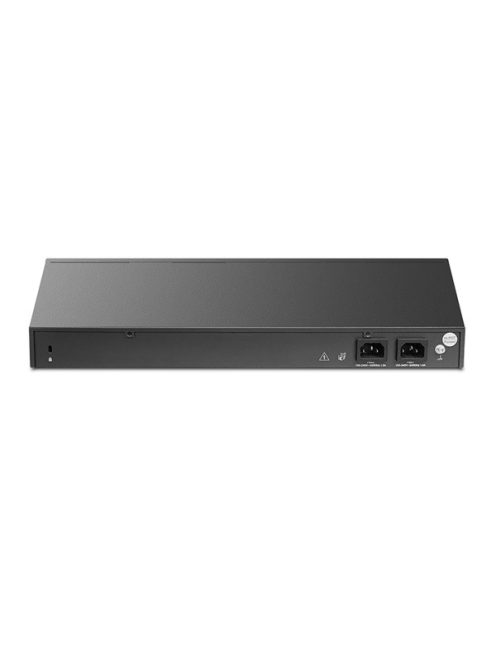

Power Supply	Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
LED	PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H )	17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

BASIC FUNCTIONS
WAN Connection Type	• Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces
IPv6	Yes
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy

ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing
Bandwidth Control	• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing^§, Failover) • Online Detection
NAT	• One-to-One NAT^§ • Multi-Net NAT • Virtual Server • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security	• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session Limit	IP-based Session Limit

SECURITY
Filtering	WEB Group Filtering^§ URL Filtering Web Security^§
ARP Inspection	• Sending GARP Packets^§ • ARP Scanning^§ • IP-MAC Binding^§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control	Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password • Hotspot(Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever • Facebook Check-In • Instagram Follow**

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Time Setting • Diagnostic • Firmware Upgrade • Factory Defaults/Reboot • Backup&Restore • System Log • Remote Management • Statistics • Controller Settings • SNMP
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Omada 10G Multi-WAN Security Gateway ER8411 • Power Cord • Rack-Mount Kit • Quick Installation Guide
Environment	• Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
