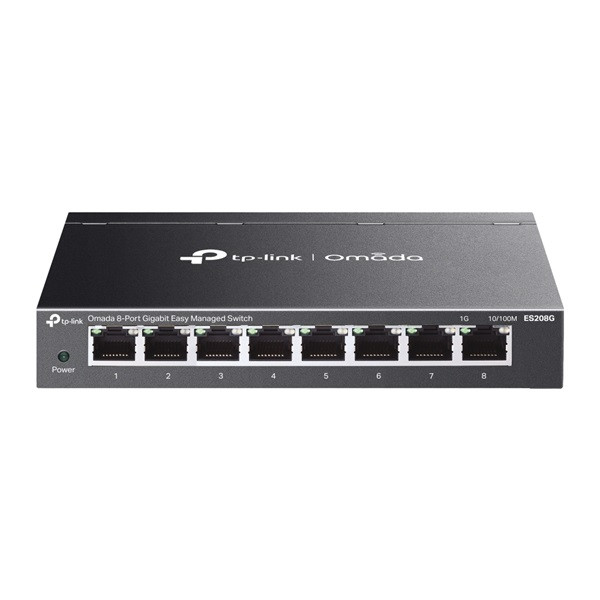

TP-LINK Switch 8x1000Mbps Fémházas Easy Smart (Omada), ES208G

Adatok

Gyártó

TP-LINK

Switch típus

Fixed port

Menedzselhetőség

Web

Port típusa

1Gb Fiber

Áteresztő képesség

11,9

Switching kapacitás

Portok száma

Rack-be szerelhető

Van

Menedzselhető

Van

PoE (Power over Ethernet)

Nincs

Garancia

60 hónap

Gyártói cikkszám

ES208G

Esztétikai besorolás

Bontatlan

Gyártó

TP-LINK

EAN

1210002600668

Termék állapota

Új

EAN

1210002600668

Tömeg

660 g/db

Részletek

HARDWARE FEATURES
Interface	• 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• Desktop • Wall Mount
Physical Security Lock	?
Power Supply	DC Power Adapter (Output: 5VDC / 0.6A)
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Surge Protection	±6kV

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES208G • Power Adapter • Rubber Feet • Installation Guide
Environment	• Operating Temperature: -5?~45? (23?~113?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
