| Interface |
• 6× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m) |
| Fan Quantity |
Fanless |

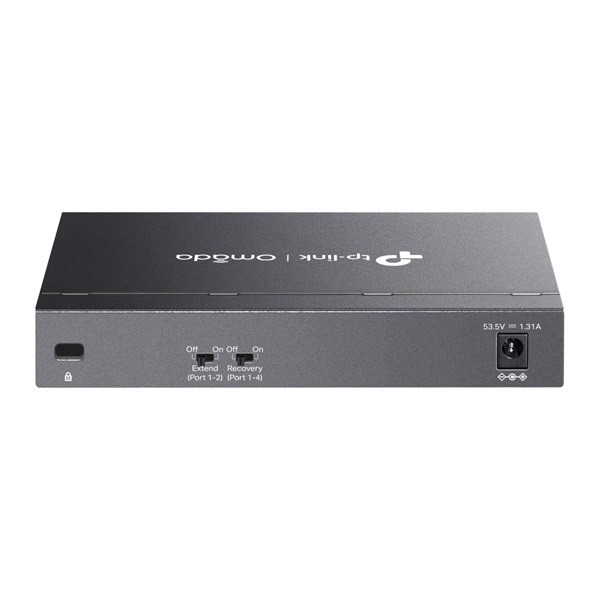

| External Power Supply |
External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate |
8.928 Mpps |
| PoE Ports (RJ45) |
• Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
• Power Supply: 64 W |
| Mac Address Table |
4K |
| Switching Capacity |
12 Gbps |
| Dimensions ( W x D x H ) |
6.2x4.0x1.0 in (158x101x25 mm) |
| Max Power Consumption |
• 4.75 W (220/50 Hz. no PD connected)
• 71.46 W (220/50 Hz. with 64 W PD connected) |
| Max Heat Dissipation |
• 16.20 BTU/h (220/50 Hz. no PD connected)
• 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
