| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p |

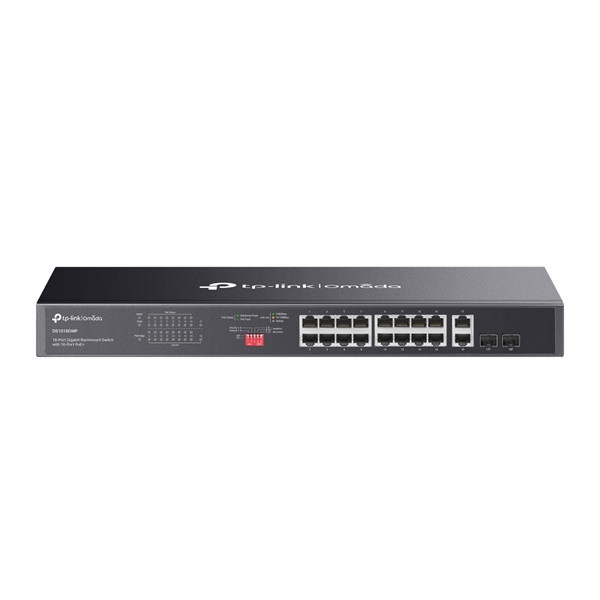

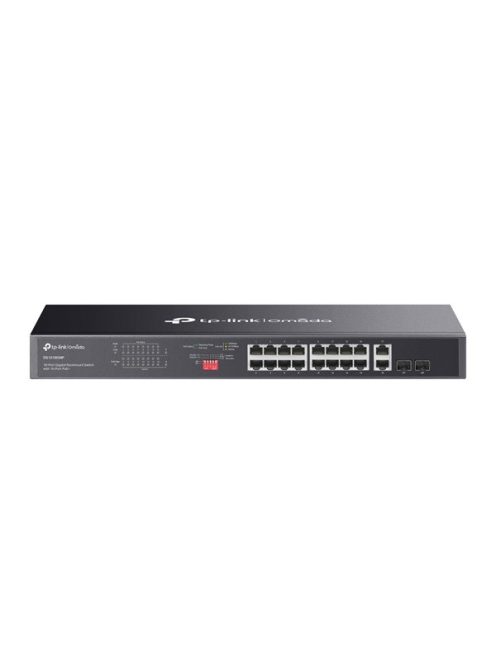

| Interface |
• 16× 10/100/1000 Mbps PoE+ RJ45 ports
• 2× Combo Gigabit SFP slots |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-X MMF, SMF |
| Fan Quantity |
2 |
| Physical Security Lock |
Yes |

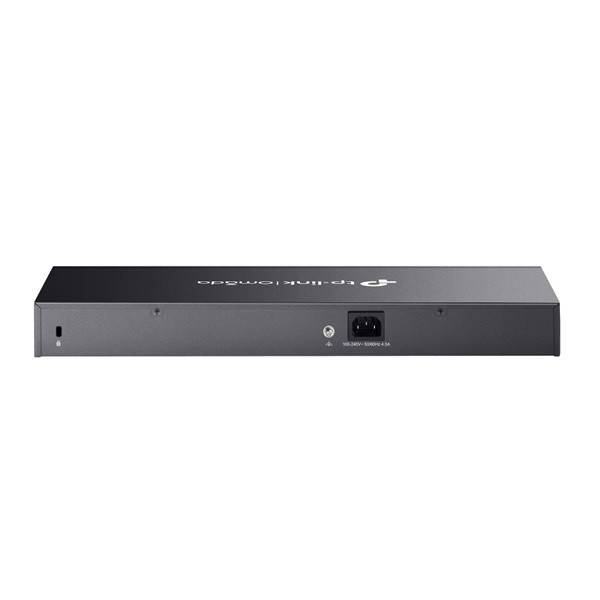

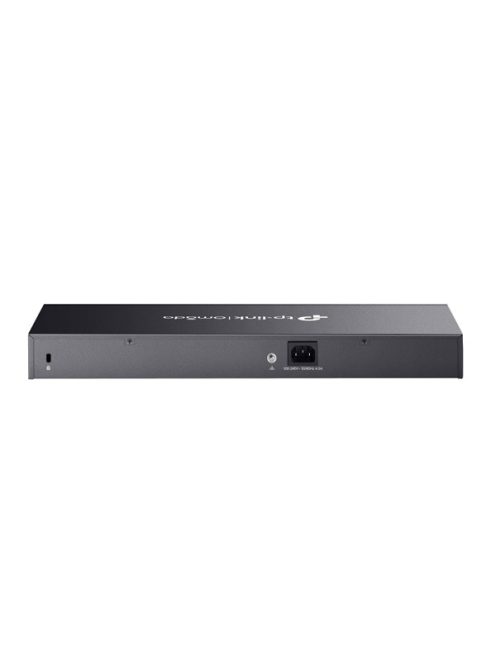

| Power Supply |
100–240 VAC, 50/60 Hz |
| PoE+ Ports(RJ45) |
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 250 W |
| Dimensions ( W x D x H ) |
17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
| Mounting |
Rack Mountable |
| Max Power Consumption |
• 19 W (220/50 Hz. no PD connected)
• 293.34 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation |
• 64.79 BTU/h (no PD connected)
• 1000.29 BTU/h (with 250 W PD connected) |
