| stallation |
• Desktop
• Wall Mounting |
| Interface |

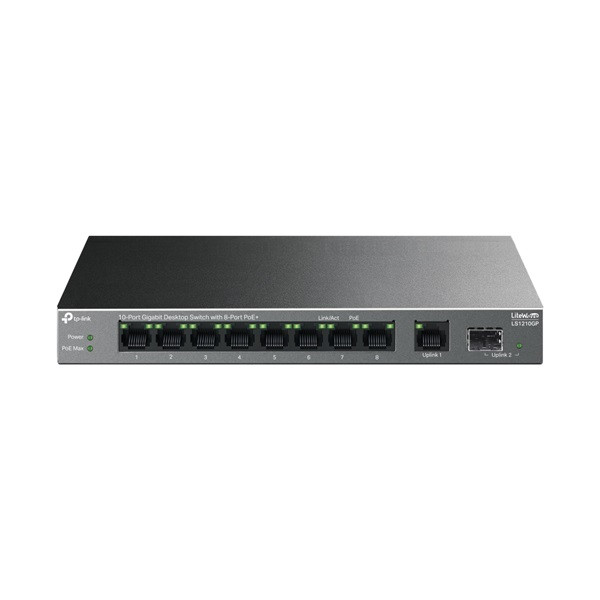

• 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output)
• 1× Gigabit SFP Port |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m) |
| Fan Quantity |
Fanless |
| Physical Security Lock |
Yes |
| Power Supply |
External Power Adapter(Output: 53.5VDC / 1.31A) |
| PoE+ Ports(RJ45) |
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• PoE Power Budget: 63W |
| Dimensions ( W x D x H ) |
8.2×4.9×1.0 in (209×126×26 mm) |
| Max Power Consumption |
• 7.3 W (220/50Hz. no PD connected)
• 76.96 W (220/50Hz. with 61 W PD connected) |
| Max Heat Dissipation |
• 24.82 BTU/h (no PD connected)
• 261.66 BTU/h (with 61 W PD connected) |
