| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |

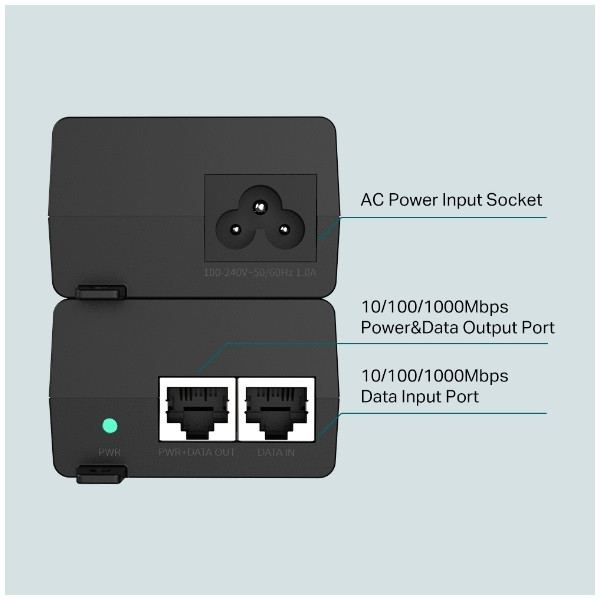

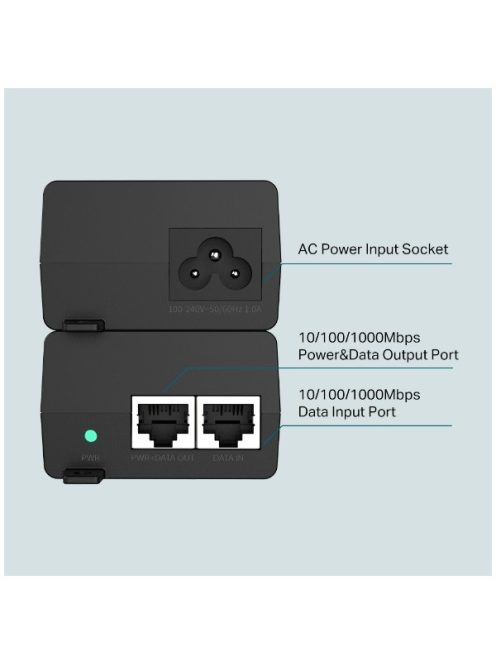

| Ports |
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC power port |
| Power Consumption |
Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W) |
| Basic Function |
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play |
| LED Indicator |
ON: Supplying power normally
OFF: No power supply |
| Dimensions ( W x D x H ) |
4.9 x 2.3 x 1.4 in
(125 x 59 x 37 mm) |
