| Interface |
• 3 Gigabit WAN/LAN Ports |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button |
Reset Button |
| Power Supply |
802.3at/bt PoE; 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate |
• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160) |
| Flash |
256 MB NAND |
| DRAM |
512 MB DDR4 |
| LED |
4G Signal, WLAN, WAN/LAN, SYS |
| Dimensions ( W x D x H ) |
6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included) |
| Antenna |
• Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in
antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas |

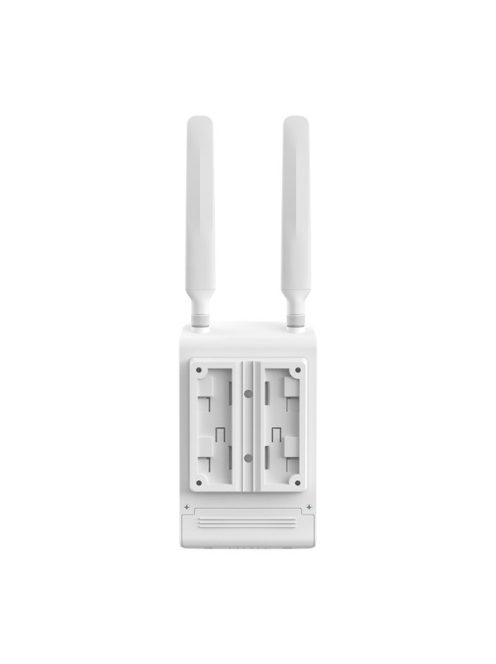

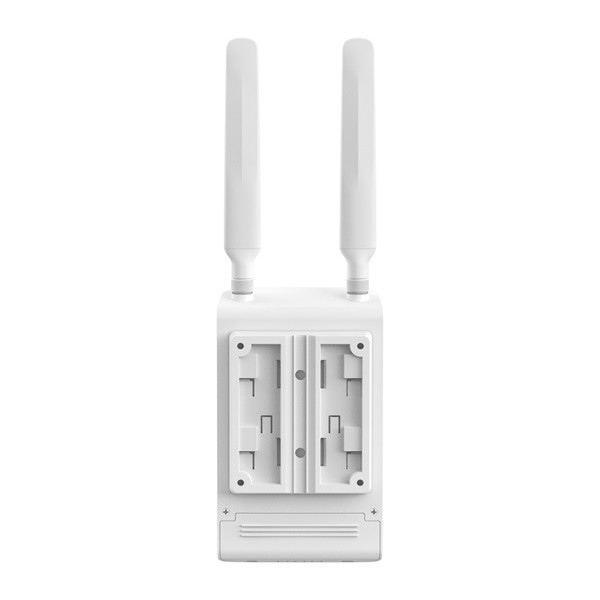

| Mounting |
Pole/Wall-Mounting |
| Max Power Consumption |
POE:62.9W max @ 220V/50Hz 25?
DC: 16.6W max @ 220V/50Hz 25? |
