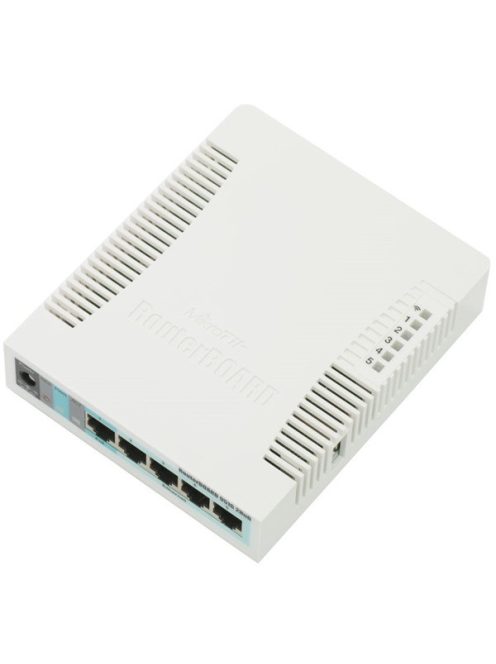

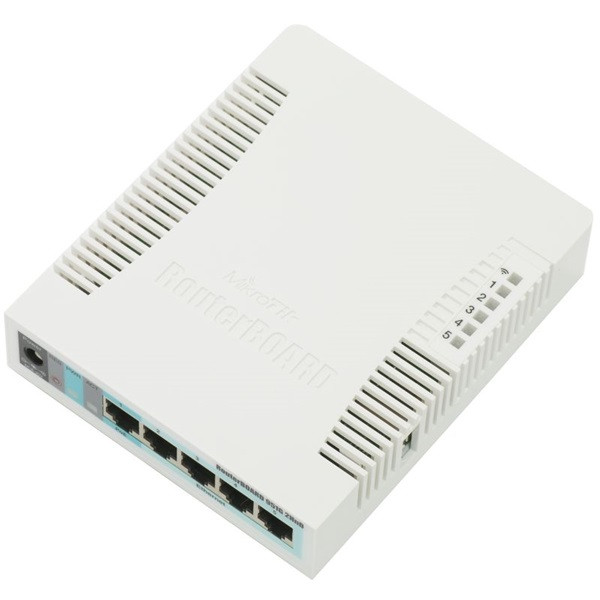

The RB951G-2HnD is a wireless SOHO Gigabit AP with a new generation Atheros CPU and more processing power. It has five Gigabit Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
In comparison with previous model RB751G-2HnD, it has more powerful 600Mhz CPU (instead of 400Mhz), more RAM - 128MB instead of 64MB, same form factor and price. The device is very small and will look good in any home or office, wall mounting anchor holes are provided.
Package contains RouterBOARD 951G-2HnD in a plastic case and power adapter.
Specifications
| Details |
| Product code |
RB951G-2HnD |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
113x138x29mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-20C .. +50C |
| |
|
Powering
| Details |
| Max Power consumption |
Up to 7W |
| PoE in |
Passive PoE |
| PoE in input Voltage |
9-30 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
9-30 V |
Wireless
| Details |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
AR9344 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
30 |
-96 |
| 54MBit/s |
25 |
-80 |
| MCS0 |
30 |
-96 |
| MCS7 |
23 |
-78 |
