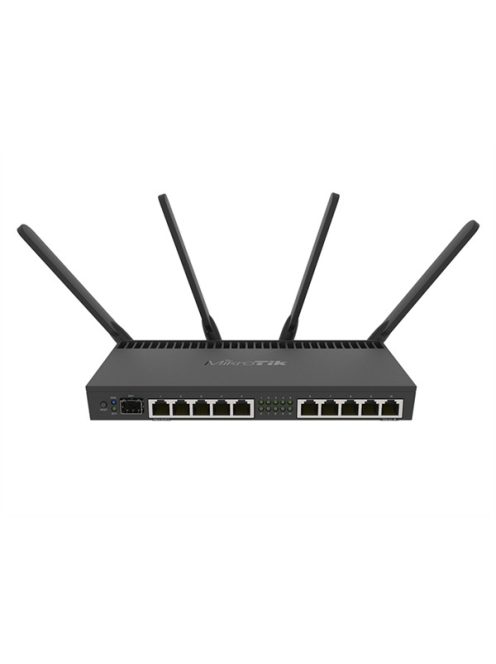

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
Specifications
| Details |
| Product code |
RB4011iGS+5HacQ2HnD-IN |
| Architecture |
ARM 32bit |
| CPU |
AL21400 |
| CPU core count |
4 |
| CPU nominal frequency |
1.4 GHz |
| Dimensions |
228 x 120 x 30 mm |
| License level |
5 |
| Operating System |
RouterOS |
| Size of RAM |
1 GB |
| Storage size |
512 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 45°C |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE out |
Passive PoE up to 57V |
| PoE in input Voltage |
18-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max out per port output (input > 30 V) |
420 mA |
| Max out per port output (input < 30 V) |
600 mA |
| Max total out (A) |
600 mA |
| Max power consumption |
44 W |
| Max power consumption without attachments |
23 W |
Wireless
| Details |
| Wireless 5 GHz number of chains |
4 |
| Wireless 5 GHz standards |
802.11ac |
| Antenna gain dBi for 5 GHz |
3 |
| Wireless 5 GHz chip model |
QCA9984 |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
3 |
| Wireless 2.4 GHz chip model |
R11e-2HnD |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
10 |
Fiber
Peripherals
| Details |
| MiniPCI-e slots |
1 |
| Serial port |
RJ45 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
33 |
-96 |
| 54MBit/s |
29 |
-81 |
| MCS0 |
33 |
-96 |
| MCS7 |
28 |
-77 |
| MCS9 |
26 |
-72 |
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
28 |
-100 |
| 11MBit/s |
28 |
-94 |
| 6MBit/s |
29 |
-96 |
| 54MBit/s |
25 |
-80 |
| MCS0 |
26 |
-96 |
| MCS7 |
24 |
-79 |
Included parts
