| Dimensions (W X D X H) |
169 x 116 x 35 mm
|
| Guest Network |
2.4GHz guest network |
| External Power Supply |
5VDC/0.6A |
| Antenna Type |
3 x 5dBi fixed omni directional antennas |
| Signal Rate |
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
|
| Button |
Reset/WPS button |
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency |
2.4 - 2.4835GHz |
| Reception Sensitivity |
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER
|

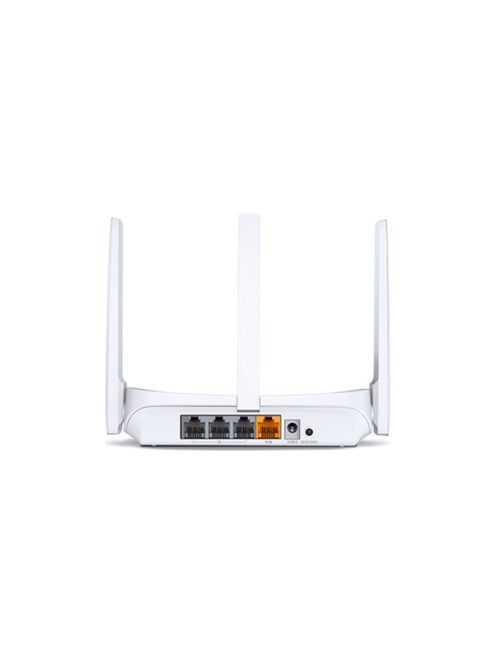

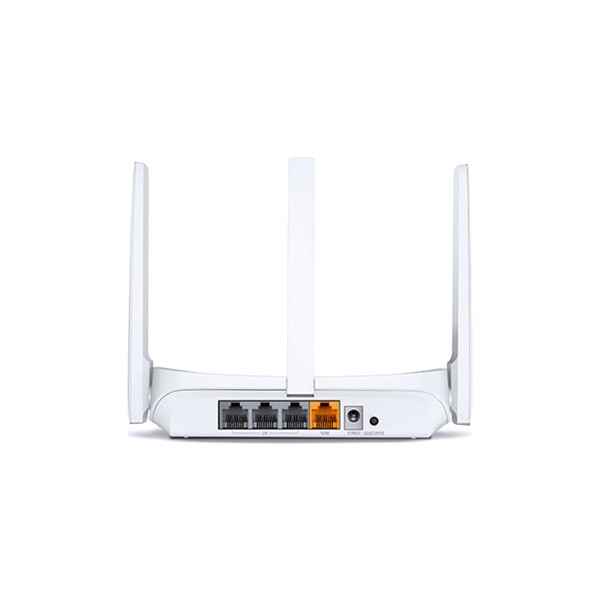

| Interfaces |
3 10/100Mbps LAN ports
1 10/100Mbps WAN port
|
| Certifications |
CE, ROHS |
| Package Contents |

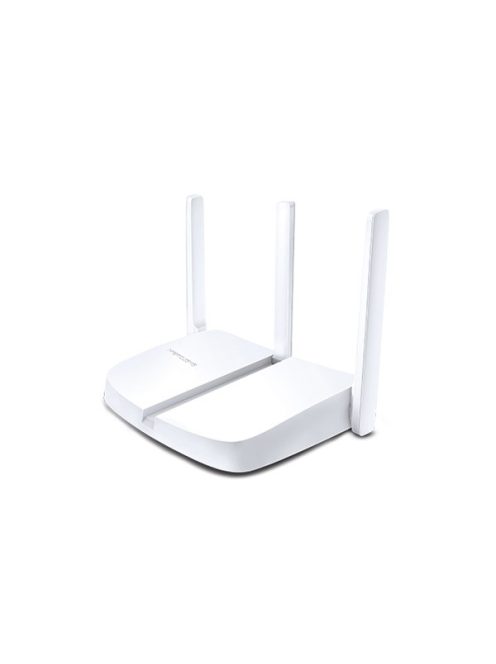

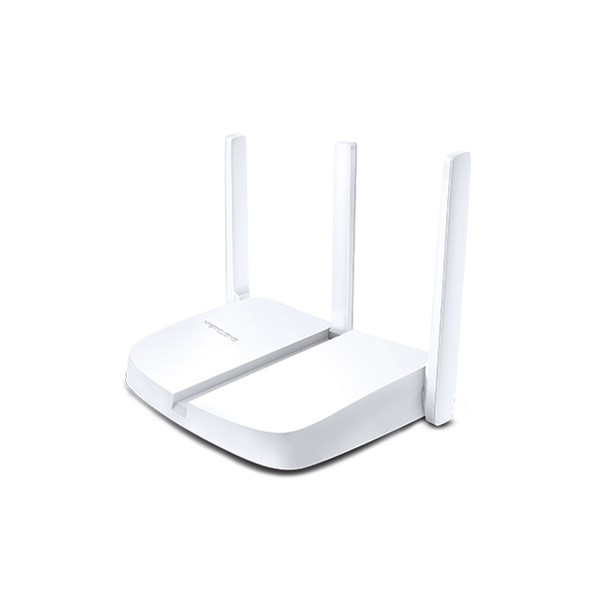

300Mbps Wireless N Router
MW305R
Power adapter
Quick installation guide
Ethernet cable
|
| Environment |
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing |
| Transmission Power |
<20dBm |
| Wireless Security |
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| Wireless Functions |
WDS bridge |
| WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Parental Control
Access control
Local management
Remote management |
| DHCP |
Server |
| Port Forwarding |
Virtual server, UPnP, DMZ |
| Dynamic DNS |
DynDNS?NO-IP |
| Firewall Security |
IP and MAC address binding |
| Protocols |
IPv4 |
