- Wireless Standards
-
-
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
-
- Frequency
-
-
2.4 GHz, 5 GHz
-
- WiFi Speeds
-
-
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible
with 11ac/a/b/g/n Wi-Fi standards
-
- Reception Sensitivity
-
-
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
-
- Transmission Power
-
-
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
-
- Wireless Security
-
-
WPA-PSK / WPA2-PSK
- Operation Modes
-
-
Router Mode, Access Point Mode
-
- WAN Type
-
-
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
-
- Management
-
-
Access Control
Local Management
Remote Management
-
- DHCP
-
-
Server, DHCP Client List
-
- NAT Forwarding
-
-
Port Forwarding, Port Triggering, UPnP, DMZ
-
- Firewall Security
-
-
SPI Firewall, IP and MAC Address Binding
-
- Guest Network
-
-
2.4 GHz Guest Network, 5 GHz Guest Network
- Dimensions
-
-
6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm)
-

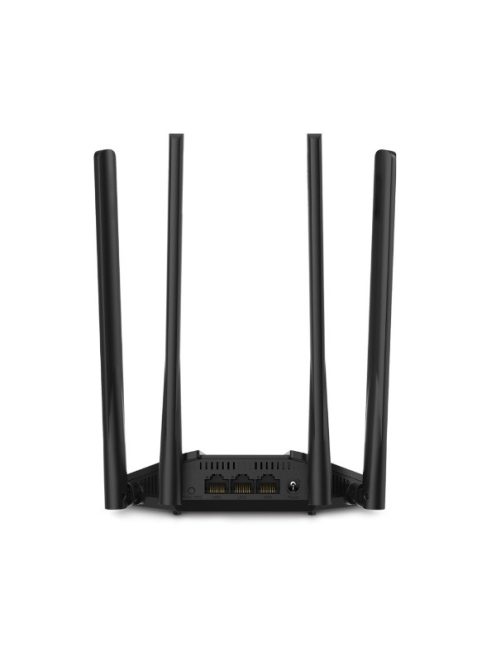

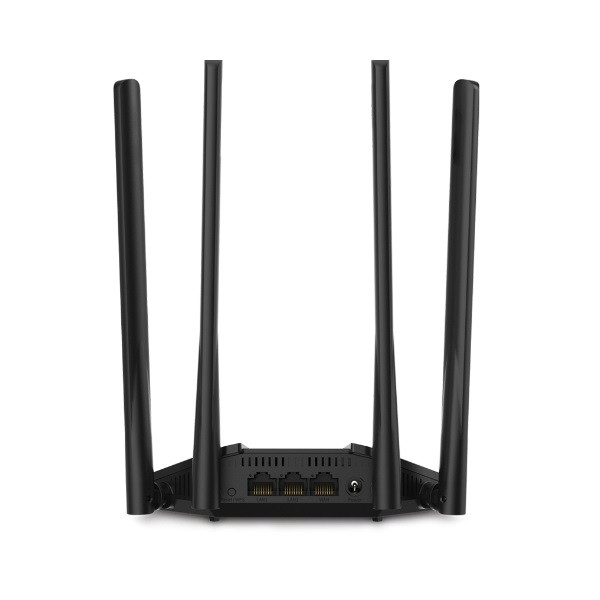

- Interfaces
-
-
1× Gigabit WAN Port + 2× Gigabit LAN Ports
-
- Button
-
-
WPS/Reset Button
-
- Antenna Type
-
-
4× 5 dBi Fixed Omni-Directional Antennas
- Package Contents
-
-

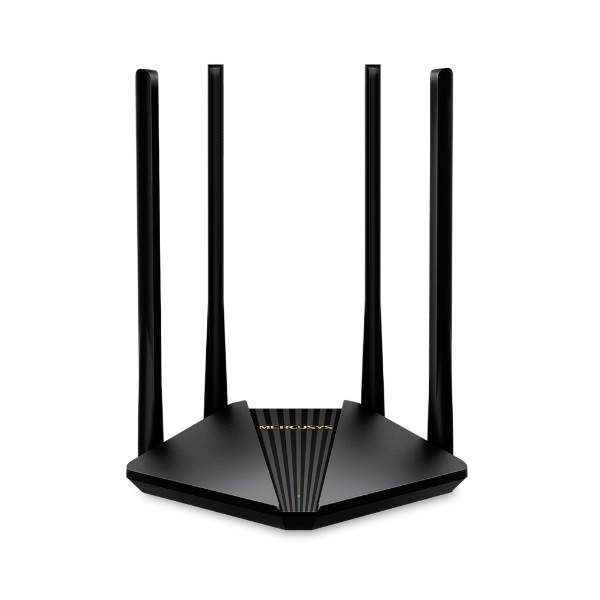

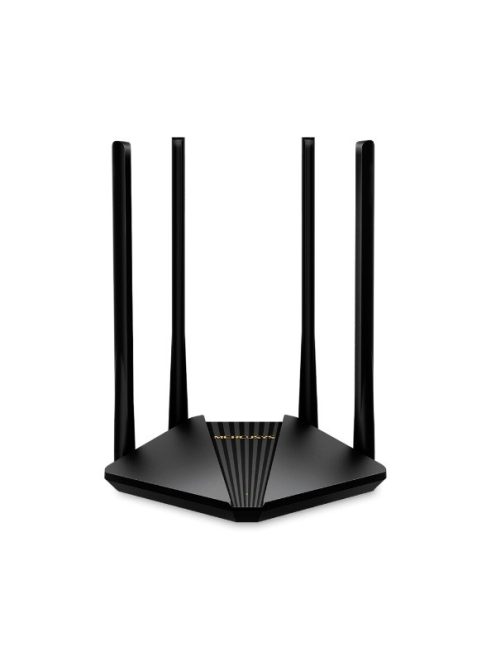

• AC1200 Wireless Dual Band Gigabit Router (MR30G)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
-
- Environment
-
-
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
