| Environment |
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing
|
| Dimensions (W X D X H) |
127 x 60.3 x 22 mm |
| External Power Supply |
External power adapter
(Output: 5.0VDC / 0.6A) |
| Interfaces |
8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX |
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD |
| Fan Quantity |
Fanless |
| Data Rates |
10/100Mbps at half duplex
20/200Mbps at full duplex |
| Buffer Capacity |
768Kb |
| Jumbo Frame |
2KB |
| Switching Capacity |
1.6Gbps |
| LED |
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power |
| Transfer Method |
Store and forward |
| Certifications |
CE, RoHS |
| Package Contents |

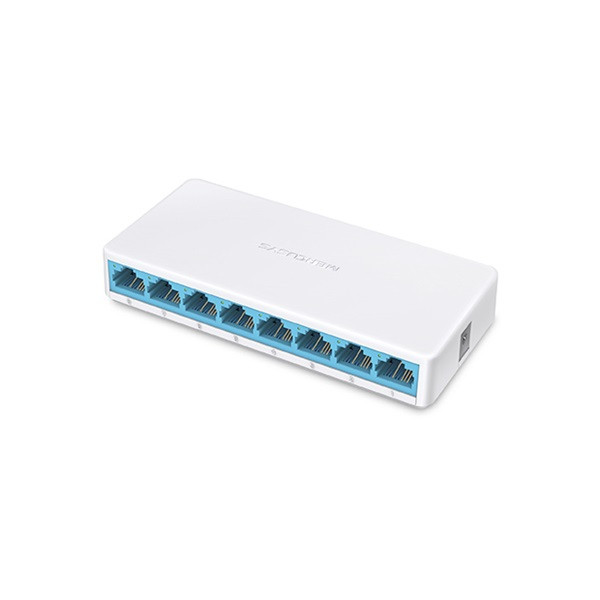

8-Port 10/100Mbps Desktop Switch
MS108
Power adapter
Quick installation guide |
