99.8*98*25mm
RJ45
Standard: Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 4 PoE Power Budget: 40 W
6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Adapter (Output: 53.5V/0.81A)
Desktop
Wall Mount
IEEE 802.3x Flow Control
10/100 Mbps at Half Duplex 20/200 Mbps at Full Duplex
2 KB
2K
1.87W(220 V / 50 Hz, no PD connected)
44.8W(220 V / 50 Hz, with 40W PD connected)
6.34 BTH/h (no PD connected)
152.32 BTH/h(with 40W PD connected)

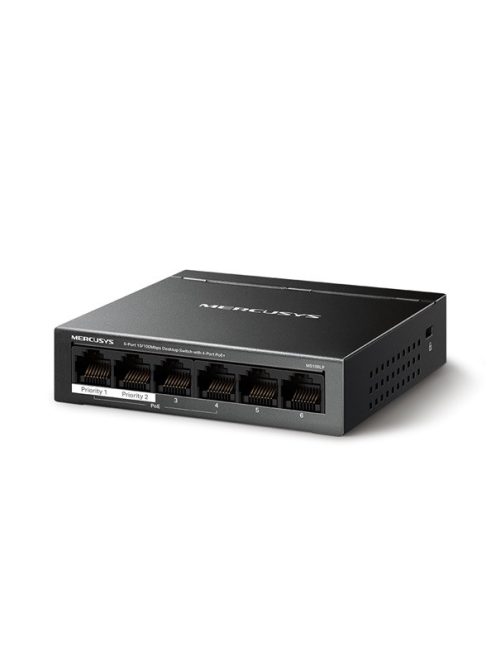

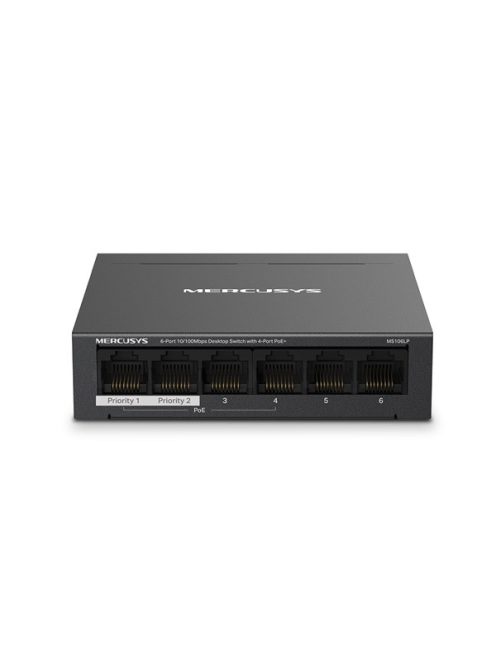

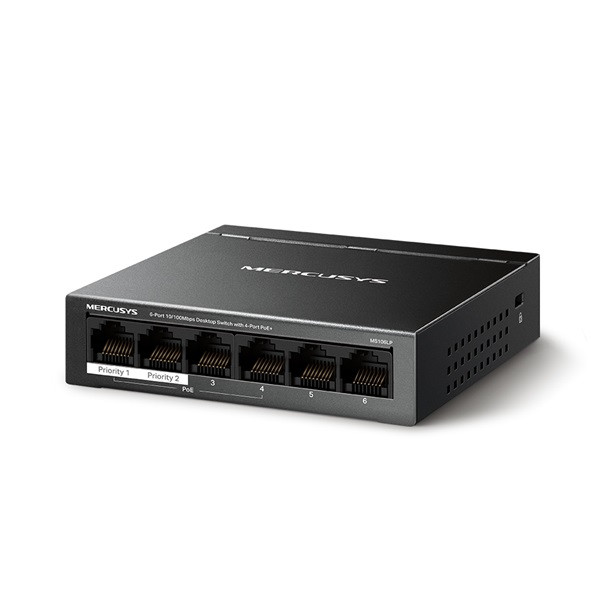

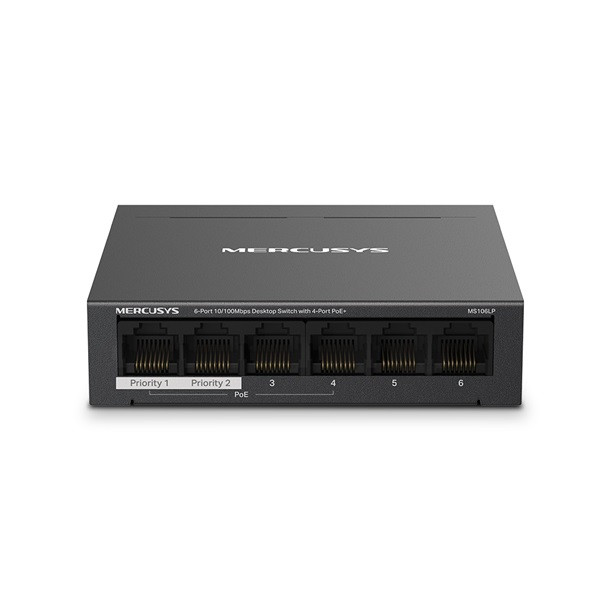

• 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP) • Power Adapter • Quick Installation Guide
Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing
