99.8*98*25mm
RJ45
Standard: Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 4 PoE Power Budget: 65 W
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Adapter (Output: 53.5V/1.31A)
Desktop
Wall Mount
IEEE 802.3x Flow Control
10/100/1000 Mbps at Half Duplex 20/200/2000 Mbps at Full Duplex
9 KB
2K
3.13W(220 V / 50 Hz, no PD connected)
75.15W(220 V / 50 Hz, with 65W PD connected)
10.64 BTH/h (no PD connected)
255.51 BTH/h(with 65W PD connected)

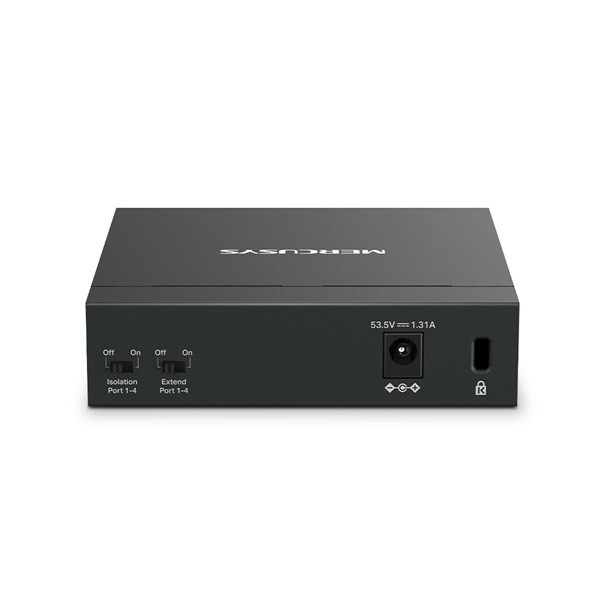

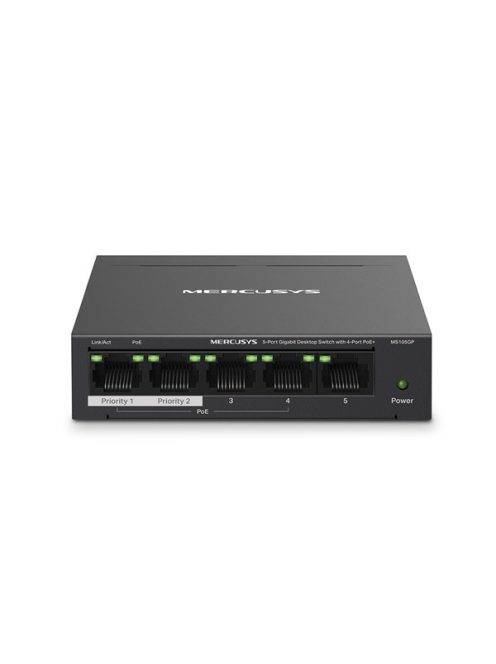

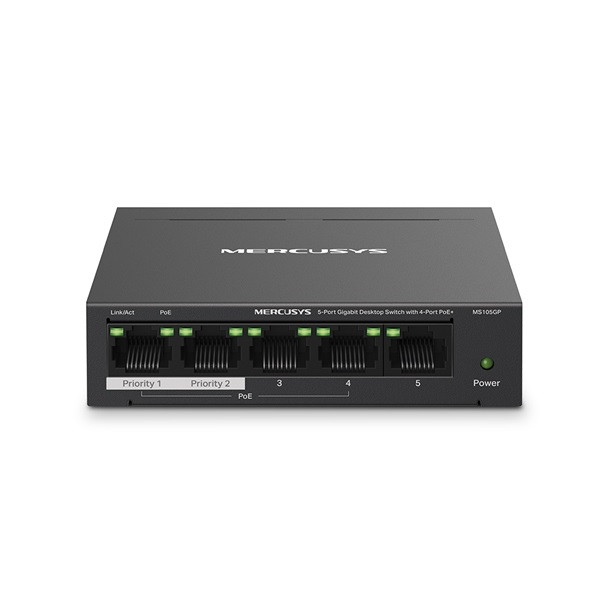

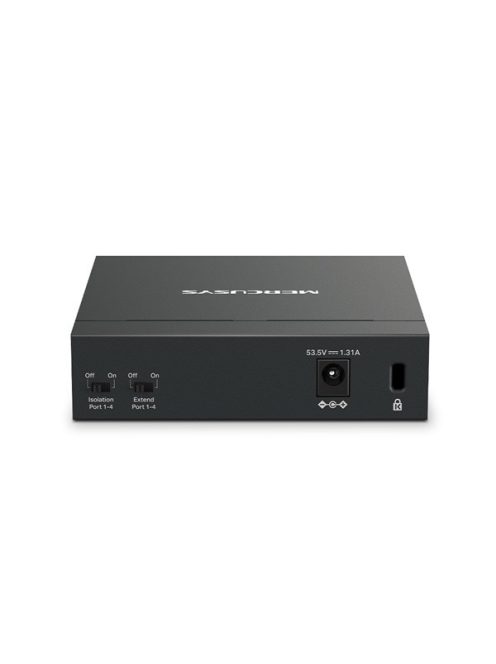

• 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP) • Power Adapter • Quick Installation Guide
Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing
