Model Name:
|
LGS116P
|
| Network Standards: |
IEEE 802.3 |
| |
IEEE 802.3u |
| |
IEEE 802.3x |
| |
IEEE 802.3ab |
| |
IEEE 802.3az |
| |
IEEE 802.3af |
.
|
IEEE 802.3at (PoE+)
|

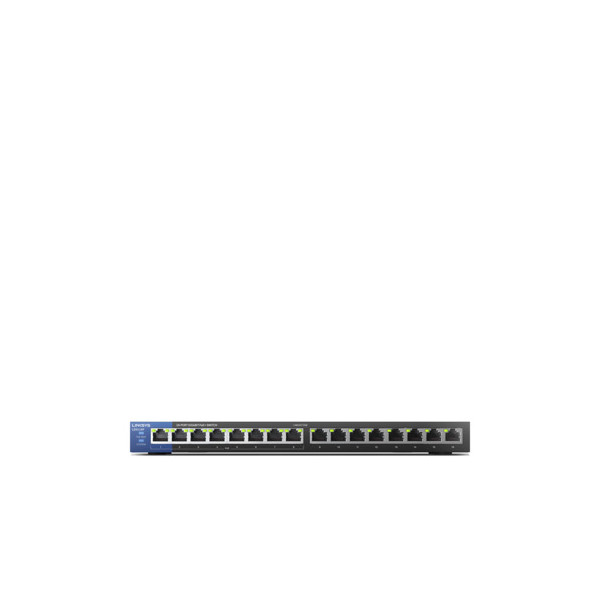

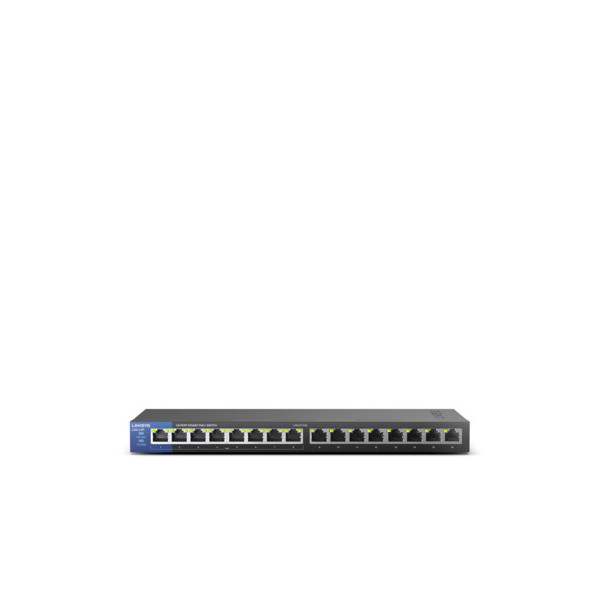

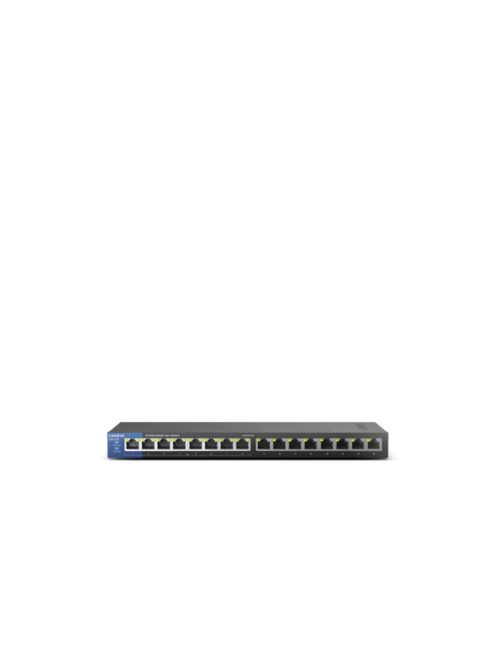

Ports:
|
16-port switch with 8 PoE+ ports (first 1–8 ports) and dedicated PoE power budget of 80 W
|
LEDs:
|
Link, speed, activity, and PoE indicators
|
| Performance: |
Full line rate and forwarding rate of 64B frame at: |
| |
• 1.488 Mpps for 1000M port |
| |
• 0.1488 Mpps for 100M port |
.
|
• 0.01488 Mpps for 10M port
|
Maximum Power Consumption:
|
5.18 W / 13.41 W
|
MAC Address Table Size:
|
8,000 entries
|
Bandwidth:
|
32 Gbps (non-blocking)
|
Fans:
|
None
|
Minimum System Requirements:
|
Connected devices need Ethernet connectivity and Ethernet cables.
|
Dimensions (LxWxH):
|
280 x 120 x 25 mm (11.0 x 4.7 x 1.0 in.)
|
Weight:
|
0.902 kg (1.99 lbs)
|
Power:
|
54 VDC, 1.66 A
|
Power Consumption:
|
4.52 W / 11.31 W
|
Power Consumption:
|
4.52 W / 11.31 W
|
Power Saving:
|
Cable connected detection, sleep mode
|
2 Monitors:
|
External
|
Operating Temperature:
|
0–50°C (32–122°F)
|
Storage Temperature:
|
-40–70°C (-40–158°F)
|
Operating Humidity:
|
10–90% (non-condensing)
|
Storage Humidity:
|
10–90% (non-condensing)
|
Mounting:
|
Wall
|
Quality Of Service:
|
802.1p and DSCP
|
Regulatory Compliance:
|
FCC Class A, CE
|
Warranty and Support:
|
5 Year Warranty
|
