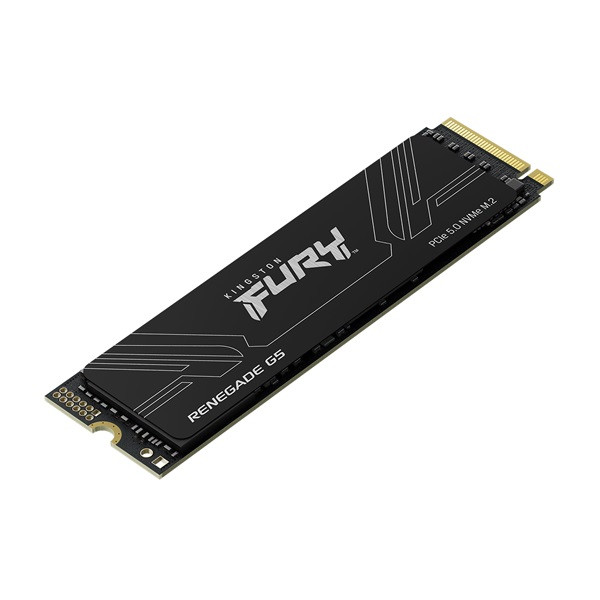

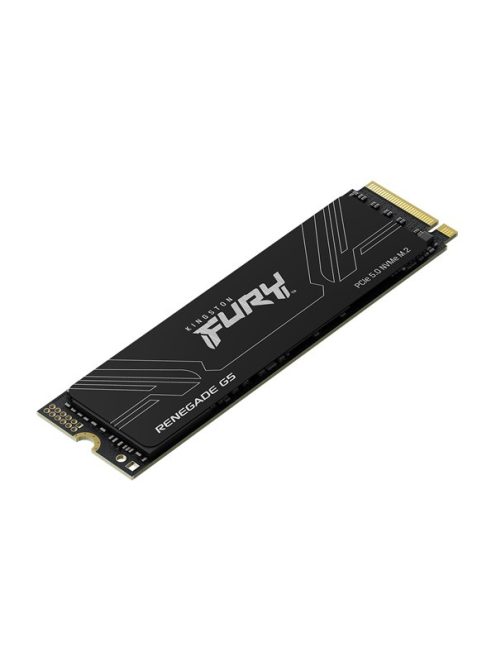

| Form factor |
M.2 2280 |
| Interface |
PCIe 5.0 x4 NVMe |
| Capacities2 |
1024GB, 2048GB, 4096GB |
| Controller |
SM2508 |
| NAND |
3D TLC |
| DRAM cache |
Yes |
| DirectStorage supported |
Yes |
| Sequential read/write1 |
1024GB – up to 14,200/11,000MB/s
2048GB – up to 14,700/14,000MB/s
4096GB – up to 14,800/14,000MB/s |
| Random 4K read/write1 |
1024GB - up to 2,200,000/2,150,000 IOPS
2048GB – 4096GB - up to 2,200,000/2,200,000 IOPS |
| Endurance (total bytes written)3 |
1024GB – 1.0PB
2048GB – 2.0PB
4096GB – 4.0PB |
| Power consumption4 |
1024GB – 0.27W avg / 6.6W @ 14.2G / 6.6W (MAX)
2048GB – 0.27W avg / 7.0W @ 14.7G / 7.0W (MAX)
4096GB – 0.27W avg / 7.1W @ 14.8G / 9.5W (MAX) |
| Storage temperature |
-40°C~85°C |
| Operating temperature |
0°C~70°C |
| Dimensions |
80mm x 22mm x 2.3mm |
| Weight |
1024GB – 7.3g
2048GB-4096GB – 7.7g |
| Vibration operating |
2.17G peak (7-800Hz) |
| Vibration non-operating |
20G peak (20-1000Hz) |
| MTBF |
2,000,000 hours |
| Warranty/Support5 |
Limited 5-year warranty with free technical support |
