| Product |

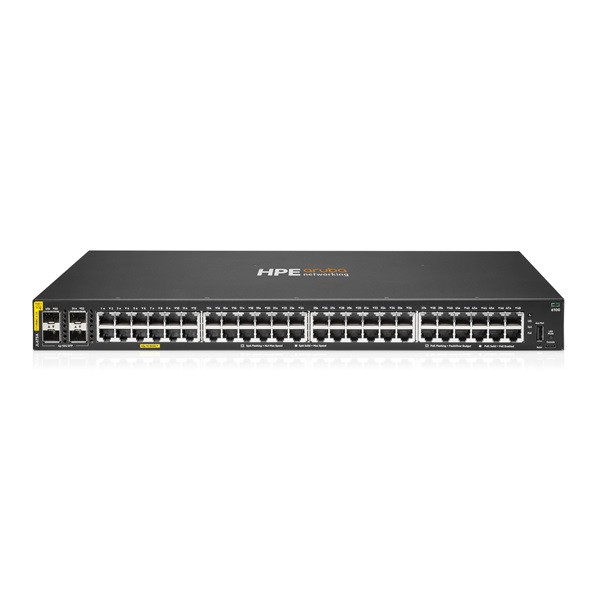

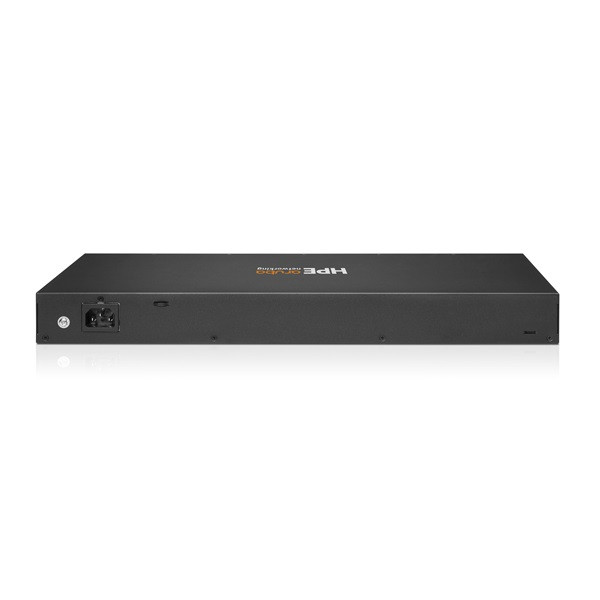

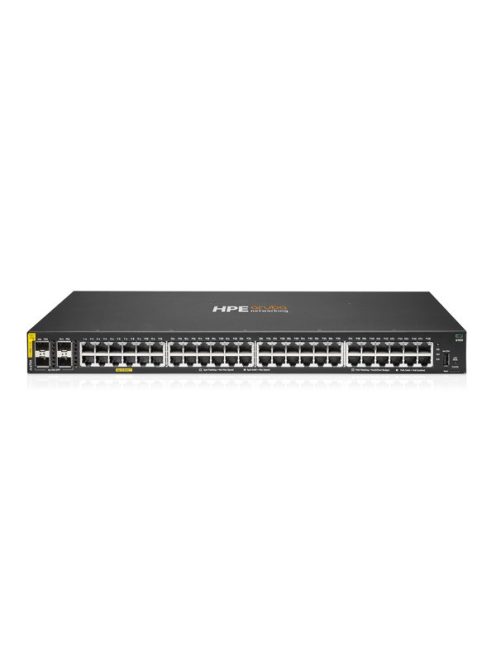

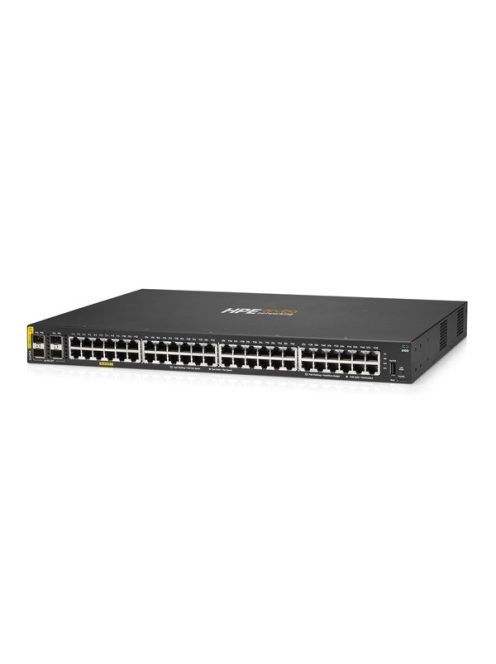

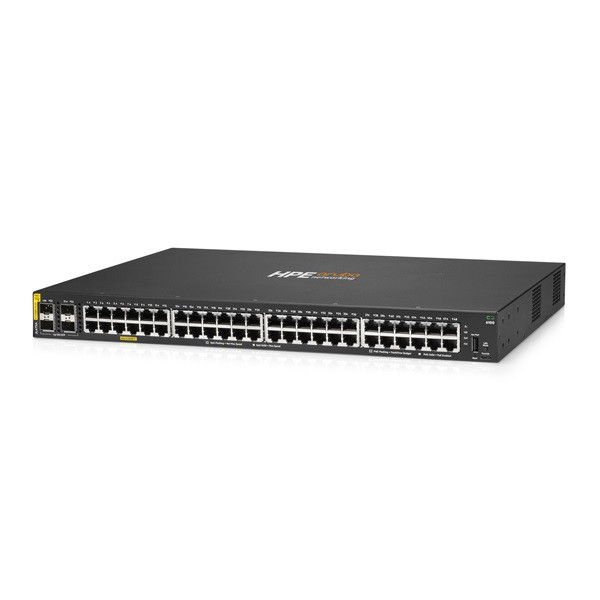

6100 48G CL4 PoE 4SFP+ 370W |
| Part Number |
JL675A |
| Switch Type |
Fixed Port |
| Network OS |
ArubaOS-CX |
| Routing / Switching |
Layer 2 Only |
| Management |
Fully Managed |
| Included Accessories |
|
| Included Accessories |
N/A |
| Physical Properties |
|
| Dimensions |
17.4(w) x 12(d) x 1.73(h) in.
(44.2 x 30.48 x 4.39 cm) |
| Weight |
11.07 lb (5.02 kg) |
| Port Types |
|
| LAN Ports |
48x ports 10/100/1000BASE-T Ports |
| Dual Personality Ports |
N/A |
| 1/2.5/5/10GbE |
N/A |
| SFP Ports |
N/A |
| SFP+ Ports |
4x 1G/10G SFP ports |
| SFP28 Ports |
N/A |
| SFP56 Ports |
N/A |
| XFP Ports |
N/A |
| X2 Ports |
N/A |
| CX4 Ports |
N/A |
| 10GBASE-T Ports |
N/A |
| QSFP+ Ports |
N/A |
| QSFP28 Ports |
N/A |
| QSFP56 Ports |
N/A |
| QSFP-DD Ports |
N/A |
| Module Slots |
N/A |
| Console Port |
1x USB-C Console Port
1x USB Type-A Host port |
| Power Supplies |
|
| Power supply slots |
Fixed power supply |
| Power supply requirements |
N/A |
| Memory and Processor |
|
| Memory and Processor |
CPU: Dual Core ARM Cortex A9 @ 1.016
Ghz
Memory and Flash: 4GB DDR3 16GB eMMC
Packet Buffer: 1MB |
| Gigabit Module |
N/A |
| 10Gb Module |
N/A |
| Management Module |
N/A |
| Fabric Module |
N/A |
| I/O Module |
N/A |
| Mounting |
|
| Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting. |
| Performance |
|
| 100 Mb Latency |
N/A |
| 1000 Mb Latency |
N/A |
| 10 Gbps Latency |
N/A |
| 40 Gbps Latency |
N/A |
| Throughput |
98.6 Mpps |
| Switching Capacity |
176 Gbps |
| Switch Fabric Speed |
N/A |
| Routing Table Size |
512 (IPv4); 512 (IPv6) |
| MAC Address Table Size |
8,192 |
| MACsec Capable Hardware |
No |
| MACsec Software Support |
No |
| MACsec with EAP-TLS |
No |
| MACsec Capable Uplink Ports |
No |
| Electrical Characteristics |
|
| Description |
N/A |
| Voltage |
100-127 VAC / 200-240 VAC |
| Current |
4.9 A / 2.4 A |
| Frequency |
50/60 Hz |
| Maximum Power Consumption |
Idle: 30.6W
Max Power (w/o PoE): 45W
Max Power (w/ PoE): 480W |
| Maximum Heat Dissipation |
N/A |
| PoE power |
370W |
| Notes |
N/A |
| Management |
|
| Management |
Aruba Central, command-line interface, out-of-band management (RJ-45 Ethernet), out-of-band management (serial RS-232), SNMP Manager, Telnet, FTP, terminal interface (serial RS-232C), modem inteface, IEEE 802.3 Ethernet MIB, Ethernet MIB |
