Graphics Processing

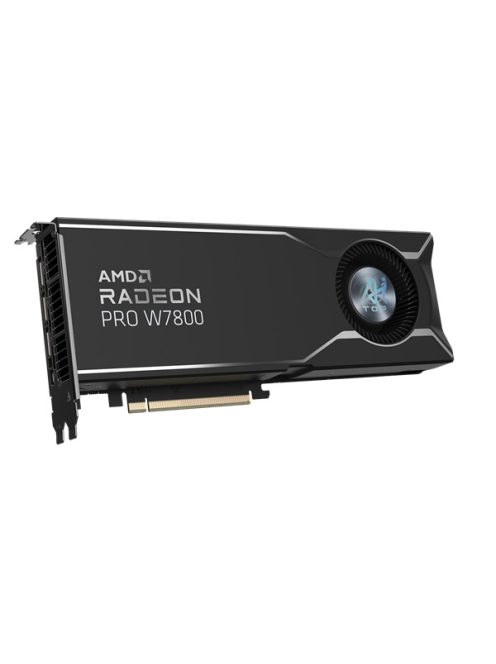

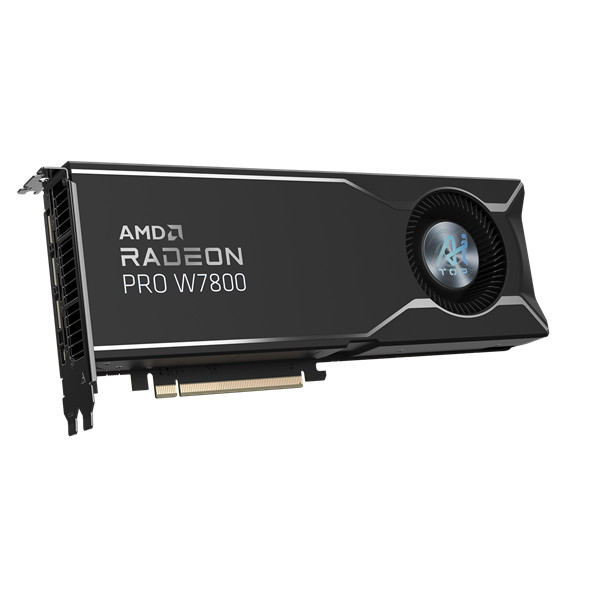

Radeon™ PRO W7800
-
Stream Processors
4480
-
Computing Units
70
-
AI Accelerators
140
-
Ray Accelerators
70
-
Peak Single Precision Matrix (FP32) Performance
45.2 TFLOPS
-
Peak Half Precision (FP16) Performance
90.5 TFLOPS
-
Memory Size
32 GB
-
Memory Type
GDDR6 with ECC
-
Memory Bus
256 bit
-
Memory Bandwidth (GB/sec)
576 GB/s
-
Card Bus
PCI-E 4.0 x 16
-
Digital max resolution
4x 4096 x 2160 (4K DCI) @ 120Hz with DSC
2x 6144 x 3456 (6K) 12-bit HDR @ 60Hz Uncompressed
1x 7680 x 4320 (8K) 12-bit HDR @ 60Hz Uncompressed
1x 12288 x 6912 (12K) @ 120Hz with DSC
-
Multi-view
4
-
Card size
L=293 W=126 H=42 mm, Dual Slot
-
Product Weight
1.25 kg
-
PCB Form
ATX
-
DirectX
DirectX 12 API
-
OpenGL
4.6
-
Max Power Consumption
260W Peak
-
Recommended PSU
700W
-
Power Connectors
8 Pin*2
-
Output
DisplayPort 2.1 x3
Mini DisplayPort 2.1 x1
-
Accessories
Manual
-
Supported Rendering Formats
1x Encode & Decode (AV1) , 2x Decode (H26/ 5HEVC,4K H264)
2x Encode (+AVI Encode and Decode)
-
Supported Technologies
AMD Viewport Boost , AMD Remote Workstation , AMD Radeon™ Media Engine , AMD Software PRO Edition , AMD Radeon™ VR Ready Creator , AMD Radeon™ ProRender
