Graphics Processing
Radeon™ RX 7700 XT
Core Clock
Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz)Game Clock* : up to 2276 MHz (Reference card: 2171 MHz)
Stream Processors
3456
Memory Clock
18 Gbps
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=302 W=130 H=56 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
700W
Power Connectors
8 Pin*2

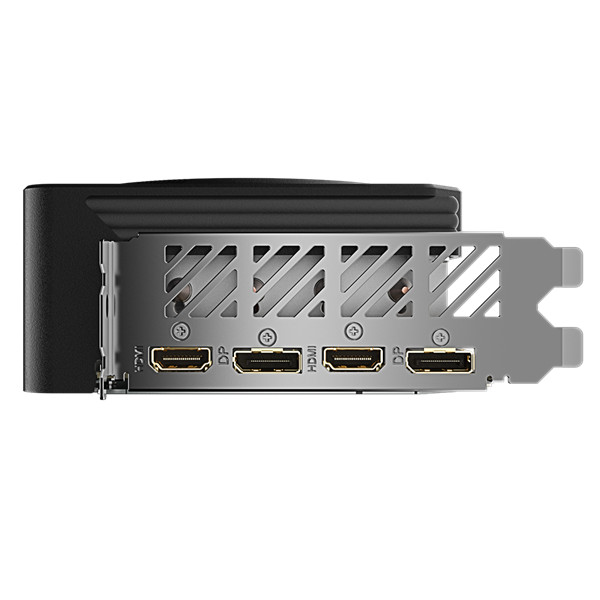

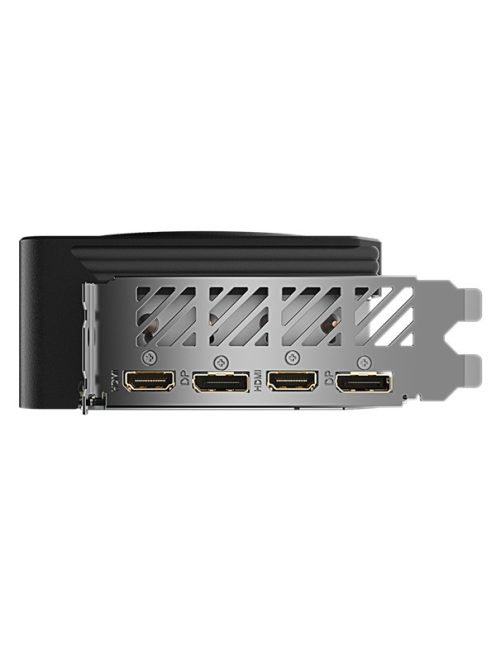

Output
DisplayPort 2.1 *2HDMI 2.1 *2
Accessories
Quick guide
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.GD-151* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
