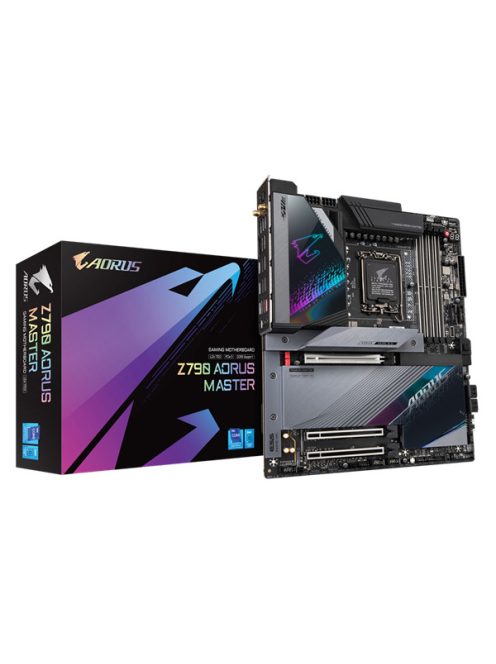

GIGABYTE Alaplap S1700 Z790 AORUS MASTER INTEL Z790, E-ATX

GIGABYTE Alaplap S1700 Z790 AORUS MASTER INTEL Z790, E-ATX
GIGABYTE Alaplap S1700 Z790 AORUS MASTER INTEL Z790, E-ATX
GIGABYTE Alaplap S1700 Z790 AORUS MASTER INTEL Z790, E-ATX
GIGABYTE Alaplap S1700 Z790 AORUS MASTER INTEL Z790, E-ATX
GIGABYTE Alaplap S1700 Z790 AORUS MASTER INTEL Z790, E-ATX
Raktáron  2 db
GIGABYTE Alaplap S1700 Z790 AORUS MASTER INTEL Z790, EATX
Kedvencekhez
Ajánlom
Nyomtat
Összehasonlítás
Kérdés a termékről
Adatok
Gyártó
GIGABYTE
Kivitel
Dobozos
Memória órajel
4800
SATA III
4
USB 2.0
4
USB 3.0
0
PCI foglalatok száma
0
USB 3.1
15
Párhuzamos port
Nincs
Soros port
Nincs
Quad Channel
Nincs
M.2 foglalat
Van
Foglalat típusa
S1700
Chipset gyártó
Intel
Grafikus foglalat
3 x PCI-Ex16
Form Factor
E-ATX
LAN1
100/1000/10000 Mb/s
Max memória
128
Raid
Igen
PS/2 Port
0
VGA integrált
Nincs
PCI-E foglalatok száma
0
Wireless
Van
HDMI
Nincs
Display Port
Van
Thunderbolt
Nincs
D-Sub
Nincs
audio
7.1 HD
DVI
Nincs
memória foglalatok száma
4
Garancia
36 hónap
Gyártói cikkszám
Z790 AORUS MASTER
Esztétikai besorolás
Bontatlan
Gyártó
GIGABYTE
Memória típus
DDR5
EAN
4719331848934
Termék állapota
Új
EAN
4719331848934
Tömeg
1,31 kg/db
Részletek
  • CPU
    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    2. L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.
  • Chipset
    1. Intel® Z790 Express Chipset
  • Memory
    1. Support for DDR5 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® ALC1220-VB CODEC
      * The front panel line out jack supports DSD audio.
    2. ESS ES9118 DAC chip
    3. Support for DTS:X® Ultra
    4. High Definition Audio
    5. 2/4/5.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
    6. Support for S/PDIF Out
  • LAN
    1. Marvell® AQtion AQC113C 10GbE LAN chip
      (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Intel® Killer™ Wi-Fi 6E AX1690
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
      * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
    Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    3. 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    4. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    1. 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header)
    Chipset+2 USB 3.2 Gen 2 Hubs:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    2. 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+2 USB 3.2 Gen 1 Hubs:
    1. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 4 x system fan headers
    6. 4 x system fan/water cooling pump headers
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 5 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    14. 2 x USB 3.2 Gen 1 headers
    15. 2 x USB 2.0/1.1 headers
    16. 1 x noise detection header
    17. 2 x Thunderbolt™ add-in card connectors
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    19. 1 x power button
    20. 1 x reset button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper
    23. 2 x temperature sensor headers
    24. Voltage Measurement Points

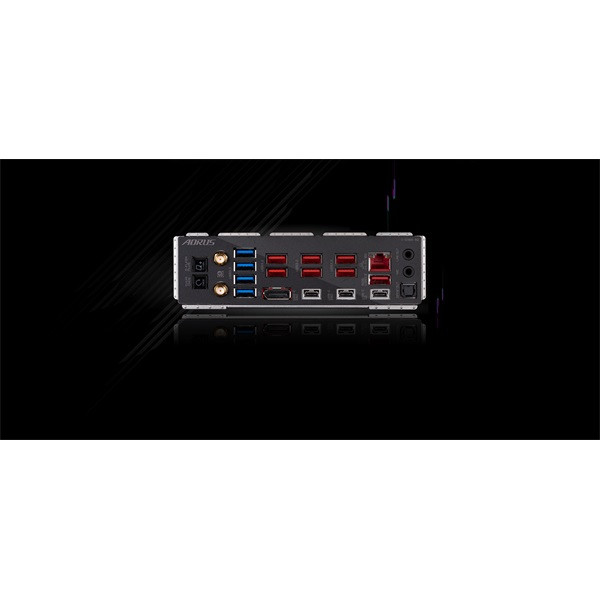

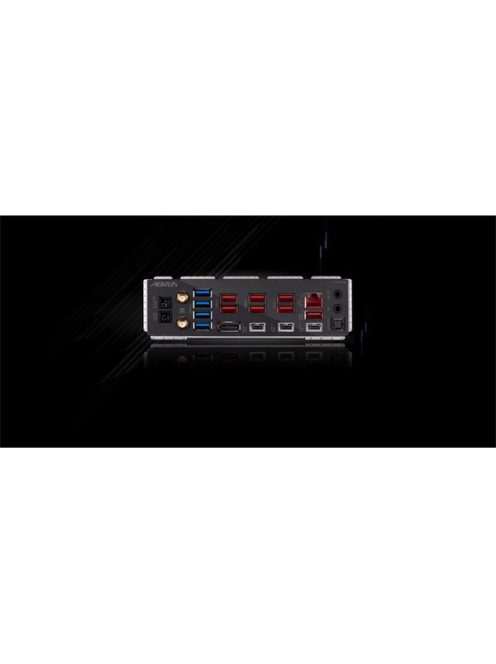

  • Back Panel Connectors
    1. 1 x Q-Flash Plus button
    2. 1 x Clear CMOS button
    3. 2 x SMA antenna connectors (2T2R)
    4. 1 x DisplayPort
    5. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    6. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support
    7. 7 x USB 3.2 Gen 2 Type-A ports (red)
    8. 4 x USB 3.2 Gen 1 ports
    9. 1 x RJ-45 port
    10. 1 x optical S/PDIF Out connector
    11. 2 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    7. Noise detection
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. E-ATX Form Factor; 30.5cm x 26.0cm
