GIGABYTE Alaplap S1700 Z790 AORUS ELITE AX INTEL Z790, ATX

GIGABYTE Alaplap S1700 Z790 AORUS ELITE AX INTEL Z790, ATX
GIGABYTE Alaplap S1700 Z790 AORUS ELITE AX INTEL Z790, ATX
GIGABYTE Alaplap S1700 Z790 AORUS ELITE AX INTEL Z790, ATX
GIGABYTE Alaplap S1700 Z790 AORUS ELITE AX INTEL Z790, ATX
GIGABYTE Alaplap S1700 Z790 AORUS ELITE AX INTEL Z790, ATX
Raktáron
110 590 Ft bruttó
GIGABYTE Alaplap S1700 Z790 AORUS ELITE AX INTEL Z790, ATX
Kedvencekhez
Ajánlom
Nyomtat
Összehasonlítás
Kérdés a termékről
Adatok
Gyártó
GIGABYTE
Kivitel
Dobozos
Memória órajel
4800
SATA III
6
USB 2.0
8
USB 3.0
0
PCI foglalatok száma
0
USB 3.1
9
Párhuzamos port
Nincs
Soros port
Nincs
Quad Channel
Nincs
M.2 foglalat
Van
Foglalat típusa
S1700
Chipset gyártó
Intel
Grafikus foglalat
2 x PCI-Ex16x
Form Factor
ATX
LAN1
100/1000/2500 Mb/s
Max memória
128
Raid
Igen
PS/2 Port
0
VGA integrált
Nincs
PCI-E foglalatok száma
1
Wireless
Van
HDMI
Van
Display Port
Van
Thunderbolt
Nincs
D-Sub
Nincs
audio
7.1 HD
DVI
Nincs
memória foglalatok száma
4
Garancia
36 hónap
Gyártói cikkszám
Z790 AORUS ELITE AX
Esztétikai besorolás
Bontatlan
Gyártó
GIGABYTE
Memória típus
DDR5
EAN
4719331849467
Termék állapota
Új
EAN
4719331849467
Tömeg
1,23 kg/db
A vásárlás után járó pontok
1 106 Ft
Részletek
  • CPU
    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z790 Express Chipset
  • Memory
    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Intel® Wi-Fi 6E AX211
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
    Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
    3. 6 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • USB
    Chipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
    2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 1 x system fan/water cooling pump header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 4 x M.2 Socket 3 connectors
    10. 6 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    14. 1 x USB 3.2 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 2 x Thunderbolt™ add-in card connectors
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x reset button
    19. 1 x Q-Flash Plus button
    20. 1 x Clear CMOS button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper

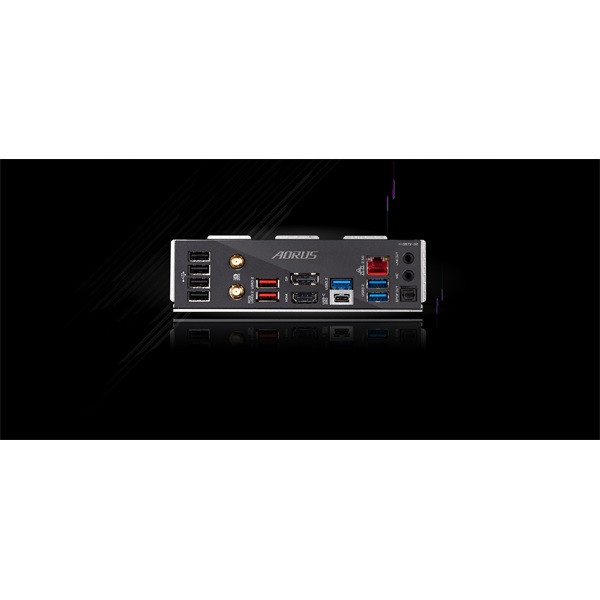

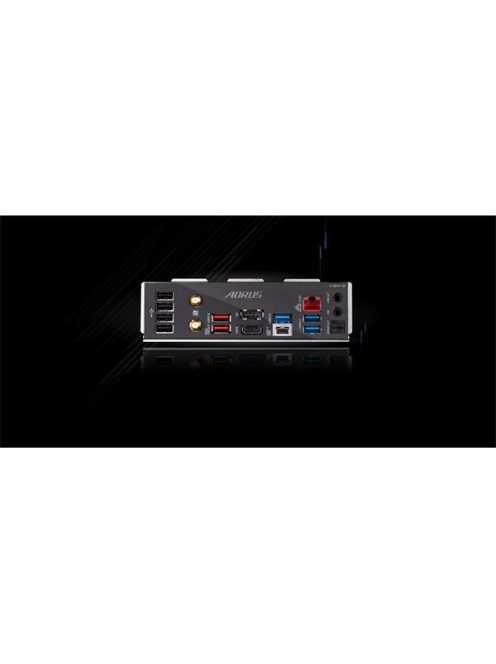

  • Back Panel Connectors
    1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red)
    3. 3 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x HDMI 2.0 port
    7. 1 x DisplayPort
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 2 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
