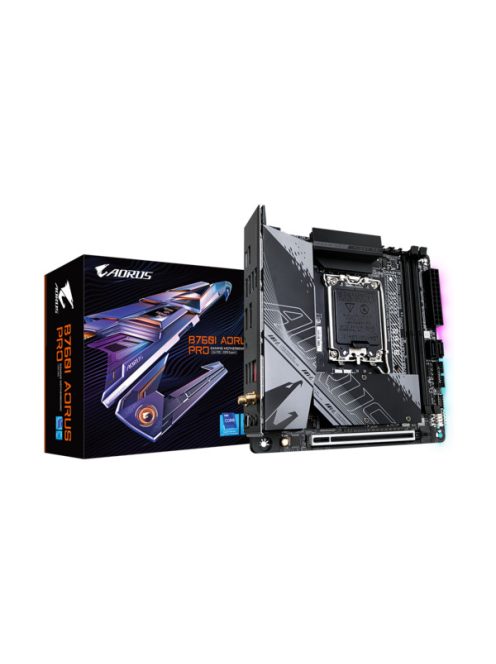

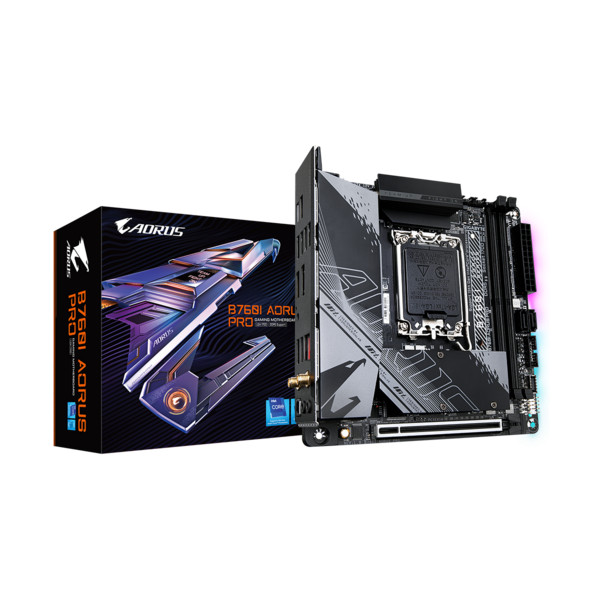

GIGABYTE Alaplap S1700 B760I AORUS PRO INTEL B760, mini-ITX

GIGABYTE Alaplap S1700 B760I AORUS PRO INTEL B760, mini-ITX
GIGABYTE Alaplap S1700 B760I AORUS PRO INTEL B760, mini-ITX
GIGABYTE Alaplap S1700 B760I AORUS PRO INTEL B760, mini-ITX
GIGABYTE Alaplap S1700 B760I AORUS PRO INTEL B760, mini-ITX
GIGABYTE Alaplap S1700 B760I AORUS PRO INTEL B760, mini-ITX
Raktáron
88 790 Ft bruttó
GIGABYTE Alaplap S1700 B760I AORUS PRO INTEL B760, mini-ITX
Kedvencekhez
Ajánlom
Nyomtat
Összehasonlítás
Kérdés a termékről
Adatok
Gyártó
GIGABYTE
Kivitel
Dobozos
Memória órajel
4800
SATA III
2
USB 2.0
4
USB 3.0
0
PCI foglalatok száma
0
USB 3.1
5
Párhuzamos port
Nincs
Soros port
Nincs
Quad Channel
Nincs
M.2 foglalat
Van
Foglalat típusa
S1700
Chipset gyártó
Intel
Grafikus foglalat
PCI-Ex16
Form Factor
m-ITX
LAN1
100/1000/2500 Mb/s
Max memória
96
Raid
Igen
PS/2 Port
0
VGA integrált
Nincs
PCI-E foglalatok száma
0
Wireless
Van
HDMI
Van
Display Port
Van
Thunderbolt
Nincs
D-Sub
Nincs
audio
7.1 HD
DVI
Nincs
memória foglalatok száma
2
Garancia
36 hónap
Gyártói cikkszám
B760I AORUS PRO
Esztétikai besorolás
Bontatlan
Gyártó
GIGABYTE
Memória típus
DDR5
EAN
4719331854843
Termék állapota
Új
EAN
4719331854843
Tömeg
1,28 kg/db
A vásárlás után járó pontok
888 Ft
Részletek

  • CPU

    1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    2. L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.

  • Chipset

    1. Intel® B760 Express Chipset

  • Memory

    1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out

  • LAN

    1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

  • Storage Interface

    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 2 x SATA 6Gb/s connectors
    RAID 0 and RAID 1 support for SATA storage devices

  • USB

    Chipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    5. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 3.2 Gen 1 Hub:
    1. 4 x USB 3.2 Gen 1 ports on the back panel

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x CPU fan/water cooling pump header
    5. 1 x system fan header
    6. 1 x addressable LED strip header
    7. 1 x RGB LED strip header
    8. 2 x M.2 Socket 3 connectors
    9. 2 x SATA 6Gb/s connectors
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x speaker header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    14. 1 x USB 3.2 Gen 1 header
    15. 1 x USB 2.0/1.1 header
    16. 1 x reset jumper
    17. 1 x Clear CMOS jumper
    18. 1 x chassis intrusion header

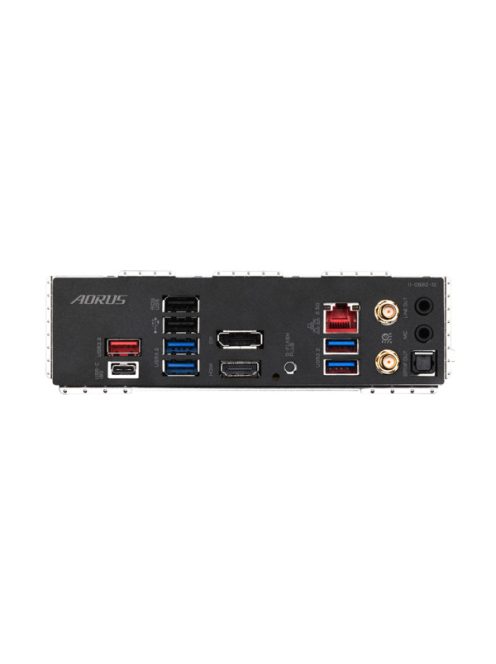

  • Back Panel Connectors

    1. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 2 x USB 2.0/1.1 ports
    5. 1 x DisplayPort
    6. 1 x HDMI port
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 2 x SMA antenna connectors (2T2R)
    10. 1 x optical S/PDIF Out connector
    11. 2 x audio jacks

  • I/O Controller

    1. iTE® I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

  • Form Factor

    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
