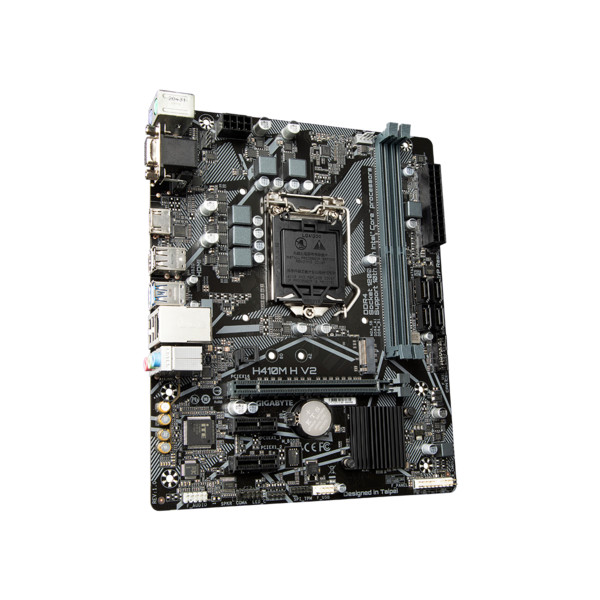

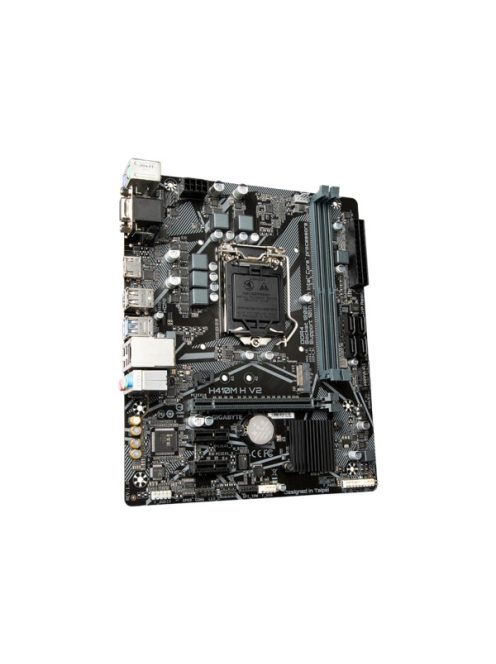

GIGABYTE Alaplap S1200 H410M H V2 INTEL H470, mATX

Adatok

Gyártó

GIGABYTE

Kivitel

Dobozos

Memória órajel

2933

SATA III

USB 2.0

USB 3.0

PCI foglalatok száma

USB 3.1

Párhuzamos port

Nincs

Soros port

Nincs

Quad Channel

Nincs

M.2 foglalat

Van

Foglalat típusa

S1200

Chipset gyártó

Intel

Grafikus foglalat

PCI-Ex16

Form Factor

mATX

LAN1

10/100/1000 Mb/s

Max memória

Raid

Igen

PS/2 Port

VGA integrált

Nincs

PCI-E foglalatok száma

Wireless

Nincs

HDMI

Van

Display Port

Nincs

Thunderbolt

Nincs

D-Sub

Van

audio

7.1 HD

DVI

Nincs

memória foglalatok száma

Garancia

36 hónap

Gyártói cikkszám

H410M H V2

Esztétikai besorolás

Bontatlan

Gyártó

GIGABYTE

Memória típus

DDR4

EAN

4719331815387

Termék állapota

Új

EAN

4719331815387

Tömeg

780 g/db

Részletek

CPU
1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® H410 Express Chipset
Memory
1. Intel^® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
1. Intel^® GbE LAN chip (1 Gbit/100 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
  (The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
4. Intel^® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
12. 1 x serial port header
13. 1 x Clear CMOS jumper

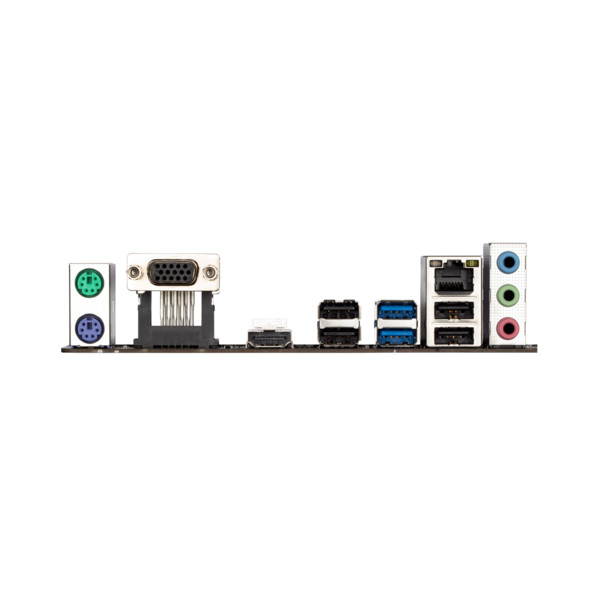

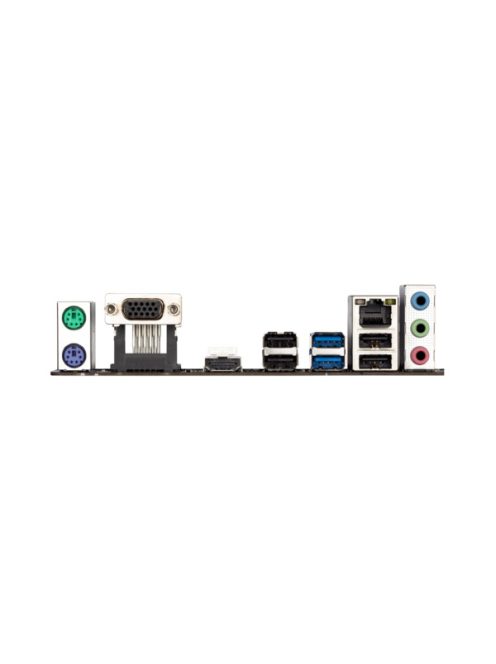

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  Ambient LED
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  Smart Backup
  System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 22.6cm x 18.5cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
