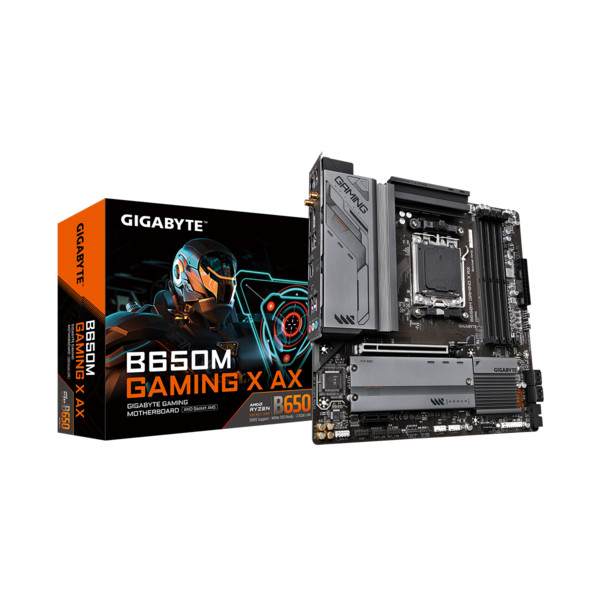

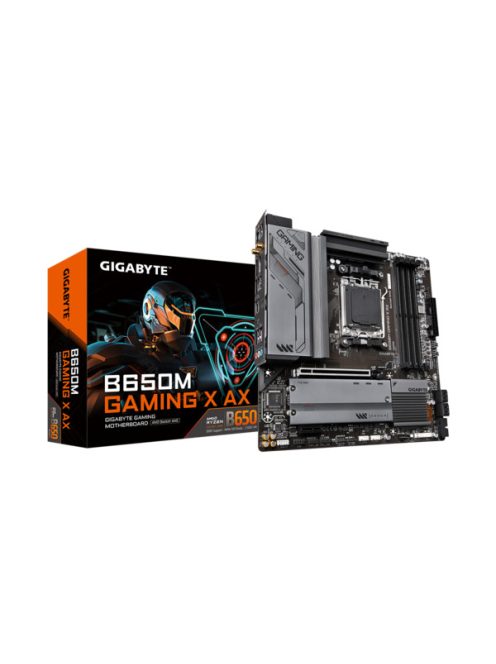

GIGABYTE Alaplap AM5 B650M GAMING X AX AMD B650, mATX

Nincs raktáron

GIGABYTE Alaplap AM5 B650M GAMING X AX AMD B650, mATX

Adatok

Gyártó

GIGABYTE

Kivitel

Dobozos

Memória órajel

4800

SATA III

USB 2.0

USB 3.0

PCI foglalatok száma

USB 3.1

Párhuzamos port

Nincs

Soros port

Nincs

Quad Channel

Nincs

M.2 foglalat

Van

Foglalat típusa

AM5

Chipset gyártó

AMD

Grafikus foglalat

2 x PCI-Ex16x

Form Factor

mATX

LAN1

100/1000/2500 Mb/s

Max memória

128

Raid

Igen

PS/2 Port

VGA integrált

Nincs

PCI-E foglalatok száma

Wireless

Nincs

HDMI

Van

Display Port

Van

Thunderbolt

Nincs

D-Sub

Nincs

audio

7.1 HD

DVI

Nincs

memória foglalatok száma

Garancia

36 hónap

Gyártói cikkszám

B650M GAMING X AX

Esztétikai besorolás

Bontatlan

Gyártó

GIGABYTE

Memória típus

DDR5

EAN

4719331849993

Termék állapota

Új

EAN

4719331849993

Tömeg

1,11 kg/db

Részletek

CPU
1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD B650
Memory
1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
  * Support for DisplayPort 1.4 version and HDR.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel^® Wi-Fi 6E AX210 (For PCB rev. 1.1)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface
CPU:
1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
1. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU + USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports on the back panel
Chipset:
1. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
12. 1 x USB 3.2 Gen 1 header
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
15. 1 x serial port header
16. 1 x reset button
17. 1 x reset jumper
18. 1 x Clear CMOS jumper

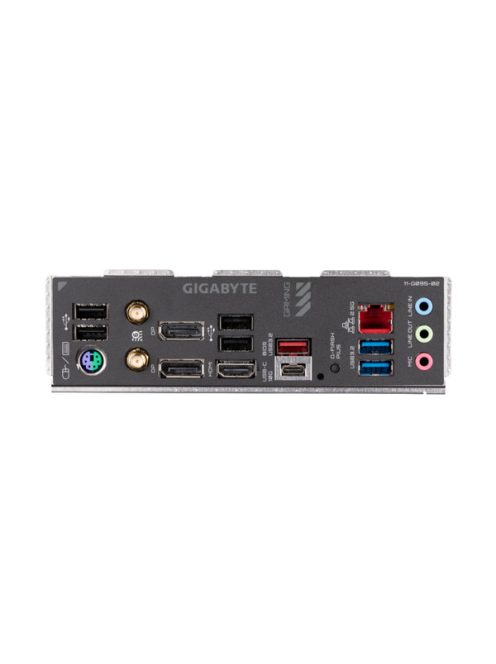

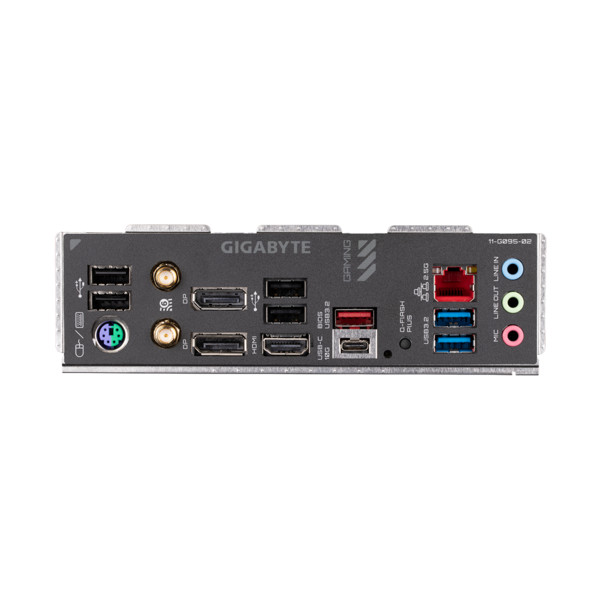

Back Panel Connectors
1. 4 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 2 x SMA antenna connectors (2T2R)
4. 2 x DisplayPorts
5. 1 x HDMI port
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
8. 1 x Q-Flash Plus button
9. 1 x RJ-45 port
10. 2 x USB 3.2 Gen 1 ports
11. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm
