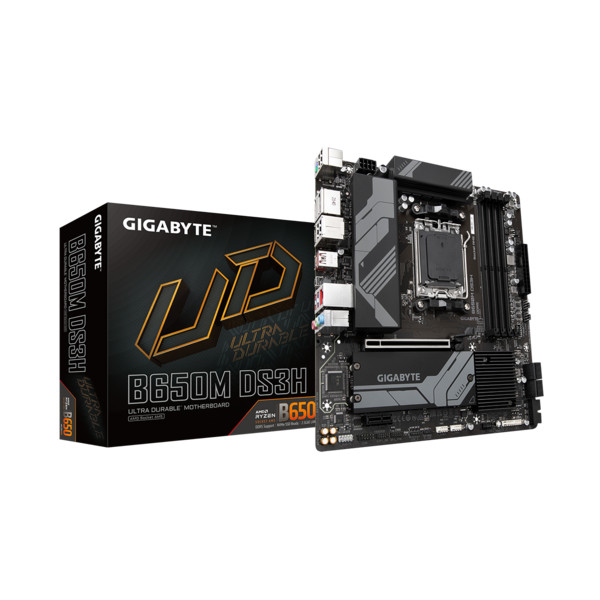

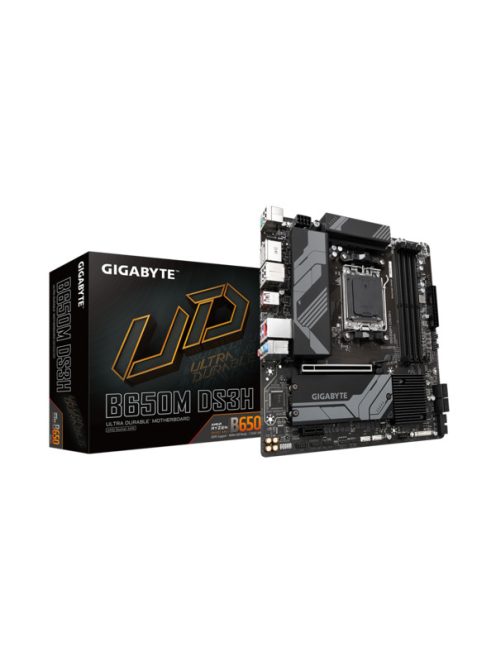

GIGABYTE Alaplap AM5 B650M DS3H AMD B650, mATX

GIGABYTE Alaplap AM5 B650M DS3H AMD B650, mATX
GIGABYTE Alaplap AM5 B650M DS3H AMD B650, mATX
GIGABYTE Alaplap AM5 B650M DS3H AMD B650, mATX
GIGABYTE Alaplap AM5 B650M DS3H AMD B650, mATX
GIGABYTE Alaplap AM5 B650M DS3H AMD B650, mATX
Raktáron  8 db
GIGABYTE Alaplap AM5 B650M DS3H AMD B650, mATX
Kedvencekhez
Ajánlom
Nyomtat
Összehasonlítás
Kérdés a termékről
Adatok
Gyártó
GIGABYTE
Kivitel
Dobozos
Memória órajel
5200
SATA III
4
USB 2.0
8
USB 3.0
0
PCI foglalatok száma
0
USB 3.1
7
Párhuzamos port
Nincs
Soros port
Nincs
Quad Channel
Nincs
M.2 foglalat
Van
Foglalat típusa
AM5
Chipset gyártó
AMD
Grafikus foglalat
PCI-Ex16
Form Factor
mATX
LAN1
100/1000/2500 Mb/s
Max memória
128
Raid
Igen
PS/2 Port
0
VGA integrált
Nincs
PCI-E foglalatok száma
1
Wireless
Nincs
HDMI
Van
Display Port
Van
Thunderbolt
Nincs
D-Sub
Nincs
audio
7.1 HD
DVI
Nincs
memória foglalatok száma
4
Garancia
36 hónap
Gyártói cikkszám
B650M DS3H
Gyártó
GIGABYTE
Memória típus
DDR5
EAN
4719331849825
Tömeg
990 g/db
Részletek
  • CPU
    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B650
  • Memory
    1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)

    Support for up to 3 displays at the same time
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    Chipset:
    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
  • Storage Interface
    CPU:
    1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
    Chipset:
    1. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    CPU + USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    12. 1 x USB 3.2 Gen 1 header
    13. 2 x USB 2.0/1.1 headers
    14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    15. 1 x serial port header
    16. 1 x reset button
    17. 1 x reset jumper
    18. 1 x Clear CMOS jumper

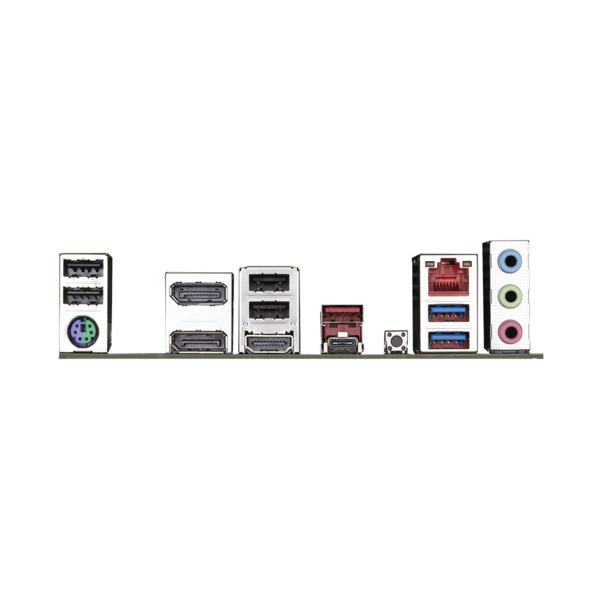

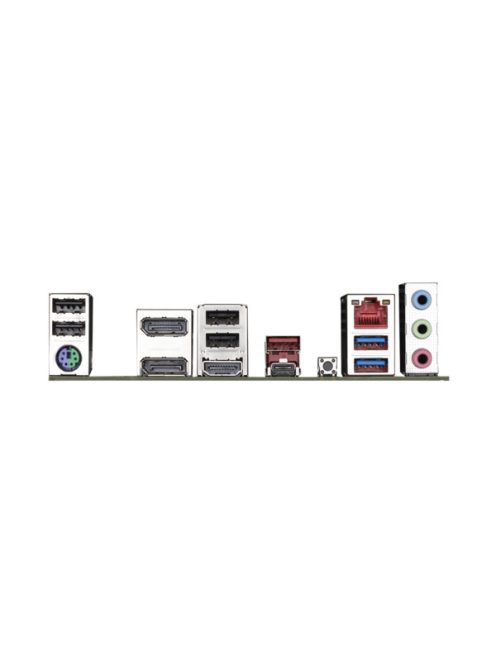

  • Back Panel Connectors
    1. 4 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 2 x DisplayPorts
    4. 1 x HDMI port
    5. 1 x USB 3.2 Gen 2 Type-A port (red)
    6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 2 x USB 3.2 Gen 1 ports
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
