GIGABYTE Alaplap AM4 A520M H AMD A520, mATX

Name: GIGABYTE Alaplap AM4 A520M H AMD A520, mATX
Brand: GIGABYTE
Price: 36290 HUF
Availability: OutOfStock

GIGABYTE Alaplap AM4 A520M H AMD A520, mATX

Nincs raktáron

36 290 Ft bruttó

GIGABYTE Alaplap AM4 A520M H AMD A520, mATX

Adatok

Gyártó

GIGABYTE

Kivitel

Dobozos

Memória órajel

3200

SATA III

SATA II

USB 2.0

USB 3.0

PCI foglalatok száma

USB 3.1

Párhuzamos port

Nincs

Soros port

Nincs

Quad Channel

Nincs

M.2 foglalat

Van

Foglalat típusa

AM4

Chipset gyártó

AMD

Grafikus foglalat

PCI-Ex16

Form Factor

mATX

LAN1

10/100/1000 Mb/s

Max memória

Raid

Igen

PS/2 Port

VGA integrált

Nincs

PCI-E foglalatok száma

Wireless

Nincs

HDMI

Van

Display Port

Nincs

Thunderbolt

Nincs

D-Sub

Nincs

audio

7.1 HD

DVI

Van

memória foglalatok száma

Garancia

36 hónap

Gyártói cikkszám

A520M H

Esztétikai besorolás

Bontatlan

Gyártó

GIGABYTE

Memória típus

DDR4

EAN

4719331809683

Termék állapota

Új

EAN

4719331809683

Garancia (hónap)

Tömeg

690 g/db

A vásárlás után járó pontok

363 Ft

Részletek

CPU
1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD A520
Memory
1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. 3rd Gen AMD Ryzen™ Processors:
  Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
  Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
1. Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1. 2 x PCI Express x1 slots, supporting PCIe 3.0
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
1. 4 x SATA 6Gb/s connectors
2. Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x speaker header
12. 1 x USB 3.2 Gen 1 header
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
15. 1 x serial port header
16. 1 x chassis intrusion header
17. 1 x Clear CMOS jumper

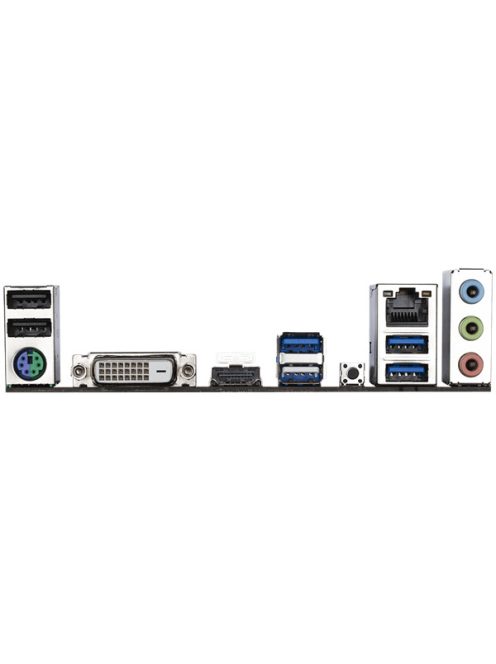

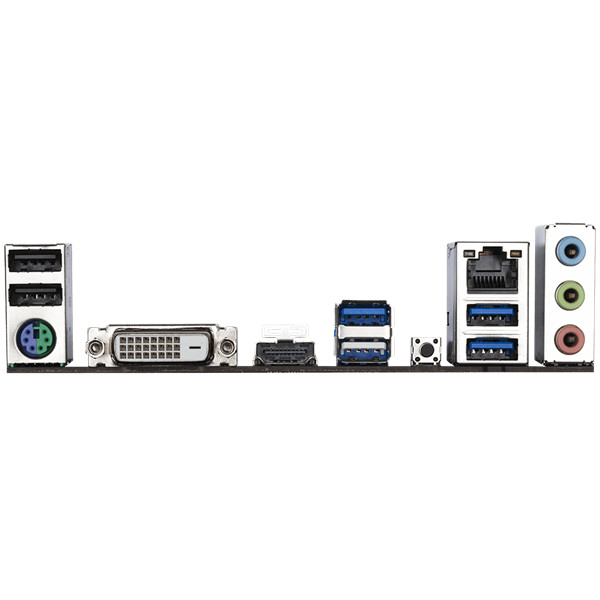

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x Q-Flash Plus button
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 20.5cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
