Technical Specifications:
General
Device Interfaces
- 802.11 n/g wireless LAN
- 10/100 Fast Ethernet Port
- Reset Button
- WPS Button
LEDs
- Status/WPS
- 3 Segment Wi-Fi Signal Strength Indicator
Standards
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.3u
Antennas
Mimimum System Requirements
- Windows® 10, Windows® 8.1, Windows® 8, Windows® 7 , or Mac OS® X (v10.7)
- Internet Explorer® 11, Mozilla® Firefox® v28, Google Chrome v33, or Safari v7
Functionality
Wireless Security
- Wi-Fi Protected Access (WPA/WPA2)
- WPS (PBC)
Advanced Features
- D-Link One-Touch Extender Setup
Device Management
- Supports QRS Mobile app for iPhone, iPad, Pod touch, and Android mobile devices
- Web UI
Physical Dimensions
- 3.85 x 2.00 x 1.91 inches
Weight
Power
- Input: 100 to 240 V AC, 50/60 Hz
Temperature
- Operating: 32 to 104 °F
- Storage: -4 to 158 °F
Humidity
- Operating: 10% to 90% non-condensing
- Storage: 5% to 95% non-condensing
Certifications
- FCC
- Wi-Fi Certified
- IC
- UL
Package Contents
What’s Inside

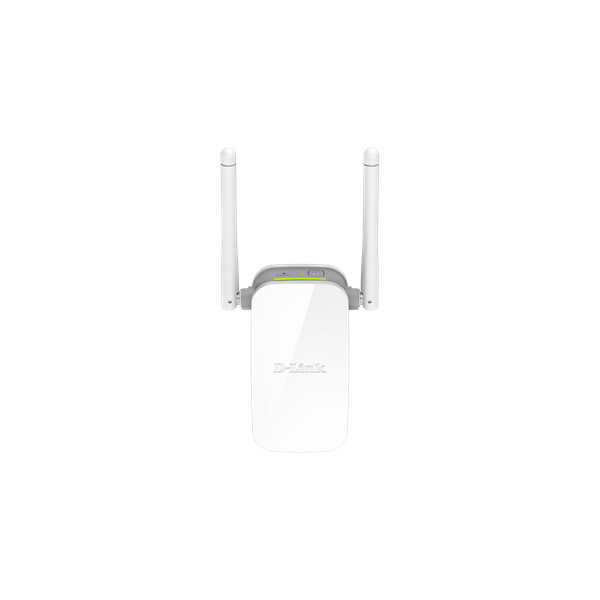

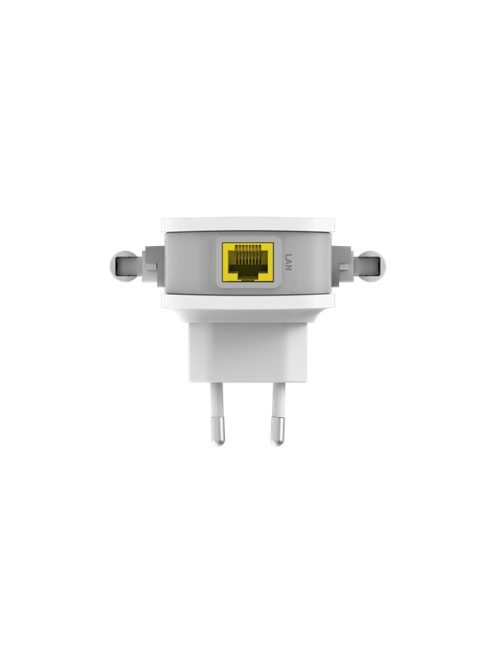

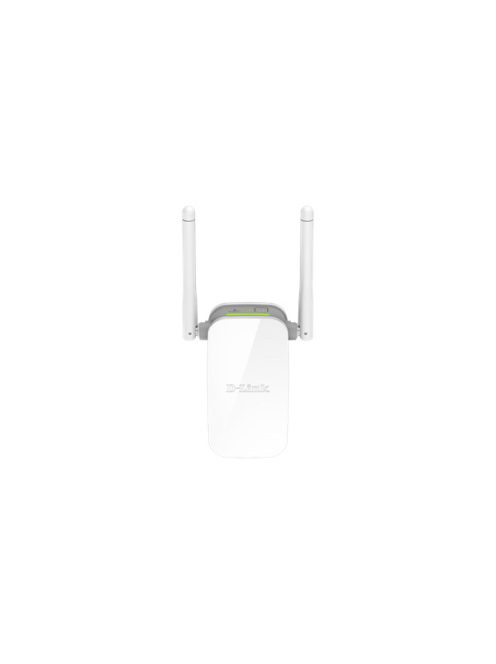

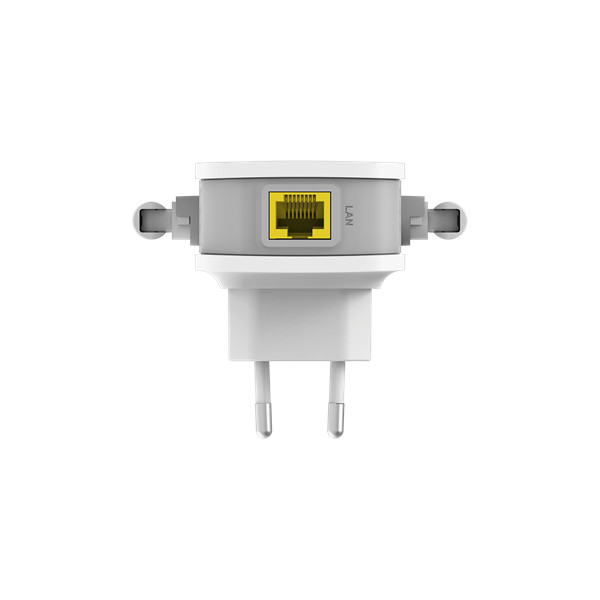

- N300 Wi-Fi Range Extender
- Quick Installation Guide
- Wi-Fi Configuration Card
