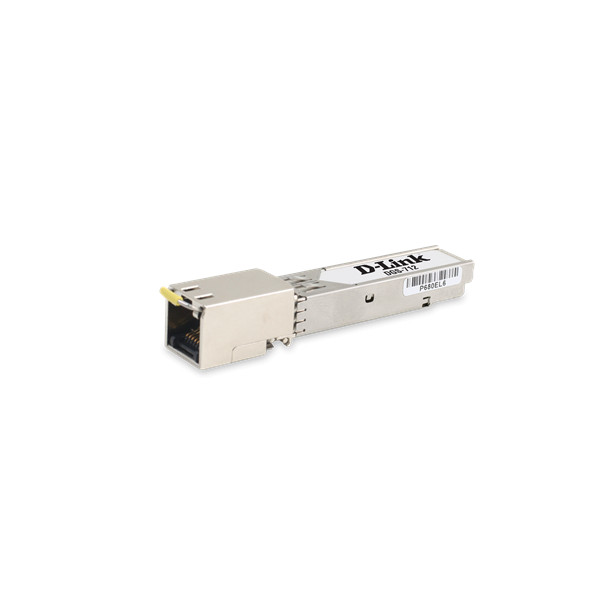

D-LINK Switch SFP Modul 1000Base-T, DGS-712

Standard


• IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Transceiver Type


• SFP (Small Form Pluggable)

Connector


• RJ-45

Auto MDI/MDIX


• Automatic crossover detection enabled
• External crossover cable not required

Data Rate


• 1,000 Mbps (IEEE 802.3 compatible)
• 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only

Cable Type


• Cat. 5 twisted-pair cable

Maximum Cable Distance Coverage


• 100 meters

Supply Current


• 350mA (typical)
• 400mA (maximum)
• 1.3W max power over full range of voltage and temperature

Input Voltage


• 3.1V (minimum)
• 3.3V (typical)
• 3.5V (maximum)
• Referenced to GND

Surge Current


• 30mA
• Hot plug above steady state current

Dimensions (W x D x H)


• .47” x 2.95” x .47” (11mm x 75mm x 11mm)

Weight


• .53 lbs (0.2 kg)

Operating Temperature


• 32° to 185° F (0° to 85° C)

Storage Temperature


• -40° to 185° F (-40° to 85° C)

Waranty


• 2-Year Limited¹

Ordering Information

DGS-712


• 1000BASE-T SFP Transceiver
