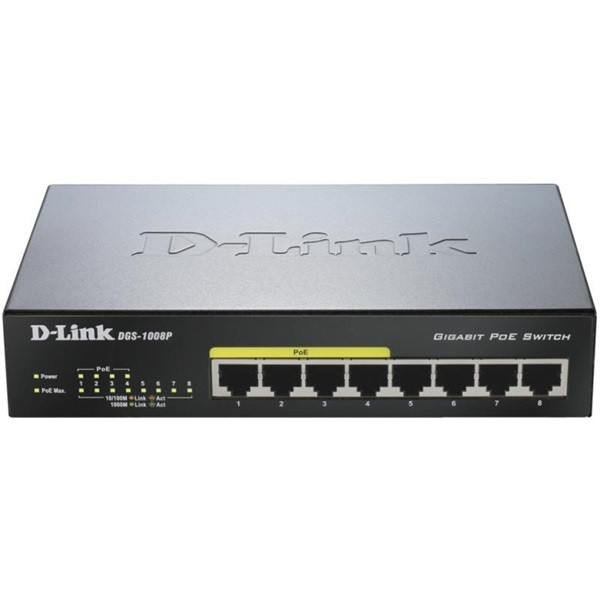

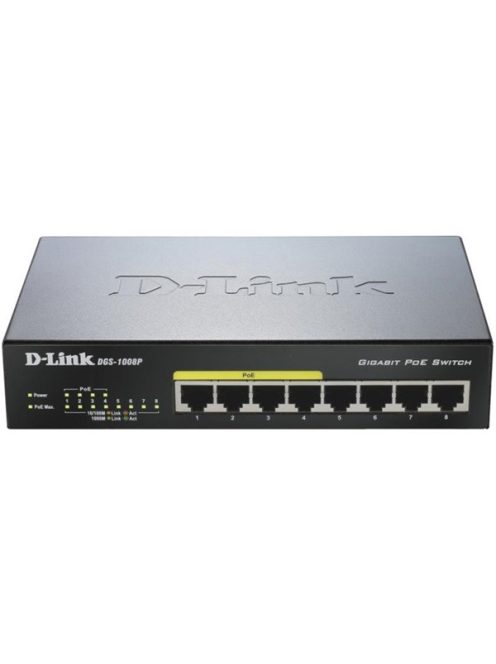

| D-Link DGS-1008P Specifications |
| Number of Ports |
Eight 10/100/1000 Mbps ports (4 PoE enabled Port) ports |
| Switching Capacity |
16Gbps |
| Standards |
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- ANSI/IEEE 802.3 NWay Auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
|
| PoE Features |
- Supports IEEE 802.3af
- Supplies power to PD: up to 15.4Watts
- Total PoE budget: 52Watts
|
| Data Transfer Rates |
Ethernet
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
Fast Ethernet
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
Gigabit Ethernet
|
| Network Cables |
10BASE-T:
- UTP CAT 3/4/5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
|
| Media Interface Exchange |
Auto MIDI/MDIX adjustment for all parts |
| LED Indicators |
Per port: Link/Activity/Speed/PoE Status
Per device: Power/PoE Max |
| Transmission Method |
Store-and-forward |
| MAC Address Table |
4K Entries per device |
| MAC Address Learning |
Automatic update |
| MAC Address Filtering/Forwarding Rates |
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
|
| RAM Buffer |
192 KBytes per device |
| Power Adapter |
- AC input: 100 to 240VAC, 50/60 Hz
- DC output: DC 48V/1.25 A (60Watts)
|
| Power Consumption |
Power On (Standby):
- DC input: 0.48 Watts
- AC input: 2.1 Watts
Maximum (PoE Off)
- DC input: 4.48 Watts
- AC input: 6.2 Watts
Maximum (PoE On)
- DC input: 57.83 Watts
- AC input: 63.2 Watts
|
| Operating Temperature |
Device:
- 32 to 122 °F (0 to 50 °C)
External Power Adapter:
- 32 to 104 °F (0 to 40 °C )
|
| Storage Temperature |
104 to 158 °F (-40 to 70 °C ) |
| Storage Humidity |
0% to 95% RH non-condensing |
| Dimensions |
7.5 x 4.7 x 1.5 inches (190 x120 x 38 mm) |
| Certifications |
- FCC Class B
- ICES-003 Class B
- CE Class B
- C-Tick Class B
- VCCI Class B
- cUL
- LVD
|
