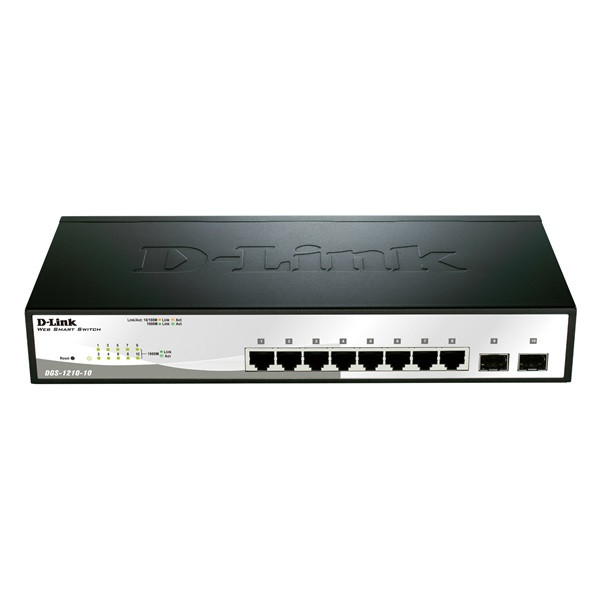

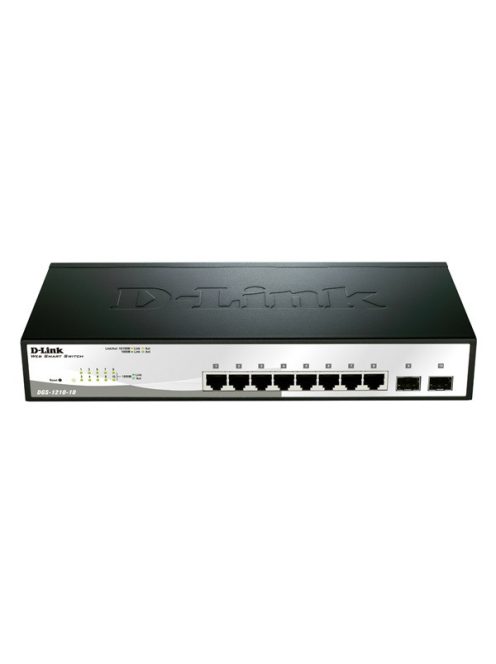

D-LINK Switch 8x1000Mbps + 2xGigabit SFP Menedzselhető Rackes, DGS-1210-10/E

D-LINK Switch 8x1000Mbps + 2xGigabit SFP Menedzselhető Rackes, DGS-1210-10/E
D-LINK Switch 8x1000Mbps + 2xGigabit SFP Menedzselhető Rackes, DGS-1210-10/E
Raktáron  3 db
D-LINK Switch 8x1000Mbps + 2xGigabit SFP Menedzselhető Rackes, DGS-1210-10/E
Kedvencekhez
Ajánlom
Nyomtat
Összehasonlítás
Kérdés a termékről
Adatok
Gyártó
DLINK
Switch típus
Fixed port
Menedzselhetőség
Teljes
Port típusa
1Gb Fiber
Switching kapacitás
2
SFP port
2
Routing / Switching
Layer 2
Portok száma
1
Rack-be szerelhető
Van
Menedzselhető
Van
PoE (Power over Ethernet)
Nincs
VLANs
256
Garancia
60 hónap
Esztétikai besorolás
Bontatlan
Gyártó
DLINK
EAN
790069467707
Termék állapota
Új
Tömeg
1,4912 kg/db
Részletek

Technical Specifications:

D-Link DGS-1210 Specificatins
  DGS-1210-10 DGS-1210-20 DGS-1210-28 DGS-1210-52
General
Number of Ports
  • 8 10/100/1000 Mbps
  • 2 SFP
  • 16 10/100/1000 Mbps
  • 4 SFP
  • 24 10/100/1000 Mbps
  • 4 SFP
  • 48 10/100/1000 Mbps
  • 4 SFP
Port Standard & Functions
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX (Fast Ethernet)
  • IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
  • IEEE 802.3x Flow Control for Full-Duplex Mode
  • Auto-negotiation
Network Cables
  • UTP Cat. 5, Cat. 5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
  • Full/half duplex for 10/100 Mbps speeds
  • Full duplex for Gigabit speed
Media Interface Exchange Auto or configurable MDI/MDIX
Performance
Switching Capacity 20 Gbps 40 Gbps 56 Gbps 104 Gbps
Transmission Method Store-and-forward
MAC Address Table 16,000 entries per device
MAC Address Update
  • Up to 256 static MAC entries
  • Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate 14.88 Mpps 29.8 Mpps 41.7 Mpps 77.4 Mpps
Packet Buffer Memory 1.5 MB 1.5 MB 1.5 MB 3.0 MB
Physical & Environmental
AC Input 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption 13.59 W 16.09 W 22.45 W 38.27 W
Standy Power Consumption 9.3 W/110 V, 9.4 W/240 V 8.59 W/110 V, 8.80 W/240 V 17.65 W/110 V, 17.84 W/240 V 29.44 W/110 V, 29.49 W/240 V
Fan Quantity 0 0 0 Two smart fans
Acoustics 0 dB(A) 0 dB(A) 0 dB(A) Low speed: 39.8 dB(A) High speed: 49.2 dB(A)
Heat Dissipation 46.37 BTU/hr 54.91 BTU/hr 76.55 BTU/hr 130.58 BTU/hr
Operating Temperature 23 to 122 °F (-5 to 50 °C)
Storage Temperature -4 to 158 °F (-20 to 70°C)
Operating Humidity 0% to 95% non-condensing
Storage Humidity 0% to 95% non-condensing
Dimensions (W x D x H) 11.02 x 4.96 x 1.73 inches (280 x 126 x 44 mm) •
19” standard rack mounting width, 1U height		 11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)
19” standard rack mounting width, 1U height		 17.32 x 5.51 x 1.73 inches (440 x 140 x 44 mm)
19” standard rack mounting width, 1U height		 17.32 x 8.27 x 1.73 inches (440 x 210 x 44 mm)
19” standard rack mounting width, 1U height
Weight 3.39 lbs (1.54 kg) 2.82 lbs (1.28 kg) 3.68 lbs (1.67 kg) 5.69 lbs (2.58 kg)
Diagnostic LEDs
  • Power (per device)
  • Link/Activity/Speed (per 10/100/1000 Mbps port)
  • Link/Activity/Speed (per SFP port)
  • Power (per device)
  • Link/Activity/Speed (per 10/100/1000 Mbps port)
  • Link/Activity/Speed (per SFP port)
  • Fan (per device)
MTBF 360,844 hours 317,412 hours 540,000 hours 481,624 hours
Certifications
  • FCC Class A
  • CE Class A
  • ICES-003
  • VCCI Class A
  • C-Tick
  • BSMI
Safety
  • cUL
  • CE LVD
Software Features
L2 Features
  • MAC Address Table
    • 16,000 entries
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • IGMP Snooping
    • IGMP v1/v2 Snooping
    • Supports 256 IGMP groups
    • Supports at least 64 static multicast addresses
    • IGMP per VLAN
    • Supports IGMP Snooping Querier
  • Loopback Detection
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
  • 802.3ad Link Aggregetion
    • DGS-1210 28/28P: Maximum of 14 groups/8 ports per group
    • DGS-1210 52/52MP: Maximum of 26 groups/8 ports per group
    • DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
  • LLDP
  • LLDP-MED
  • Jumbo Frame
    • Up to 9,216 bytes
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Port Mirroring
    • One-to-One
    • Many-to-One
    • Supports Mirroring for Tx/Rx/Both
  • Multicast Filtering
    • Forwards all unregistered groups
    • Filters all unregistered groups
  • Configurable MDI/MDIX
    • MLD snooping v1/v2 (256 groups)
VLAN
  • 802.1Q
  • VLAN Group
    • Max 256 static VLAN groups
    • Max 4094 VIDs
  • Management VLAN
  • Asymmetric VLAN
  • Auto Voice VLAN
    • Max. 10 user defined OUI
    • Max. 8 default OUI
  • Auto Surveillance VLAN
QoS (Quality of Service)
  • 802.1p Quality of Service
  • 8 Queues per port
  • Queue Handling
    • Strict
    • Weighted Round Robin (WRR)
  • Bandwidth Control
    • Port-based (Ingress/Egress, min. granularity 64 Kb/s)
  • QoS based on:
    • 802.1p Priority Queues
    • DSCP
    • ToS
    • IPv6 Traffic Class
    • TCP/UDP port
L3 Features
  • IP Interface
    • Supports 1 interface
  • IPv6 Neighbor Discovery (ND)
Access Control List
  • Max. 50 access list
  • Max. 768 rules shared by IPv4, MAC and IPv6
  • Each rule can only be associated with a single port
  • ACL based on
    • 802.1p priority
    • VLAN
    • MAC address
    • Ether type
    • IP address
    • DSCP
    • Protocol type
    • TCP/UDP port number
    • IPv6 Traffic Class
Security
  • Broadcast/Multicast/Unicast Storm Control
  • D-Link Safeguard Engine
  • DHCP Server Screening
  • IP-MAC-Port Binding (Smart Binding)
    • Supports 512 address binding entries
    • ARP Inspection
    • ARP + IP Inspection
    • Supports DHCP Snooping
  • 802.1X Port-based Access Control
  • ARP Spoofing Prevention
    • Max. 64 entries
  • Traffic Segmentation
  • SSH v2
  • SSL
    • Supports v1/v2/v3
  • Port Security
    • Supports up to 64 MAC addresses per port
  • Duplicate address detection
AAA
  • 802.1X Authentication
    • Supports local/RADIUS database
    • Supports port-based access control
    • Supports EAP, OTP, TLS, TTLS, PEAP
    • IPv6 RADIUS Server
    • Support MD5 authentication
OAM
  • Cable Diagnostics
  • Factory Reset
MIB/RFC Standards
  • RFC 783 TFTP
  • RFC 951 BootP/DHCP Client
  • RFC 1157 SNMP v1, v2, v3
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1350 TFTP
  • RFC 1493 Bridge MIB
  • RFC 1769 SNTP
  • RFC 1542 BootP/DHCP Client
  • RFC 1901 SNMP v1, v2, v3
  • RFC 1907 SNMP v2 MIB
  • RFC 1908 SNMP v1, v2, v3
  • RFC 2131 BootP/DHCP Client
  • RFC 2138 RADIUS Authentication
  • RFC 2139 RADIUS Authentication
  • RFC 2233 Interface Group MIB
  • RFC-2246 SSL
  • RFC 2475
  • RFC 2570 SNMP v1, v2, v3
  • RFC 2575 SNMP v1, v2, v3
  • RFC 2598 CoS
  • RFC 2618 RADIUS Authentication
  • RFC 2819 RMON v1
  • RFC 2865 RADIUS Authentication
  • RFC 3164 System Log
  • RFC 3195 System Log
  • RFC 3411-17 SNMP
  • D-Link Private MIB
  • LLDP MIB
  • Zone Defense MIB
  • 2233 Interface Group MIB
Management
  • Web-based GUI
  • D-Link Network Assistant Utility
  • Compact CLI
  • Telnet Server
  • TFTP Client
  • Configurable MDI/MDIX
  • SNMP
    • Supports v1/v2c/v3
  • SNMP Trap
  • Backup/Upgrade firmware
  • Smart Wizard
  • Upload/Download Configuration file
  • System Log
    • Max. 500 log entries
  • BootP/DHCP Client
  • SNTP
  • ICMP v6
  • IPv4/v6 Dual Stack
  • DHCP Auto Configuration
  • Time Setting
    • SNTP
  • RMONv1
  • Trusted Host
D-Link Green 3.0 Technology
  • Power Saving by:
    • Link Status
    • Time-based PoE: PoE ports can be turned on/off by port or system through schedule
    • LED Shutoff
    • System Hibernation
    • Port Shutoff
