| Article no. |
CW-01B-OP |
| EAN code |
0753263076977 |
| Color |
Black |
| Material |
0.7mm SPCC |
| Motherboard support |
Mini ITX, mATX, ATX |
| Dimension (DxWxH) |
490mm x 210mm x 471mm (stand +21mm) |
| Weight (without/with package) |
6.8 kg / 7.8 kg |
| Drive bay external |
3x 5.25” and 1x 3.5” |

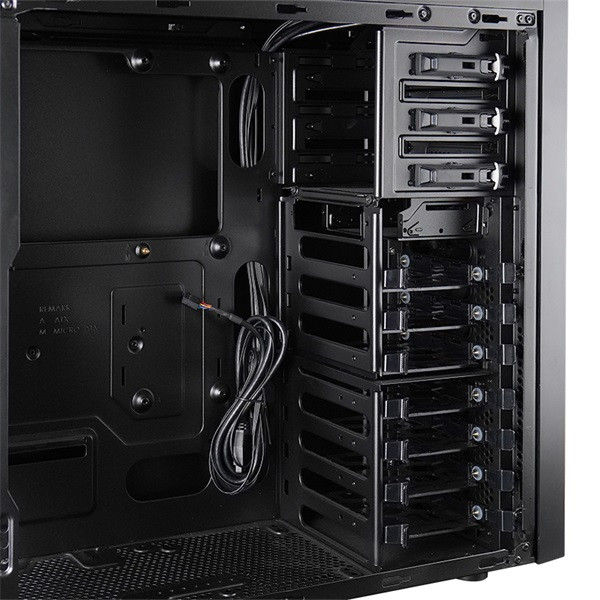

| Drive bay internal |
7x 3.5” or 7x 2.5” |
| Power supply |
ATX PSU (optional) |

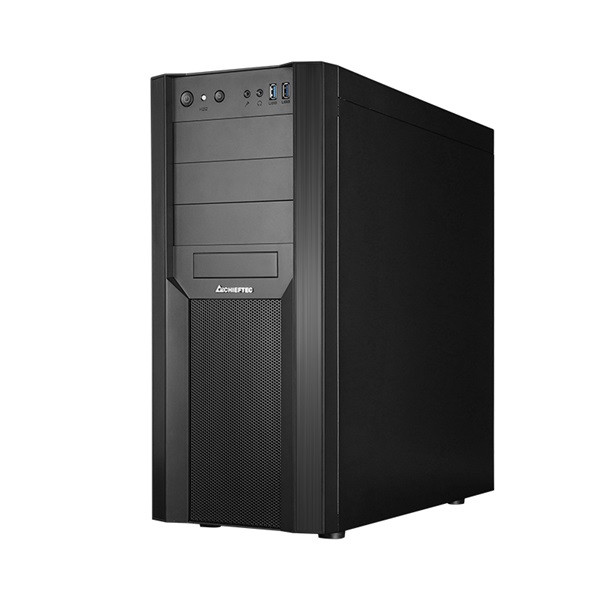

| Front I/O |
2x USB3.0 (USB3.1 Gen 1), Audio-out (AZALIA / HD-Audio), Mic-In |
| Scope of delivery |

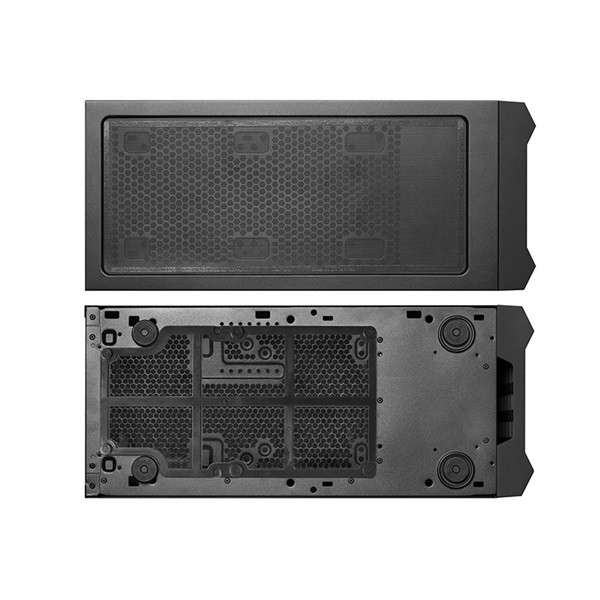

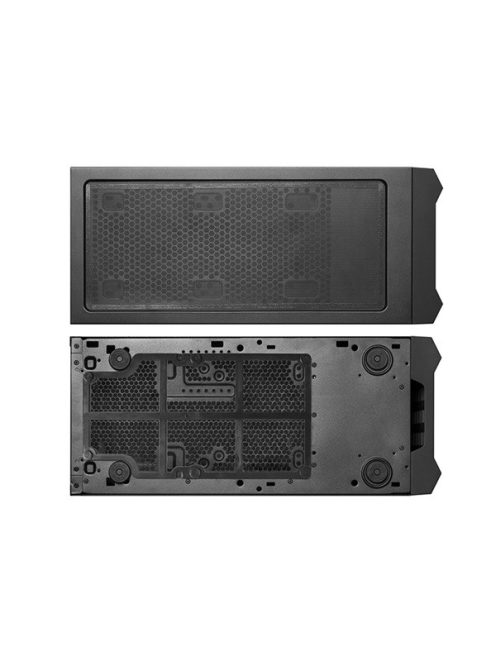

Screw set, Tool-less installation kit, front dust filter, 2x magnetic dust filters (top & bottom) |

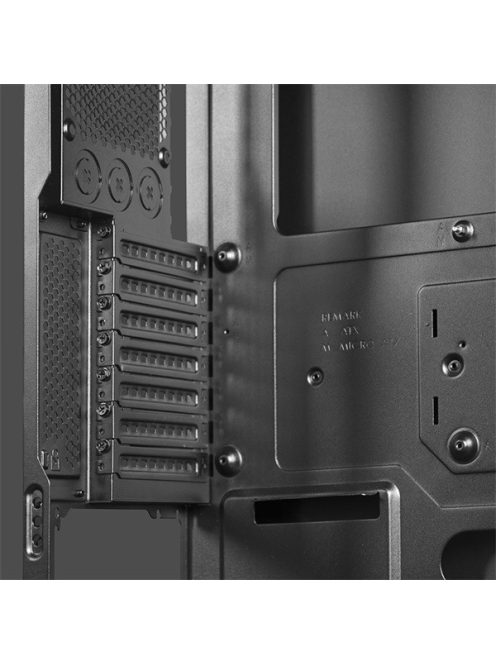

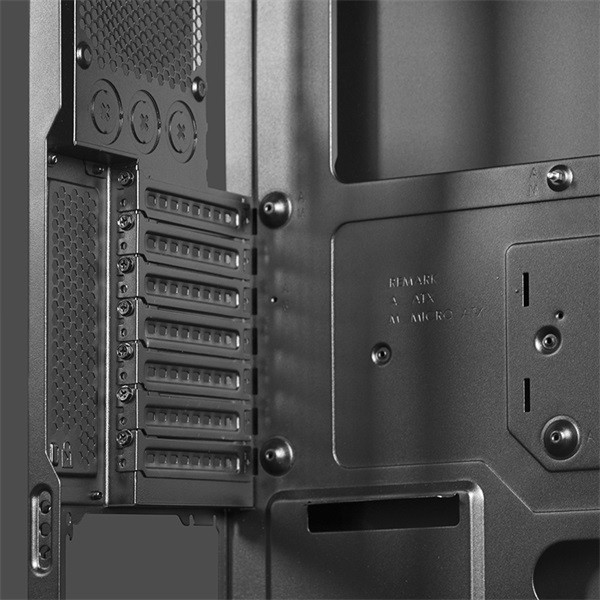

| Expansion slots |
7 |
| Cooling Compatibility |
Front: 2x 120mm fans
Rear: 1x 120mm fan
Top: 2x 120mm/140mm fans or up to 280mm radiator
(use of 280mm radiator blocks first ODD drive)
Bottom: 1x 120mm or 140mm fan (depending on PSU length) |
| CPU cooler height (max.) |
165mm |
| VGA card length (max.) |
270 mm (410mm if middle HDD cage removed) |
| Warranty |
24 Months |
