Model

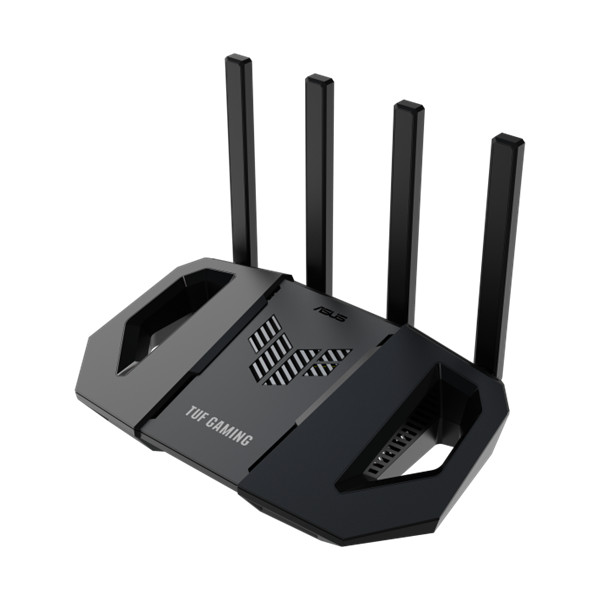

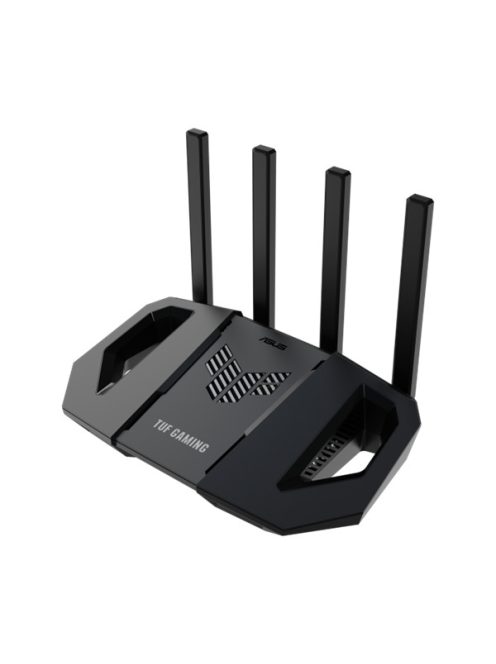

TUF Gaming BE3600 (TUF-BE3600)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE3600 ultimate BE performance : 688+2882 Mbps
WiFi Data Rate
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
Processor
2.0 GHz quad-core processor
Memory
256 MB Flash
1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4GHz / 5GHz
2.4 GHz
5 GHz
Operating Mode
Wireless router mode
Access point mode
Media bridge mode
I/O Ports
RJ45 for 2.5 Gigabits BaseT for WAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
Buttons
WPS Button, Reset Button, Power Button
LED Indicator
Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1
Power Supply
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current
Package Content
TUF Gaming BE3600 Dual Band WiFi 7 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
561g
Product Dimensions
274 x 168 x 205 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
Game Boost / Acceleration
Mobile Game Mode
Parental Control
"Allow you to block access to unwanted websites and apps."
Safe Browsing
Customized Internet Schedule
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Security
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
