Model

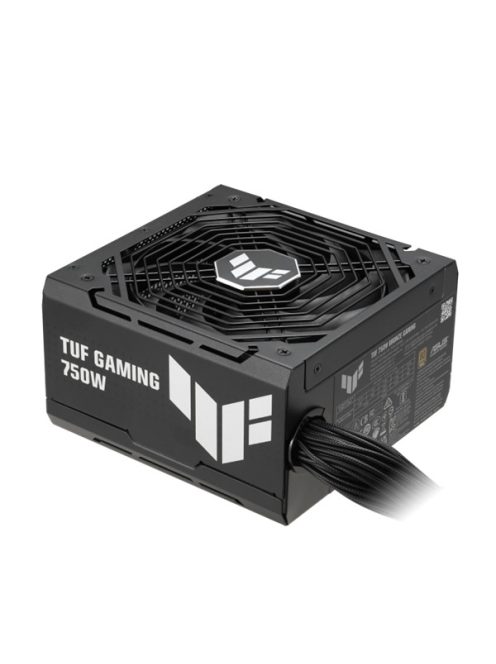

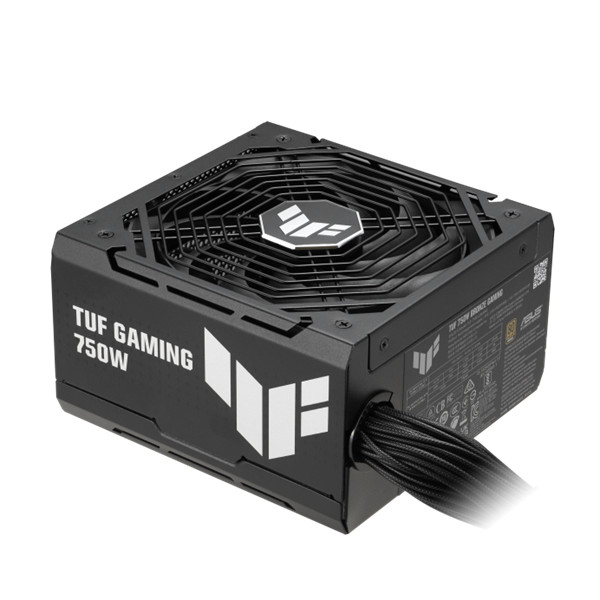

TUF Gaming 750W Bronze
Intel Specification
ATX12V
PFC Type
Active PFC
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Bronze
MTBF
>120,000 hrs @ 40°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 62A 0.8A 3A
Combined Load
130W 130W 744W 9.6W 15W
Total Output
750W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 4
SATA x 4
Periplheral x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1
CPU Cable 800mm x 2
PCI-E Cable x 2
SATA Cable x 1
Peripheral Cable x 1
Weight
Single PSU : 2.18KG
Product Weight (with packing) : 2.87KG
0dB Technology
No
0dB Fan Button
No, this product is without 0dB technology.
