Model

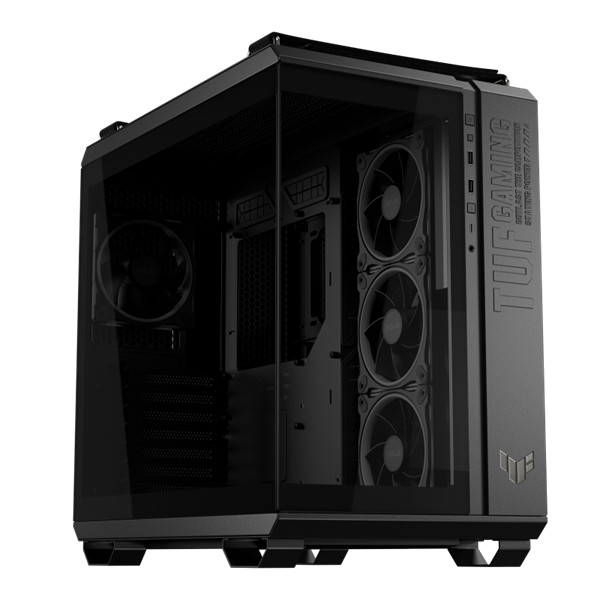

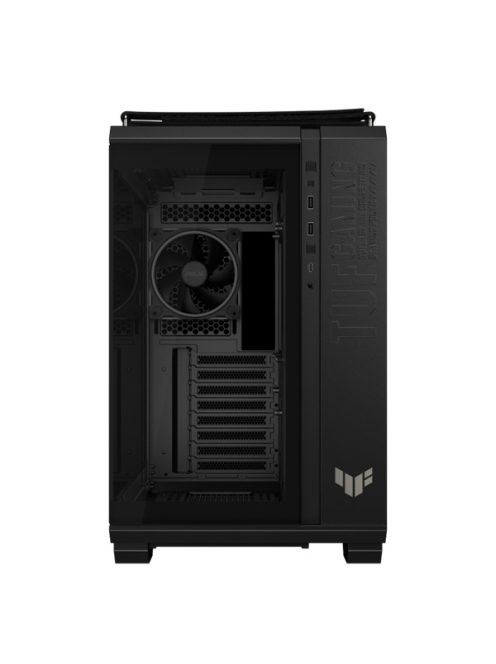

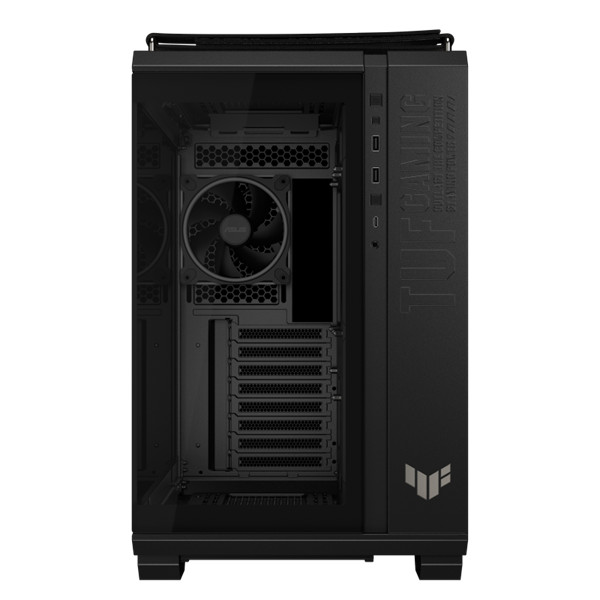

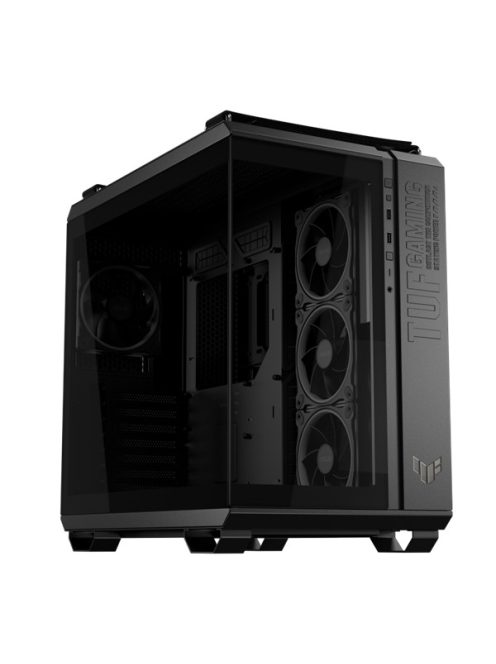

TUF Gaming GT502 Horizon ARGB
Case Size
Mid Tower
Motherboard Support
ATX
Micro-ATX
Mini-ITX
Drive Bays
4 x 2.5"/3.5" Combo Bay
Expansion Slots
8
3 (additional vertical)
Front I/O Port
1 x headphone / Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen 2x2
LED Control Button
1 x USB 3.2 Gen 2x2 Type C
Tempered Glass
Front Side
Left Side
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
Cooling Support (Top)
3 x 120 mm
2 x 140 mm
Cooling Support (Rear)
1 x 120 mm
Pre-installed Fans (Rear)
1 x 120 mm
Pre-Installed Fan (Side)
3 x 120 mm
Maximum CPU Cooler Height
163 mm
Maximum GPU Length
400 mm
Maximum PSU Length
200 mm
Removable Dust Filters
Top
Bottom
Right
Dimensions
285 x 450 x 446 mm
Weight
11.9 Kg
Accessory
preinstall ARGB Fan hub
